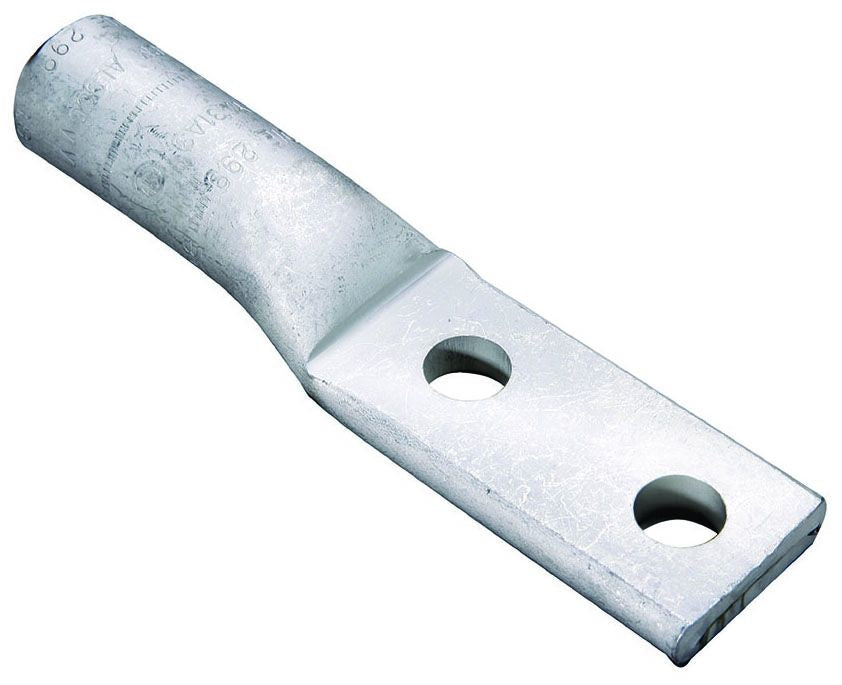

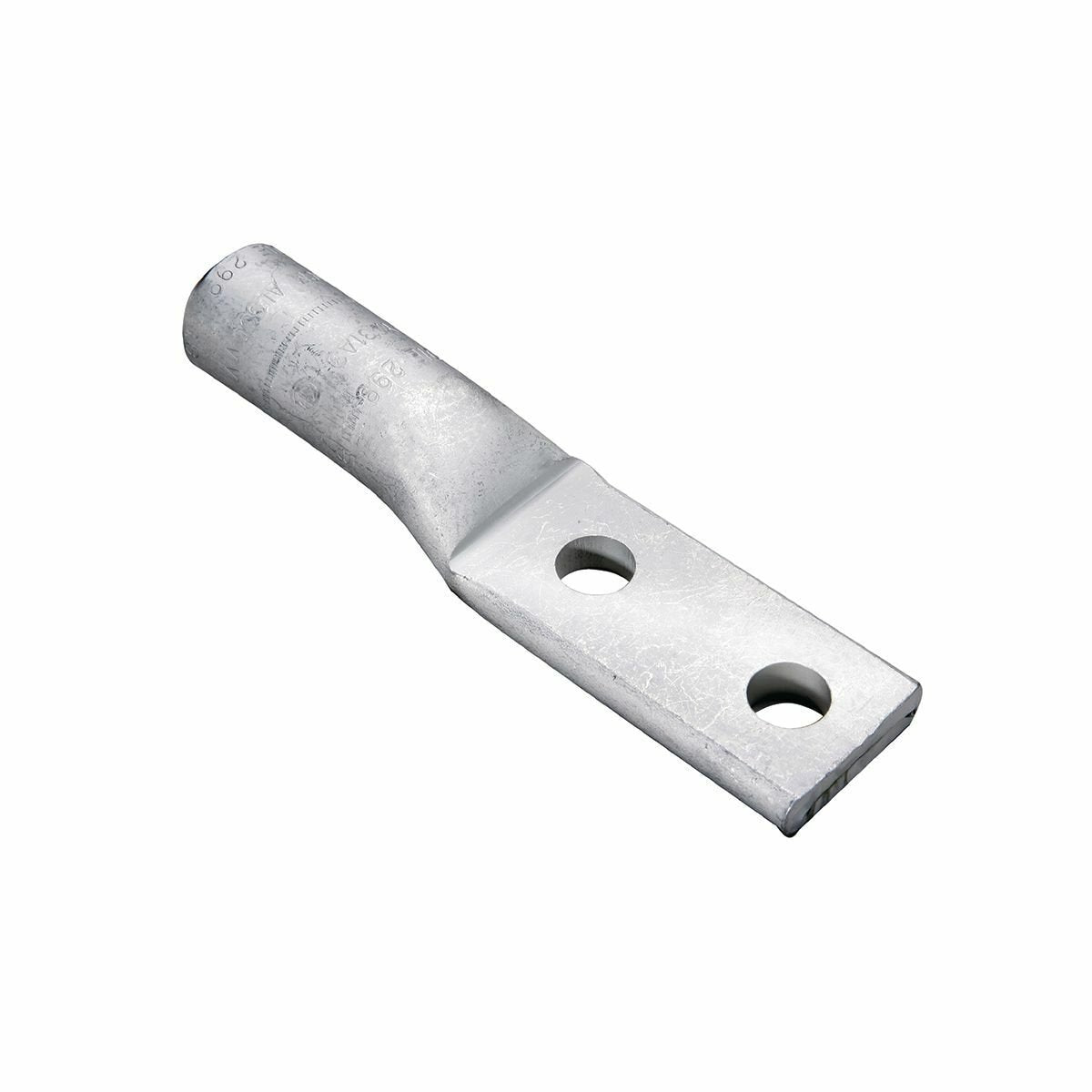

BURNDY YA27A5 3/0 AWG, AL Terminal, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, AL9CU

Product Description

The BURNDY YA27A5 terminal connector is designed for effective wire termination in electrical applications. It features a two-hole design suitable for 3/0 AWG conductors made from aluminum and copper. This product includes various specifications making it ideal for professional use.

• Voltage rating up to thirty-five kilovolts
• UL Listed for safe use up to ninety degrees Celsius
• Made in the USA ensuring high-quality standards

Product Highlights

This terminal is built to provide reliable connections in different electrical systems.

Product Information

Standard Information

• Catalog Number: YA27A5
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum, Electro Tin Plated
• Application: Wire Termination
• Voltage Rating: 35 kV
• Pad Size: 1.04 inches width x 0.26 inches thickness
• Number of Pad Holes: 2
• Pad Hole Spacing: 1.75 inches
• Stud Size: 1/2 inch
• Temperature Rating: 90°C
