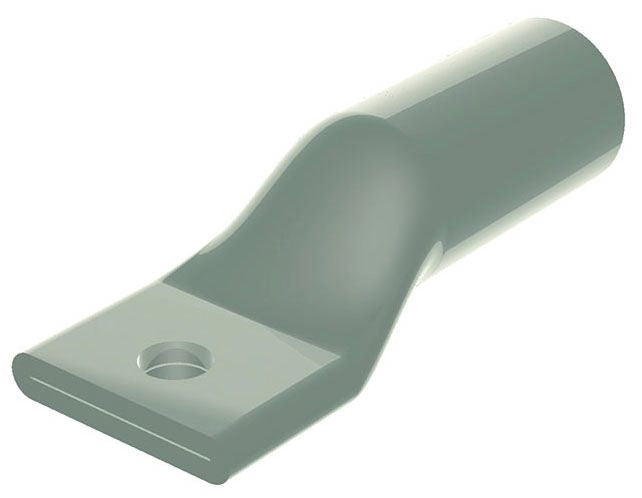

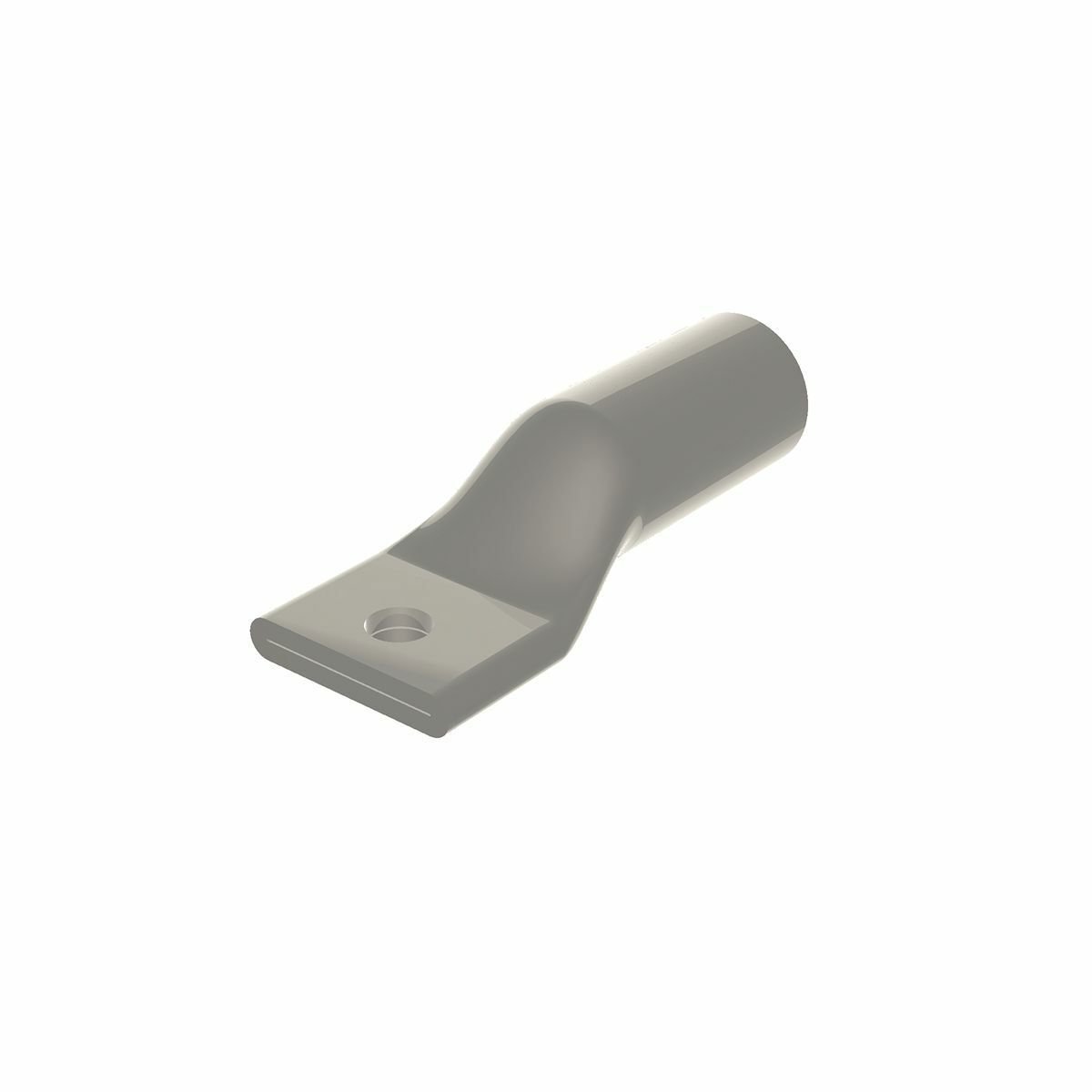

BURNDY YA27A3 3/0 AWG, AL Terminal, One Hole, 1/2 Stud Size, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX?, End Cap, UL/CSA, 90?C, Up to 35kV, Ruby Color Code, 467 Die Index

Product Description

The BURNDY YA27A3 is a 3/0 AWG aluminum terminal designed for heavy-duty applications. It is suitable for both aluminum and copper conductors, ensuring a reliable wire termination solution. This terminal features tin plating and is prefilled with PENETROX oxide inhibitor for optimal conductivity.

• Designed for use with both aluminum and copper conductors
• Rated for voltages up to thirty-five kilovolts
• Prefilled with PENETROX for corrosion resistance

Product Highlights

This terminal is a dual-rated compression lug known for its durability and long-lasting performance. It includes a color-coded end cap to prevent contamination and meets UL486B requirements for safe usage.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YA27A3
• Application: Wire Termination
• Material: Aluminum
• Voltage Rating: 35 kV
• Country of Origin: United States
• Made in USA: Yes
• Overall Length: 3.27 inches
• Barrel Length: 1.31 inches
• Stud Size: 1/2 inches
