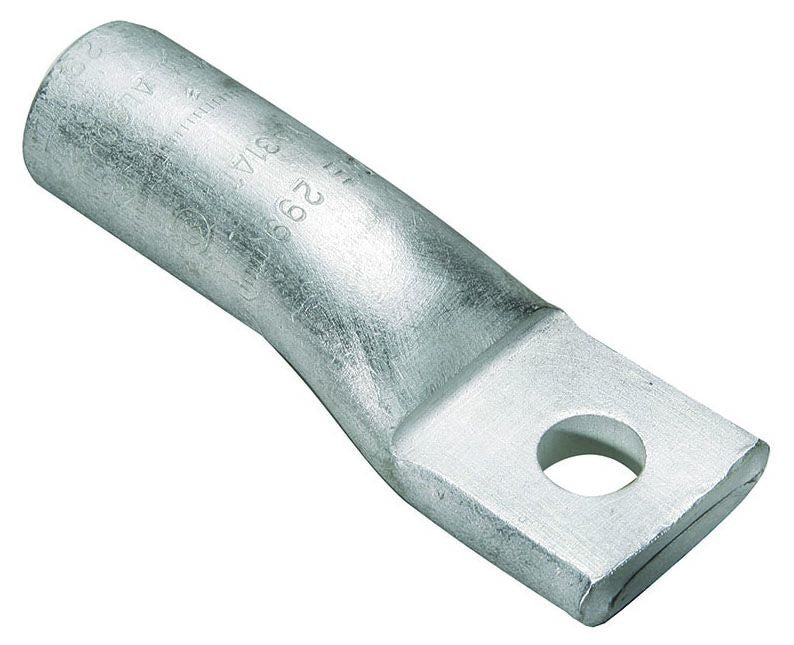

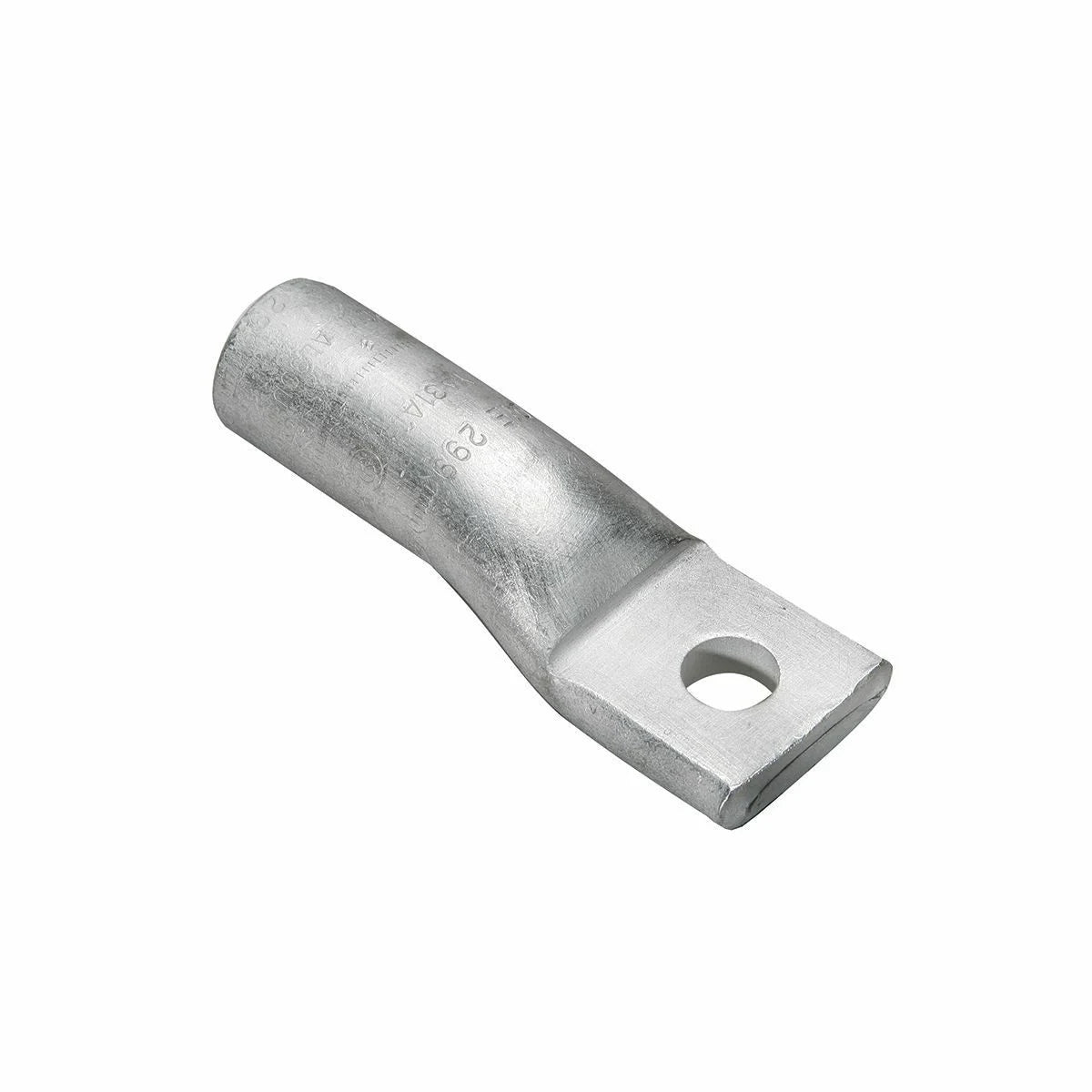

Burndy YA27A1 3/0 AWG AL Terminal One Hole 3/8 Stud Size AL9CU Internal Chamfer Tin Plated Prefilled PENETROX End Cap UL/CSA 90C Up to 35kV Ruby Color Code 467 Die Index

Product Description

The Burndy YA27A1 is a 3/0 AWG aluminum terminal designed for one-hole connections. This terminal features a three-eighths inch stud size and is suitable for use with both aluminum and copper conductors, supporting voltages up to thirty-five kV. It is prefilled with PENETROX oxide inhibitor for enhanced performance and reliability.

• Dual-rated for use with aluminum and copper conductors.
• Prefilled with PENETROX oxide inhibitor for corrosion resistance.
• Meets UL486A-486B standards for electrical connections.

Product Highlights

This terminal is made from aluminum and electro-tin plated for durable corrosion protection. It is designed for heavy-duty applications with a tough wall thickness, ensuring maximum conductivity and low resistance.

Product Information

Standard Information

• Catalog Number: YA27A1
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: Burndy
• Sub Brand: HYLUG

Technical Specifications

• Application: Wire Termination
• Material: Aluminum
• Voltage Rating: 35 kV
• Special Features: Color-coded end caps for easy identification
• Country of Origin: United States
• UPC: 781810753750
• GTIN: 00781810753750
• Cross Reference Products: AL3/0-38
