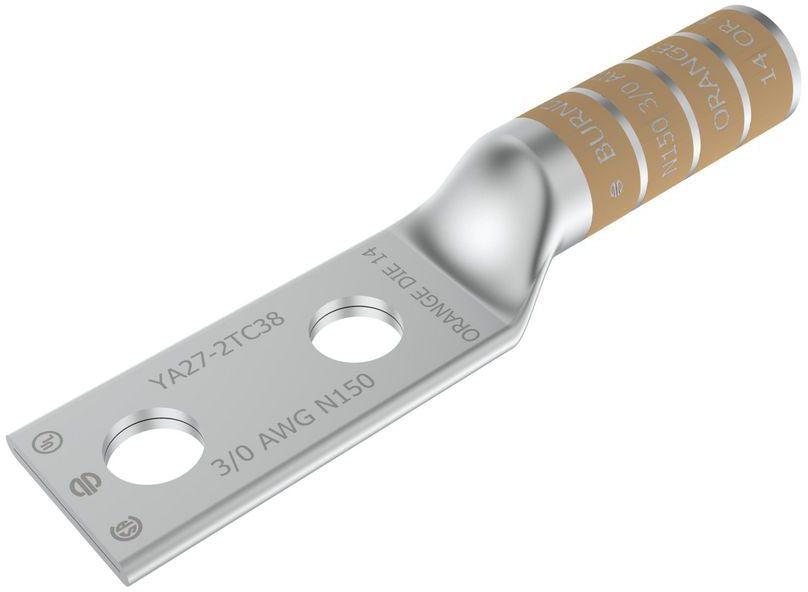

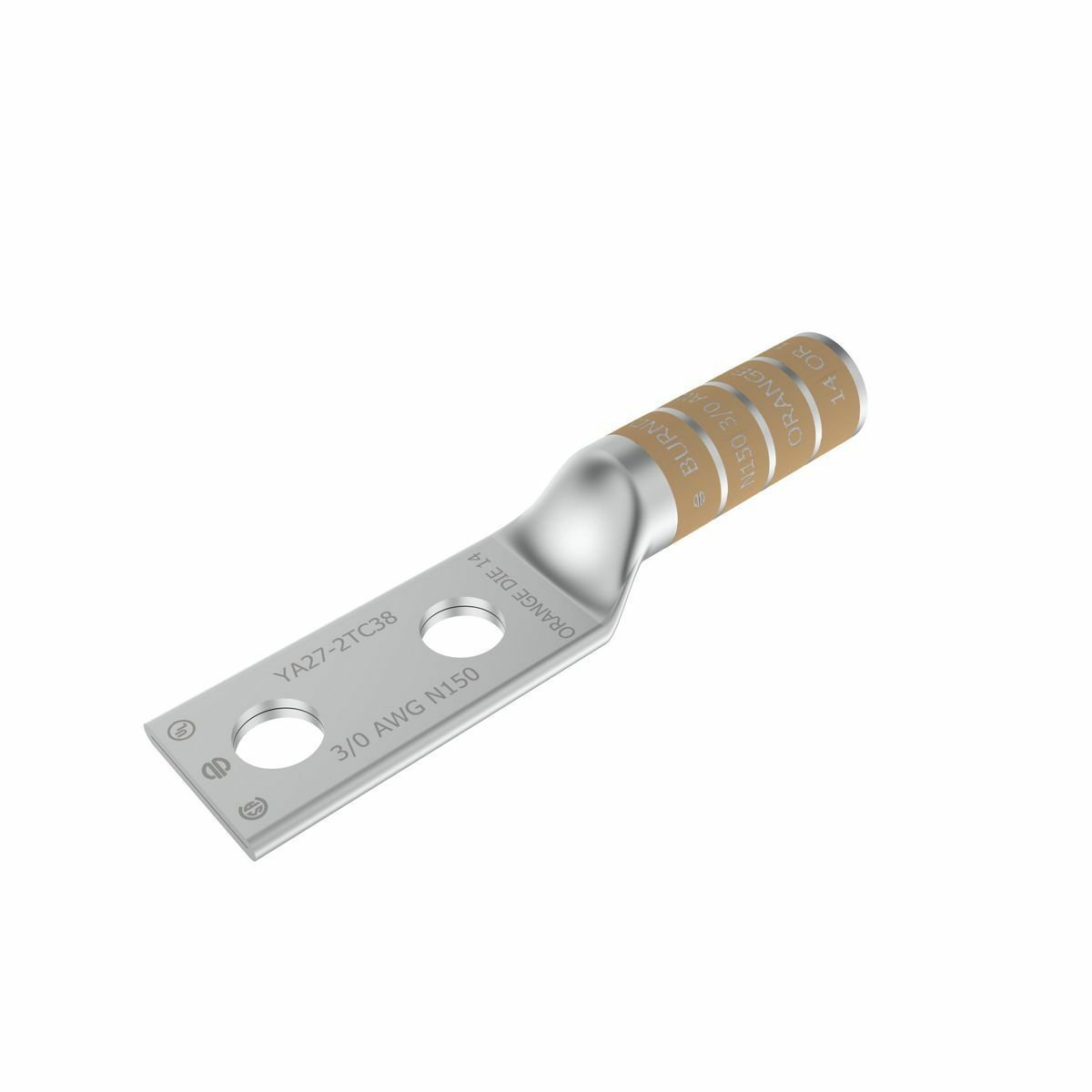

Burndy YA272TC38 3/0 AWG CU Two Hole Compression Lug 35kV

Product Description

Burndy YA272TC38 is a compression cable lug suitable for wire termination applications. This product supports conductor sizes of three aught AWG and is designed for heavy-duty performance up to thirty-five kilovolts. It features a long barrel design with internal chamfer for easier installation.

• Voltage rating of 600 volts to 35 kilovolts
• Made of copper with electro-tin plating
• UL and CSA approved for safety

Product Highlights

This cable lug is essential for secure connections in electrical installations. Its high-temperature rating and robust construction make it reliable for industrial use.

Product Information

Standard Information

• Catalog Number: YA272TC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Application: Wire Termination
• Die Index: 14
• Conductor Type: Commercial Stranded Copper
• Length: 3.82 inches
• Pad Size: 0.9 inches width x 0.12 inches thickness
• Pad Hole Spacing: 1 inch
• Temperature Rating: 90 degrees Celsius
• Country of Origin: United States
