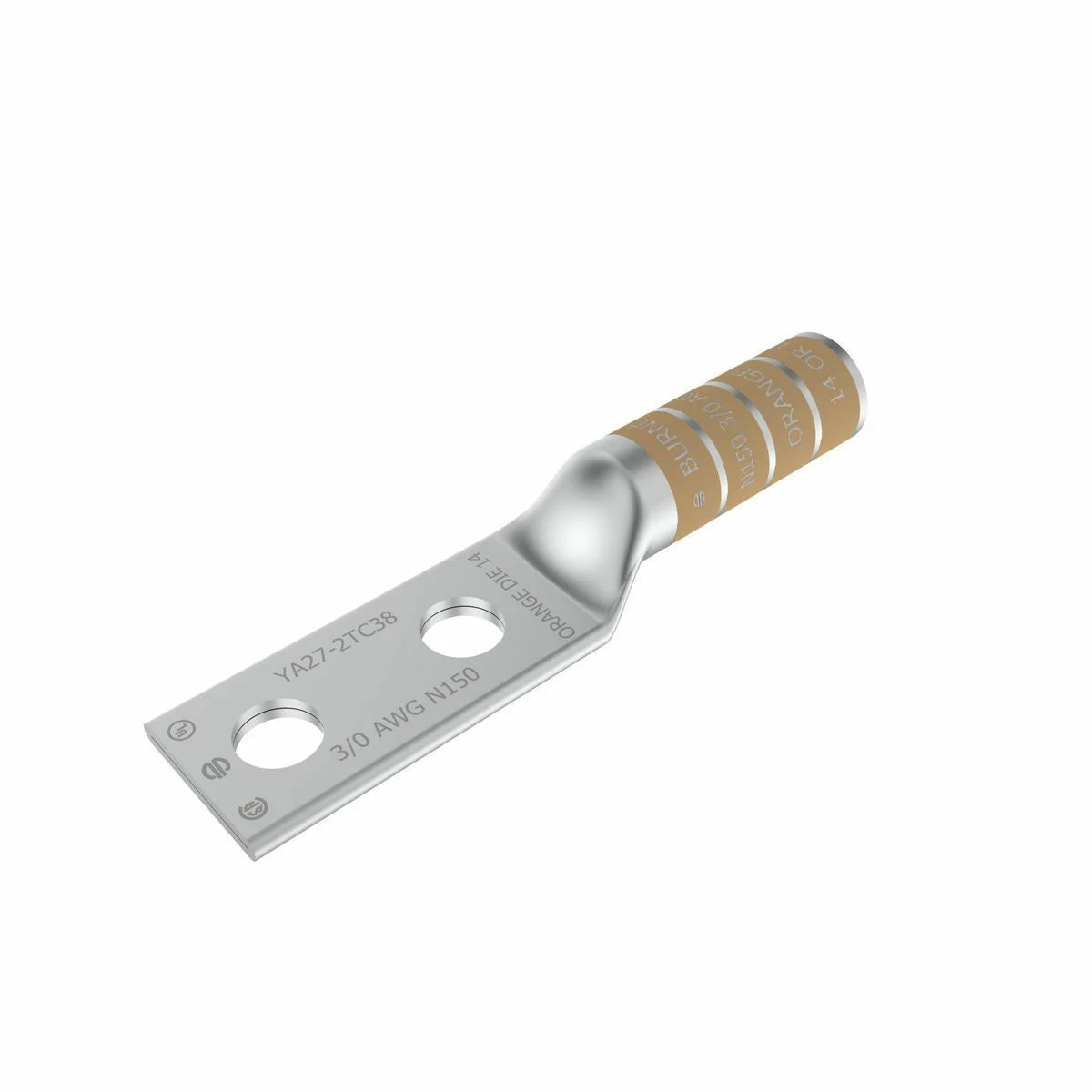

BURNDY YA272N Compression Cable Lug 35kV 3/0 AWG 2-Hole 1-3/4 Hole Spacing

Product Description

The BURNDY YA272N is a compression cable lug designed for electrical wire termination. It fits conductor sizes up to 3/0 AWG and is suitable for applications requiring up to thirty-five kilovolt voltage rating.

• UL and CSA approved for safety standards.
• Features a long barrel design for easy wire insertion.
• Made from copper with a tin plating to improve durability.

Product Highlights

This compression lug enables efficient wire connections for various electrical projects. It features a chamfered entry for easier wire placement and a voltage rating of up to thirty-five kilovolt.

Product Information

Standard Information

• Brand: BURNDY
• MPN: YA272N

Technical Specifications

• Catalog Number: YA272N
• Material: Copper
• Voltage Rating: 35 kV
• Wire Strip Length: 1-9/16 inches
• Temperatures Rating: 90 degrees Celsius
• Die Index: 14
• Pad Hole Spacing: 1-3/4 inches
• Pad Size: 0.91 inches width x 0.13 inches thickness
