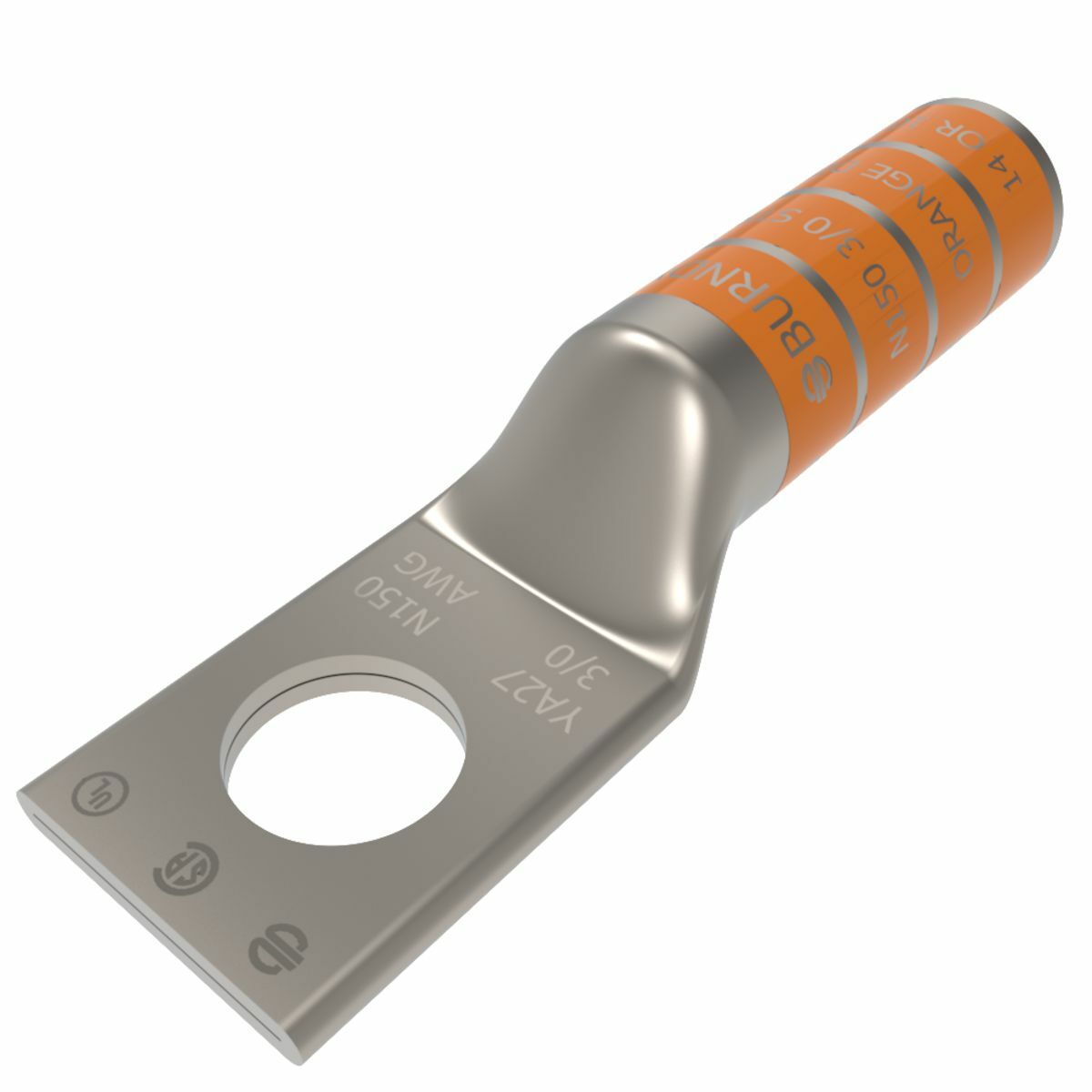

BURNDY YA27 Compression Cable Lug 600V 35kV 3/0 AWG CU One Hole 1/2 Stud Size

Product Description

The BURNDY YA27 is a compression cable lug designed for reliable wire termination. This product features a voltage rating of six hundred volts to thirty-five kilovolts, suitable for various applications. Additionally, the lug is UL and CSA listed, ensuring compliance with safety standards.

• Conductor size: 3/0 AWG stranded copper
• Long barrel type with internal chamfer
• Temperature rating of ninety degrees Celsius

Product Highlights

Reliable for wire termination in electrical systems. Ideal for both residential and commercial electrical installations.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810503102

Technical Specifications

• Catalog Number: YA27
• Material: Copper
• Application: Wire Termination
• Made in USA: Yes
• Country of Origin: United States
• Die Index: 14
• Voltage Rating: 35 kV
• Overall Length: 3.06 inches
• Barrel Length: 1.5 inches
• Pad Size: 0.91 inches width x 0.13 inches thickness
• Stud Size: 1/2 inch
• Wire Strip Length: 1-9/16 inches
• Finish: Electro-Tin Plated
• Standard: UL 486A-486B
