BURNDY YA26LBOX 2/0 AWG CU One Hole 3/8 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

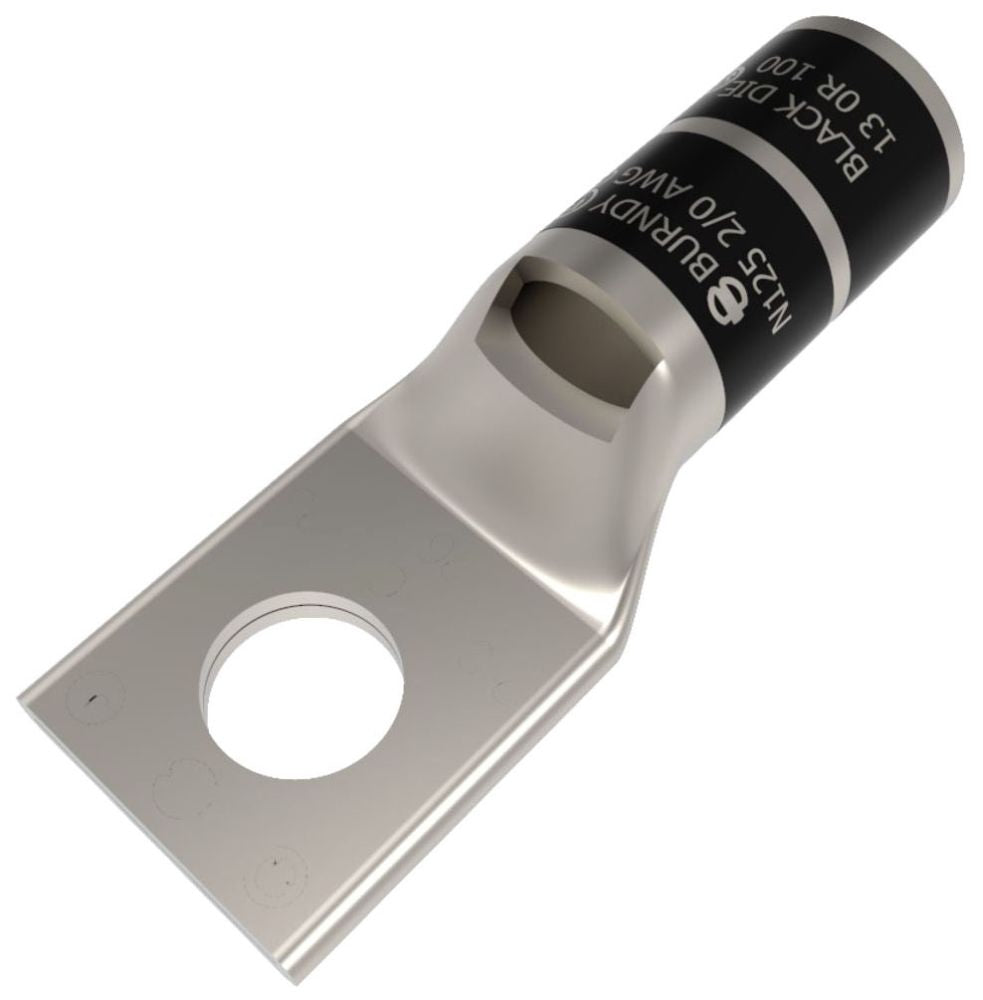

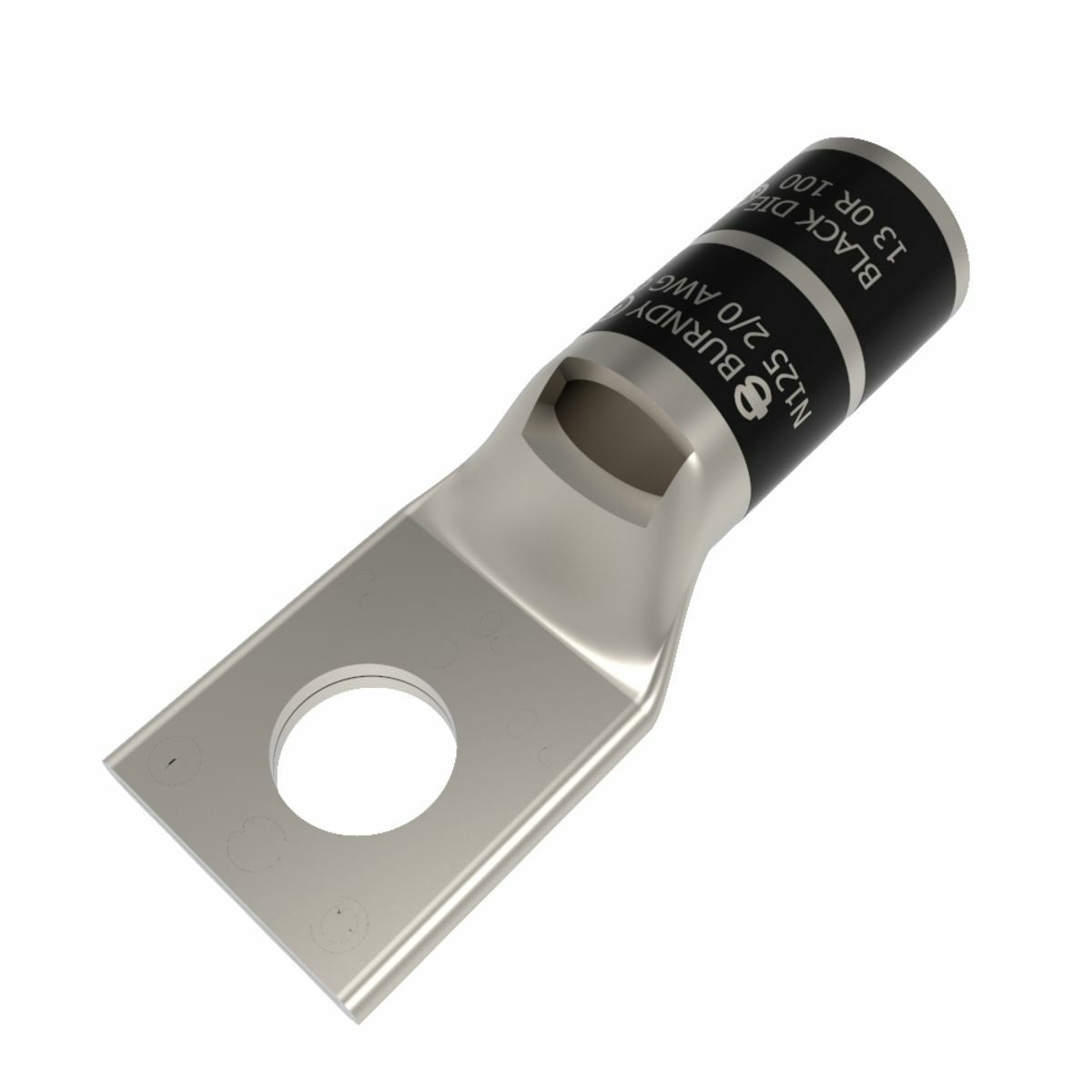

The BURNDY YA26LBOX is a compression cable lug designed for wire termination in electrical applications. It is constructed from copper and is suitable for use with 2/0 AWG stranded wires. This lug is tin plated for enhanced conductivity and durability. It features a one hole design with a stud size of three-eighths inches, making it compatible with various installation scenarios.

• Voltage Rating: 35 Kilovolt
• Barrel Type: Standard, Straight, Non-Insulated
• Temperature Rating: 90 Degrees Celsius

Product Highlights

This product is UL and CSA approved and includes an inspection window for easy verification of wire insertion. The chamfered, beveled entry aids in wire placement and reduces the chance of damage during installation.

Product Information

Standard Information

• Catalog Number: YA26LBOX
• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Material: Copper
• Special Features: UL Listed 90 Degrees Celsius, 600 V to 35 kV, with multiple tooling options available
• Die Index: 13
• Cross Reference Products: 54110
• Wire Strip Length: 1 inch
• Overall Length: 2.19 inches
• Barrel Length: 0.94 inches
• Stud Size: 3/8 inch
