BURNDY YA26L6BOX 2/0 AWG CU One Hole 1/2 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

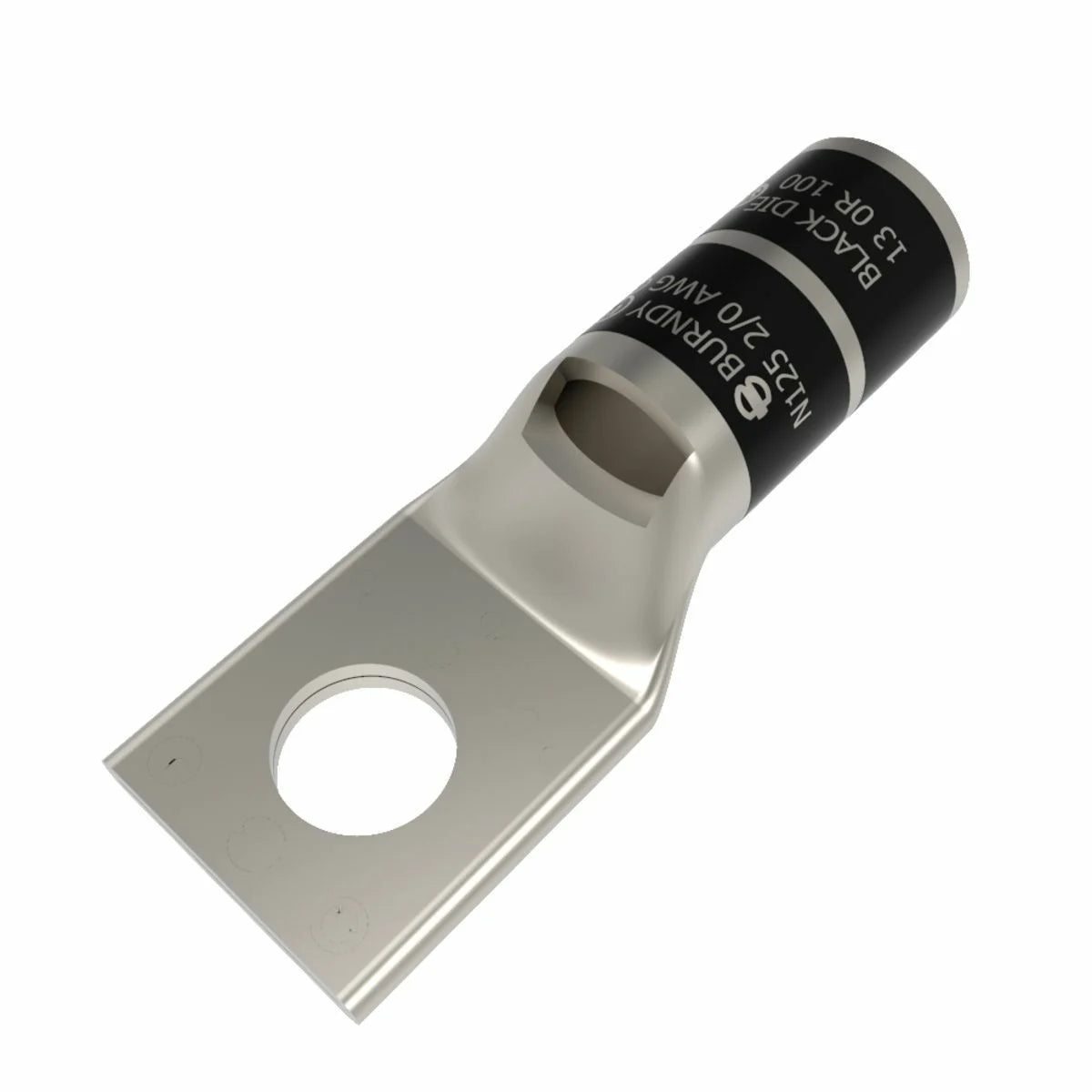

The BURNDY YA26L6BOX is a compression cable lug designed for efficient wire termination in electrical applications. Made from high-quality copper, this lug supports a voltage rating of up to thirty-five kilovolts. The internal chamfer and inspection window features ensure easy and reliable installation.

• For 2/0 AWG stranded copper conductors
• Standard barrel design with a 1/2 inch stud size
• UL listed for safety and compliance

Product Highlights

This cable lug is UL and CSA compliant, ensuring it meets industry safety standards. Its tin-plated finish provides added corrosion resistance.

Product Information

Standard Information

• Catalog Number: YA26L6BOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 Deg C
• Barrel Type: Standard
• Pad Size: 0.83 inches width x 0.12 inches thickness
• Wire Strip Length: 1 inch
• Die Index: 13
• Country of Origin: United States
