BURNDY YA26L2TC14 2/0 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing

Product Description

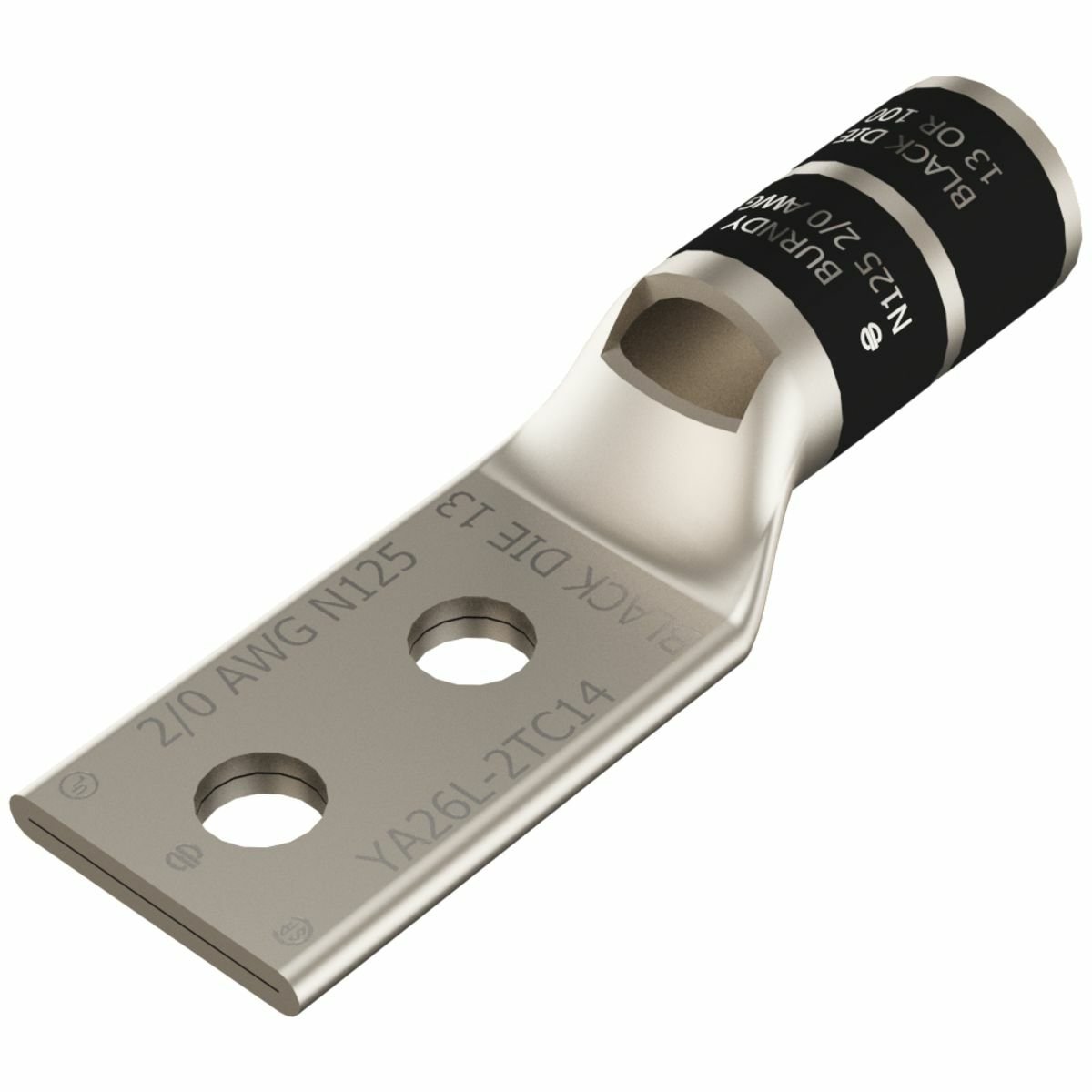

The BURNDY YA26L2TC14 is a compression cable lug designed for secure wire termination. This product is made from high-quality copper and is suited for 2/0 AWG stranded conductors. The lug features a standard barrel design with an inspection window for quality checks.

• Voltage Rating: Up to thirty-five kV.
• Temperature Rating: Ninety degrees Celsius.
• UL Listed and CSA approved for safety compliance.

Product Highlights

This compression cable lug is ideal for use in electrical applications where reliable connections are needed. Its heavy-duty build ensures longevity while meeting industry standards.

Product Information

Standard Information

• Brand: BURNDY
• Catalog Number: YA26L2TC14

Technical Specifications

• Material: Copper
• Application: Wire Termination
• Voltage Rating: 35 kV
• Stud Size: 1/4 Inch
• Pad Size: 0.83 Inch W x 0.12 Inch Thk
• Hole Spacing: 5/8 Inch
• Length: 2.64 Inches
• Finish: Electro-Tin Plated
