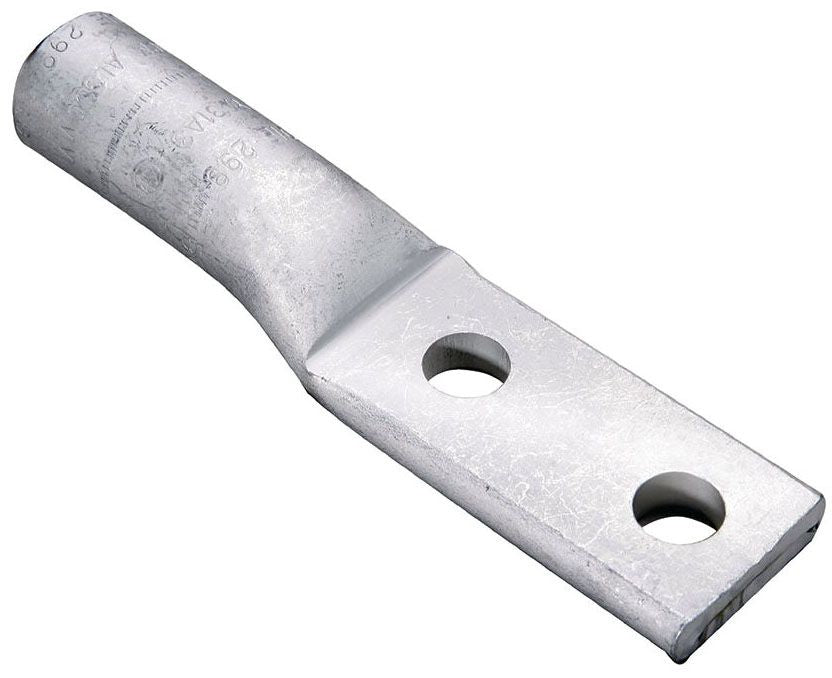

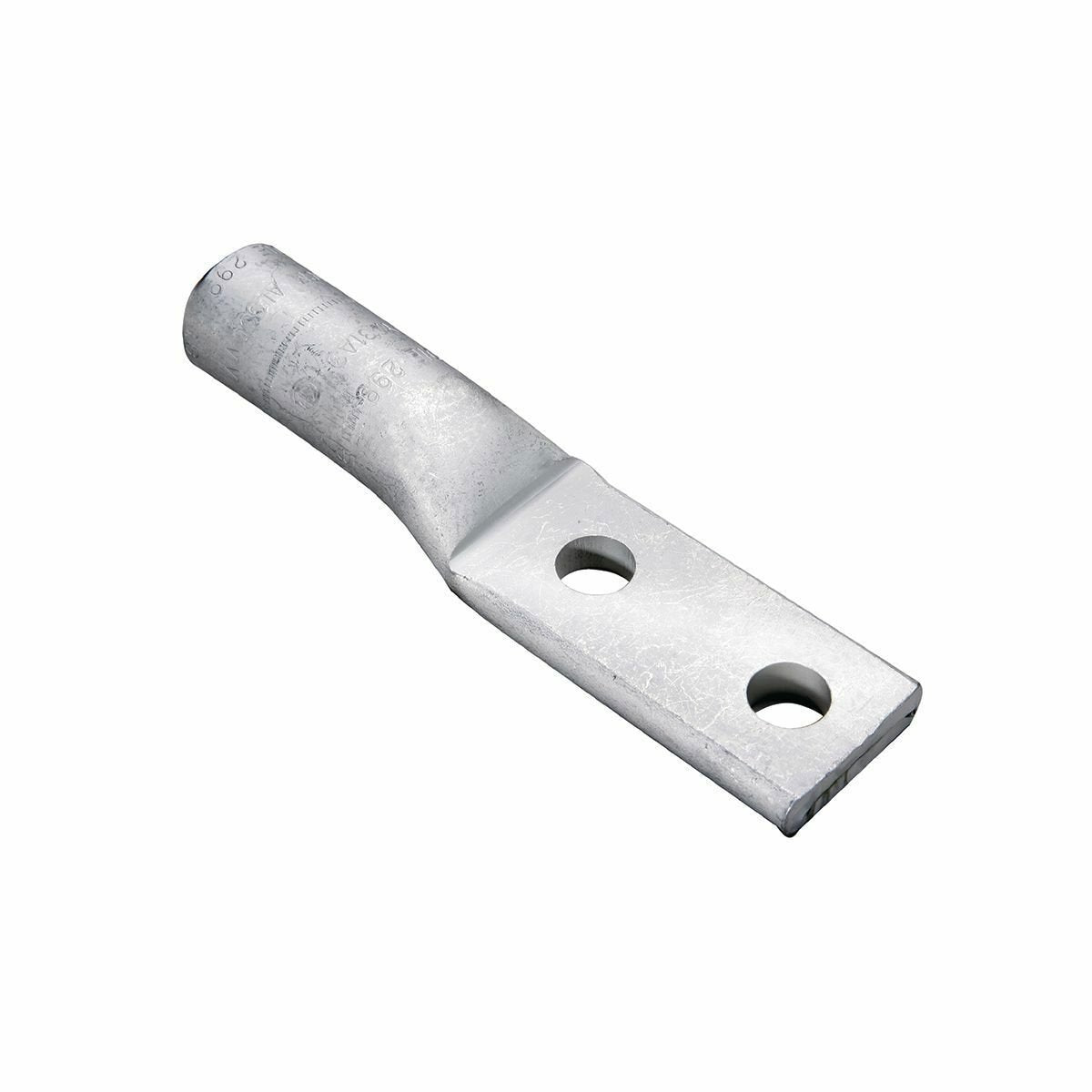

Burndy YA26A3 Cable Lug 2/0 AWG 1/2 Stud Size - UL/CSA

Product Description

The Burndy YA26A3 is a two-hole aluminum compression cable lug designed for efficient wire termination. This product is compatible with 2/0 AWG conductors and accommodates a 1/2 inch stud size. It is suitable for applications requiring a voltage rating of 600 Volts up to 35 kilovolts.

• UL listed for safety up to 90°C
• Constructed from aluminum with a tin plated finish
• Features internal chamfer for easy wire insertion

Product Highlights

The Burndy YA26A3 cable lug offers reliable performance for heavy duty electrical connections. It is an ideal choice for use in electrical systems where high current carrying capacity is necessary.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA26A3
• Material: Aluminum
• Voltage Rating: 35 kV
• Special Features: UL Listed 90°C, Tongue Angle: Straight
• Application: Wire termination
• Cross Reference Products: 60238
• UPC: 781810753507
