BURNDY YA26A1 2/0 AWG AL Terminal One Hole 1/2 Stud Size AL9CU Internal Chamfer Tin Plated Prefilled PENETROX End Cap UL/CSA 90C Up to 35kV Olive Color Code 297 Die Index

Product Description

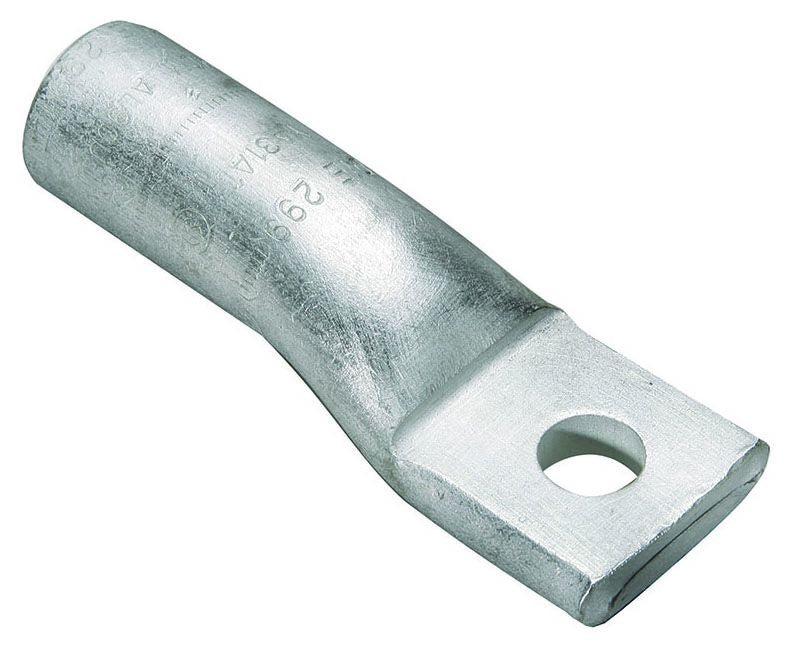

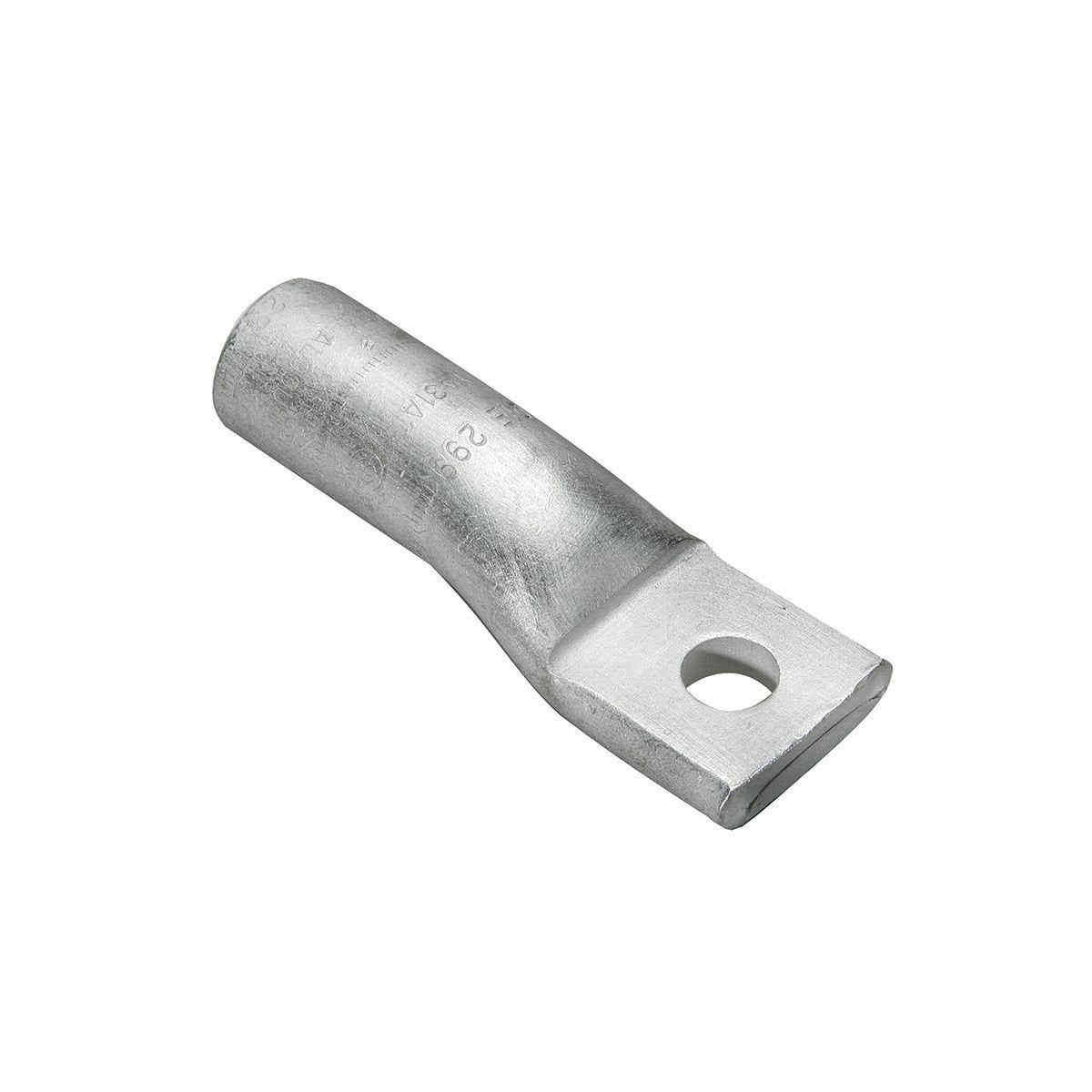

BURNDY YA26A1 is a 2/0 AWG aluminum terminal designed for one hole applications with a half-inch stud size. This terminal is made with high conductivity aluminum, ensuring low resistance and durability. It is equipped with a tin-plated finish and prefilled with PENETROX oxide inhibiting compound to enhance electrical connectivity and prevent corrosion.

• Voltage rating of thirty-five kilovolts.
• Manufactured for both aluminum and copper conductors.
• Meets UL486B requirements for safety and performance.

Product Highlights

This terminal is suitable for heavy-duty wire termination applications. It features an internally beveled barrel for easy cable insertion, ensuring efficient installation. Designed for ultimate reliability, it includes color-coded end caps to help identify the proper die for a secure connection.

Product Information

Standard Information

• Catalog Number: YA26A1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Wire Strip Length: 1-3/8 inches
• Die Index: 297
• Country of Origin: United States
