BURNDY YA262TC14 TERMINALS
BURNDY BURNDY YA262TC14 2/0 AWG CU Two Hole 1/4 Stud Size 5/8 Hole Spacing Long Barrel Internal Chamfer
BURNDY YA262TC14 TERMINALS
BURNDY YA262TC14 2/0 AWG CU Two Hole 1/4 Stud Size 5/8 Hole Spacing Long Barrel Internal Chamfer

BURNDY YA262TC14 2/0 AWG CU Two Hole 1/4 Stud Size 5/8 Hole Spacing Long Barrel Internal Chamfer

Brand: BURNDY
SKU: YA262TC14
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

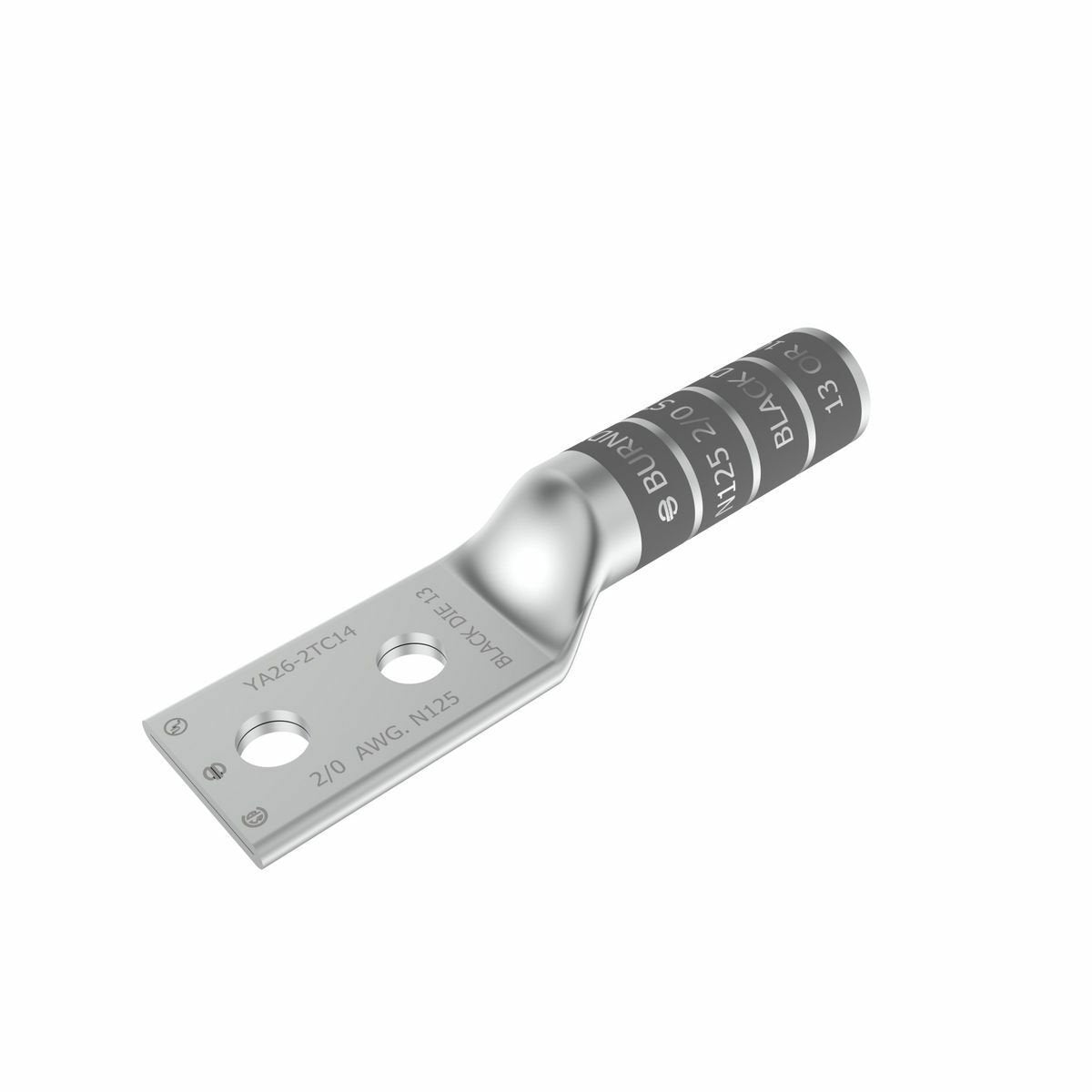

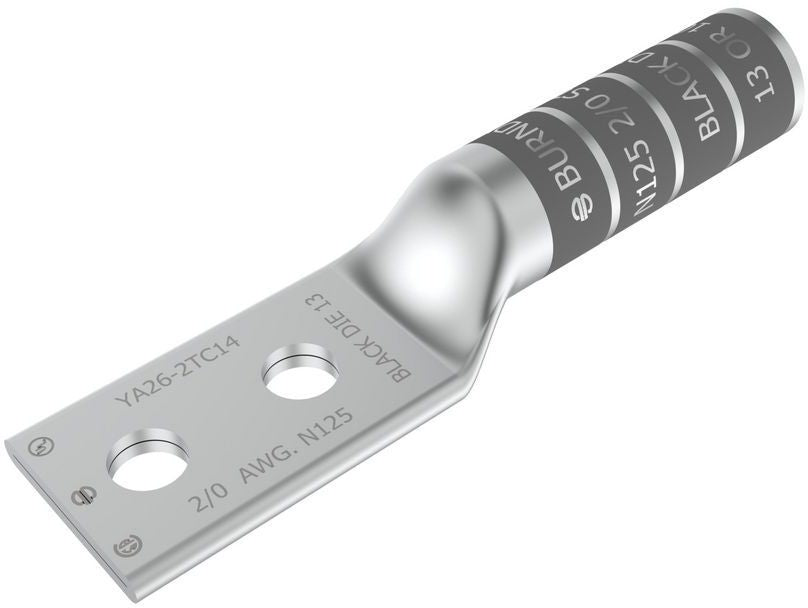

The BURNDY YA262TC14 is a compression cable lug suitable for wire termination applications. This product supports a voltage rating from six hundred volts to thirty-five kilovolts. It features a long barrel design with internal chamfer for easy cable entry. The lug accommodates a conductor size of two/zero AWG in both solid and stranded variations.

  • Made in the USA for reliability.
  • UL Listed with a maximum temperature rating of ninety degrees Celsius.
  • Constructed from electro-tin plated copper for enhanced corrosion resistance.

Product Highlights

Recommended for use in high voltage applications, this lug offers effective wire terminations. The design allows a secure fit with a pad hole spacing of five-eighths of an inch and a stud size of one-quarter inch.

Product Information

Standard Information

  • Catalog Number: YA262TC14
  • Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
Material
Copper
Voltage Rating
35 kV
Temperature Rating
90 °C
Wire Strip Length
1-9/16 inches
Die Index
13
Application
Wire Termination
Standards
UL 486A-486B
Color Code
Black
