Product Description

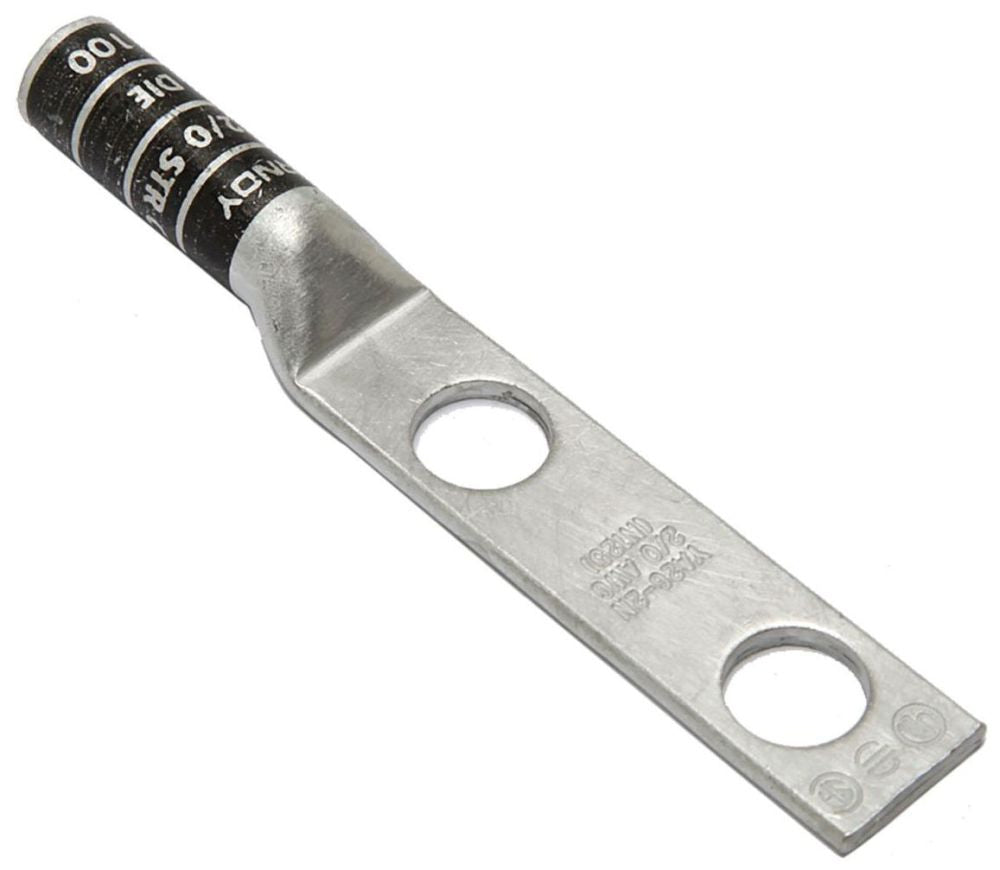

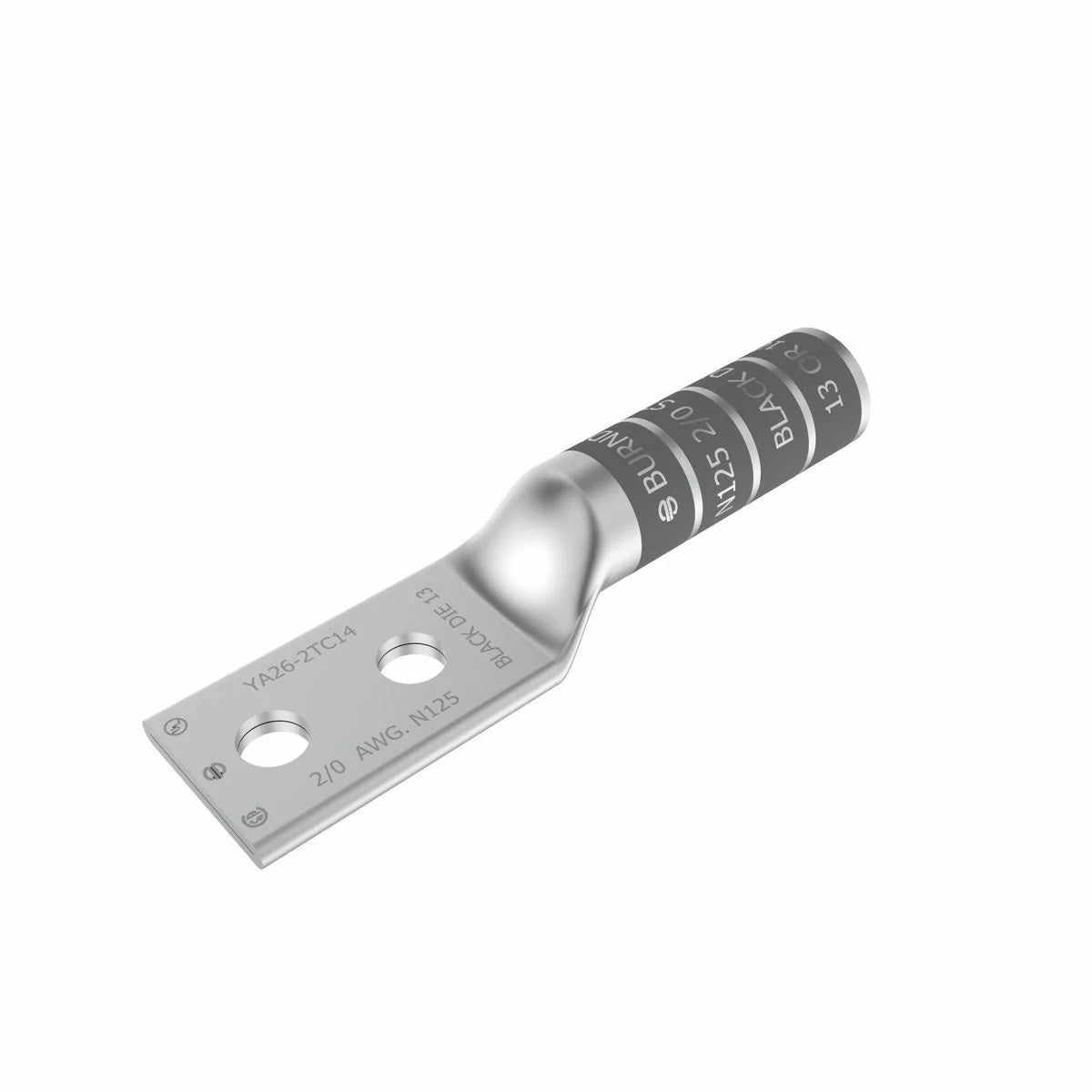

The Burndy YA262N is a compression cable lug designed for effective wire termination. It is suited for use with 2/0 AWG copper conductors and has a voltage rating of up to thirty-five kilovolts. The lug features a long barrel design with a straight tongue angle. The electro-tin plated finish enhances durability and provides excellent conductivity.
- Voltage Rating: Up to 35kV
- Application: Wire Termination
- Material: Copper
Product Highlights
The Burndy YA262N maximizes performance in electrical connections while ensuring safety and compliance with UL and CSA standards.
Product Information
Standard Information
-
Brand: Burndy
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Catalog Number: YA262N
-
Application: Wire Termination
-
Material: Copper
-
Voltage Rating: 35kV
-
Barrel Length: 1.5 inches
-
Pad Size: 0.83 inches width x 0.12 inches thickness
-
Number of Pad Holes: 2
-
Pad Hole Spacing: 1-3/4 inches
-
Stud Size: 1/2 inches
-
Color Code: Black
-
Die Index: 13
-
Temperature Rating: 90°C
-
Standard: UL 486A-486B
-
Country of Origin: United States
