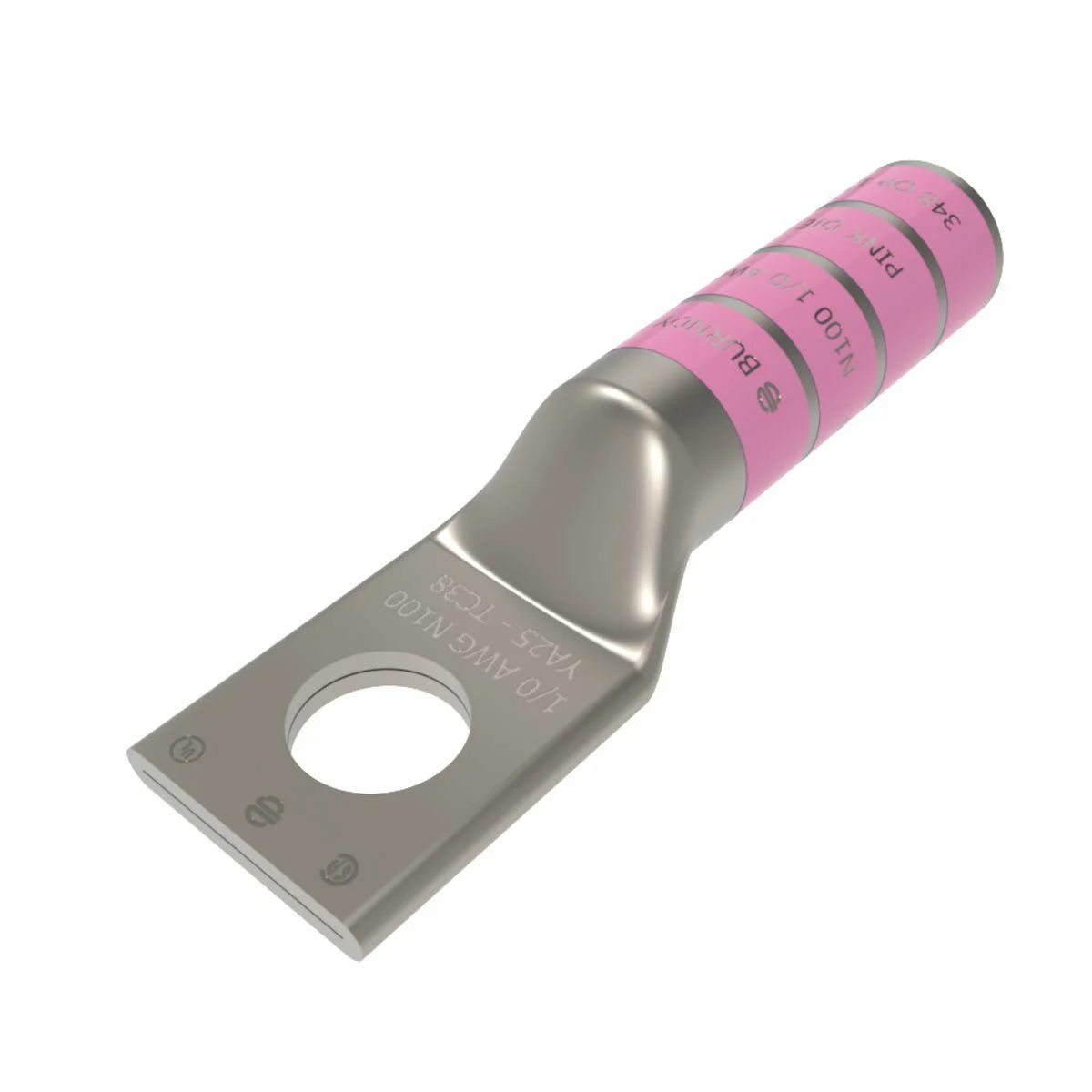

BURNDY YA25TC38 Compression Cable Lug 1/0 AWG 3/8 Stud Size Long Barrel

Product Description

The BURNDY YA25TC38 is a compression cable lug designed for effective wire termination. It is made with high-quality copper and features a long barrel with an internal chamfer. This lug is suitable for conductor sizes of 1/0 AWG and is UL and CSA approved for voltages up to thirty-five kilovolts.

• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• Color Code: Pink

Product Highlights

This cable lug is ideal for wire termination in various electrical applications. It has an electro-tin plated finish for durability and protection against corrosion.

Product Information

Standard Information

• Catalog Number: YA25TC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Material: Copper
• Application: Wire Termination
• Country of Origin: United States
• Special Features: UL Listed 90 degrees Celsius, 600 V - 35 kV, die index: 12
• Wire Strip Length: 1-7/16 inches
• Overall Length: 2.61 inches
• Stud Size: 3/8 inches
• Pad Size: 0.75 inches width x 0.12 inches thickness
