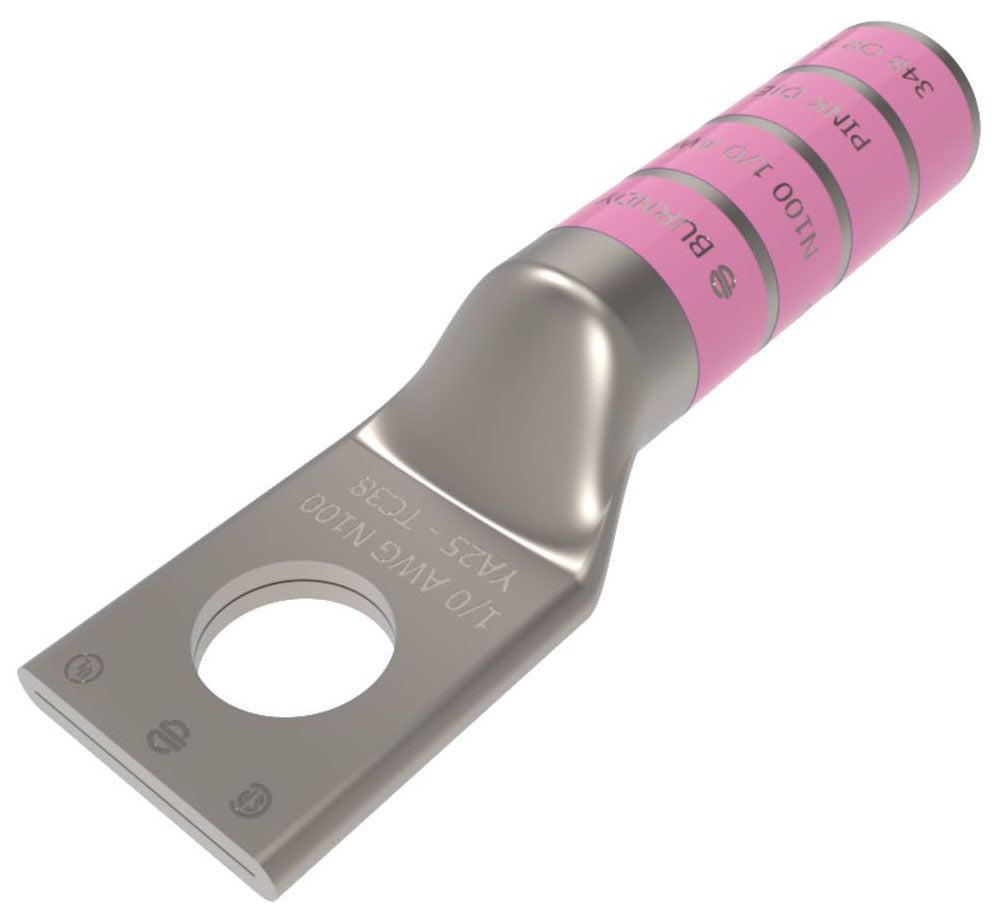

BURNDY YA25N 1/0 AWG CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, PINK Color Code, 12 or 348 Die Index.

Product Description

The BURNDY YA25N is designed for wire termination in electrical applications. This reliable compression cable lug offers excellent durability and performance. It's made from copper and is suitable for high voltage applications up to thirty-five kilovolts.

• UL Listed with a temperature rating of ninety degrees Celsius.
• Electro-tin plated for corrosion resistance.
• Long barrel design for improved conductivity.

Product Highlights

Designed for use with stranded copper conductors, the YA25N is suitable for a variety of cabling needs. It features a pink color code and is compatible with various crimping tools.

Product Information

Standard Information

• Catalog Number: YA25N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Application: Wire Termination
• Voltage Rating: 35 kV
• Special Features: UL Listed 90 C, 600 V - 35 KV, Electro-Tin Plated, Straight Tongue Angle
• Die Index: 12
• Wire Strip Length: 1-7/16 inches
• Cross Reference Products: L1048, 54950BE
• Made in: United States
