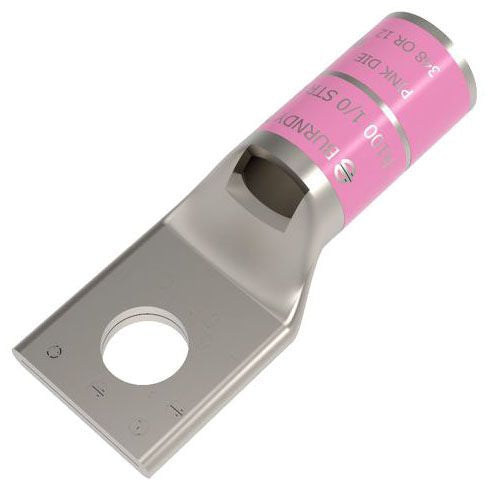

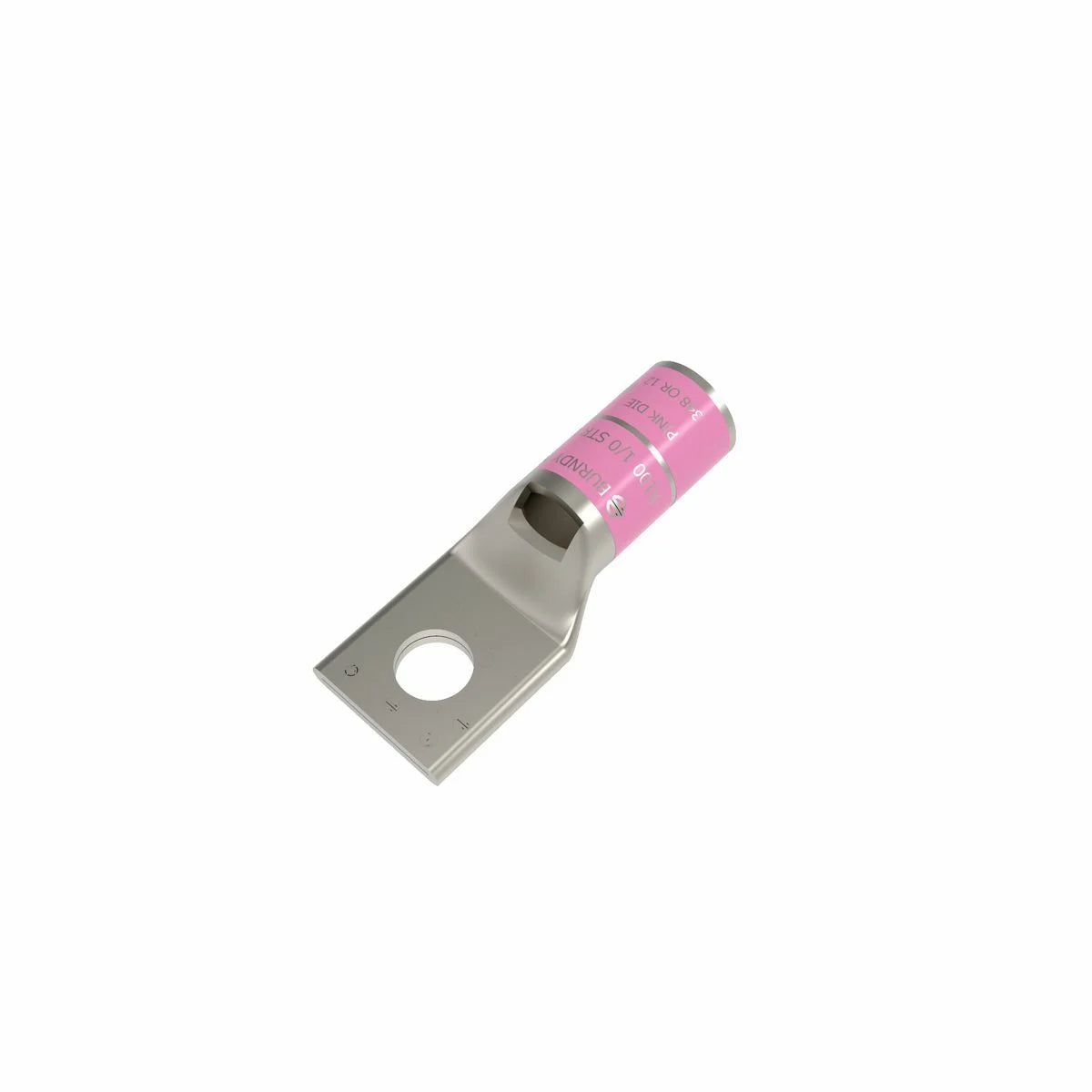

BURNDY YA25LBOX CU Compression Terminal Code Conductor Beveled Entry 1 Hole W/InspWindow 1/0AWG (Code) 100 (Navy) 600V-35kV

Product Description

The BURNDY YA25LBOX is a compression cable lug designed for effective electrical connections. It is suitable for code conductors with a voltage rating of six hundred volts to thirty-five kilovolts. The lug's construction features copper material, ensuring durability and reliability.

• Rated for 600V - 35kV
• Made in the USA
• UL and CSA approved

Product Highlights

This product is designed for commercial stranded copper conductors and features a beveled entry for easy installation.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YA25LBOX

Technical Specifications

• UPC: 781810553251
• Material: Copper
• Barrel Type: Standard, Non-Insulated
• Conductor Size: 1/0 AWG
• Number of Pad Holes: 1
• Stud Size: 5/16 inches
• Temperature Rating: 90 DEG C
• Wire Strip Length: 15/16 inches
• Special Features: UL Listed 90 DEG C, Finish: Electro-Tin Plated
