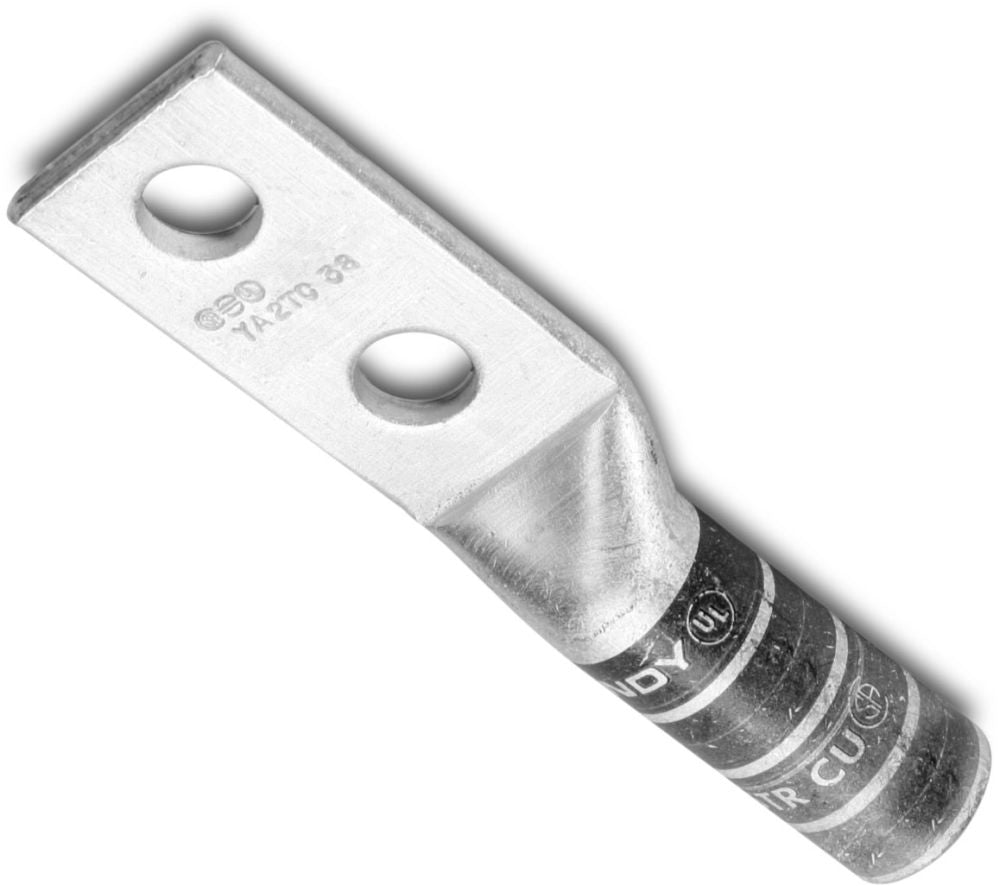

BURNDY YA252TC38 1/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated

Product Description

The BURNDY YA252TC38 is a compression cable lug designed for use in various wire termination applications. This product is made from copper and offers a voltage rating of up to thirty-five thousand volts. It features a long barrel design, internal chamfer, and a tin plated finish. The lug is suitable for solid or stranded conductors of size one/zero AWG.

• UL Listed for safety and performance.
• Temperature rating of ninety degrees Celsius.
• Compatible with various tools and die sets for ease of use.

Product Highlights

The product is made in the United States and is UL and CSA approved. The design supports effective wire termination and enhances electrical connectivity in various applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA252TC38
• Application: Wire Termination
• Material: Copper
• Voltage Rating: 35 kV
• Special Features: UL Listed 90°C, 600 V - 35 kV, Electro-Tin Plated
• UPC: 781810019825
• Country of Origin: United States
• Die Index: 12
