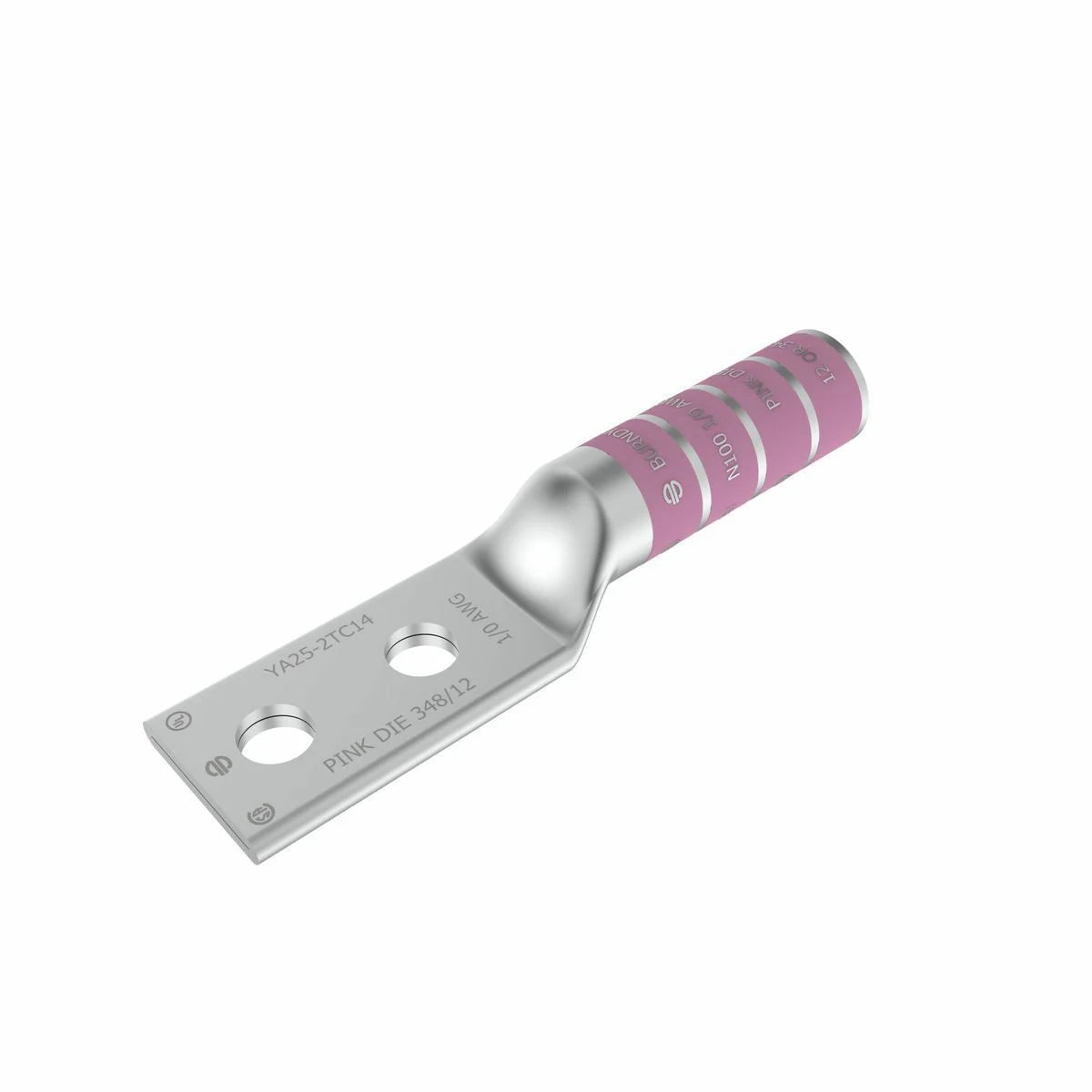

BURNDY YA252N 1/0 AWG CU Two Hole Long Barrel Internal Chamfer

Product Description

The BURNDY YA252N is a copper compression cable lug designed for effective wire termination. This product is suited for applications requiring durability and compliance with UL and CSA standards. The copper construction ensures reliable electrical connectivity.

• Rated for voltage up to thirty-five kilovolts.
• Features a long barrel with a chamfered entry for easy wire insertion.
• UL Listed and RoHS compliant for safety and environmental standards.

Product Highlights

The BURNDY YA252N is specifically designed to handle heavy-duty electrical applications while providing a secure connection.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YA252N

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Barrel Type: Long, Straight
• Length of Barrel: 1.38 inches
• Pad Hole Size: 1/2 inches
• Pad Hole Spacing: 1-3/4 inches
• Color Code: Pink
• Wire Strip Length: 1-7/16 inches
• Approval Standard: UL 486A-486B
