Burndy YA252L 1/0 AWG CU Two Hole Terminal

Product Description

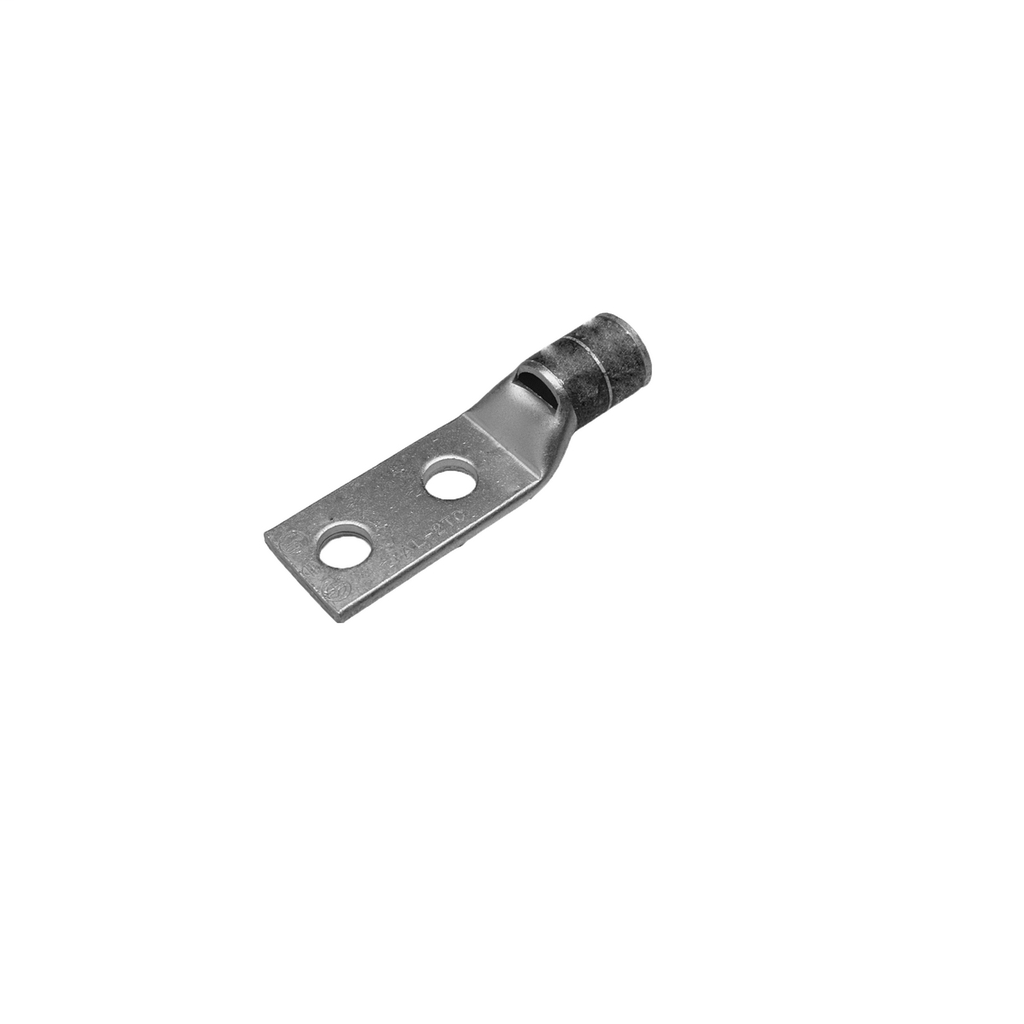

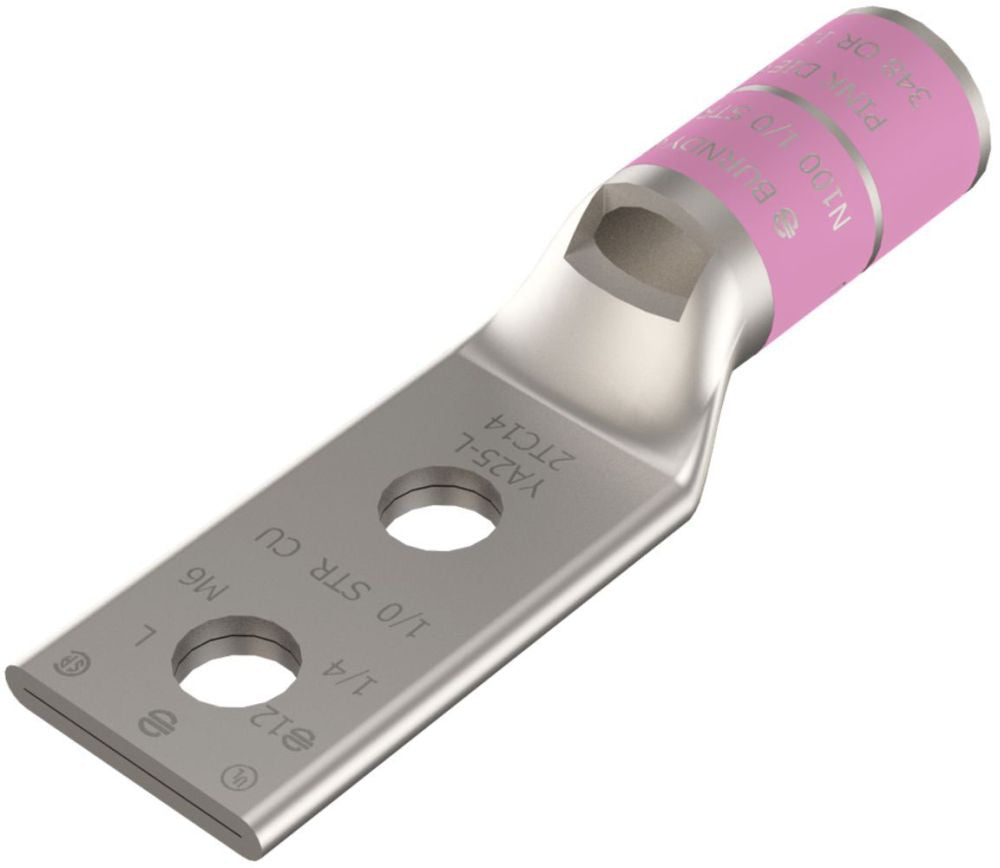

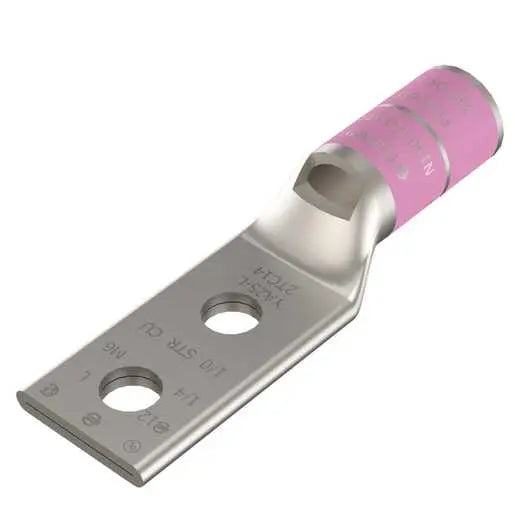

The BURNDY YA252L is a copper compression lug with two holes and an inspection window, designed for 1/0 AWG conductors. It features a 5/16" stud, 7/8" stud hole spacing, and a short, tin-plated barrel. This terminal is UL/CSA certified and suitable for up to 35kV applications.

• Features a chamfered and skived barrel design.
• Constructed from high-conductivity copper.
• Electro-tin plated to reduce galvanic corrosion.

Product Highlights

This copper compression terminal ensures secure wire termination with its two-hole design and inspection window.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA252L
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Finish: Tin Plated
• Length: 2.85 in
• Plated?: Yes
• Material: Copper
• Hole Size: 8 mm
• Max Voltage: 35000 V
• Product UPC: 78181050225
• 12-Digit UPC: 781810502259
• Color Coding: Pink
• Plating Type: Tin - Electro Plated
• Conductor Size: 1/0 AWG
• Overall Length: 2.85 in
• Connection Type: Terminal
• Conductor Material: Copper
• AWG: 1/0
• Stud Size: 5/16"
• Stud Hole Spacing: 7/8"
• Barrel Type: Standard
• Hole Quantity: 2
• Voltage: Up to 35kV
• Temperature Rating: 90.C
• Die Index: 12 or 348
• Application: Wire Termination
• Catalog Number: YA252L
• Feature - Barrel Style: Chamfered Skived
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Physical Attribute - Number of Holes: 2
• Plated: Y
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• UPC: 781810502259
• UPC 14 Digit GTIN: 00781810502259
• Bolt Size: 5/16 in
• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - Bolt Hole Size inch: 0.33 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Bolt Size inch: 0.5
• Dimension - D inch: 1.58 in
• Dimension - Hole Size fraction: 1/2
• Dimension - Hole Size inch: 0.56
• Dimension - Hole Size mm: 14 mm
• Dimension - Inside Diameter inch: 0.39 in
• Dimension - L Length Overall mm: 72 mm
• Dimension - N inch: 0.34 in
• Dimension - Outside Diameter inch: 0.51 in
• Dimension - Pad Width inch: 0.75 in
• Dimension - Strip Length inch: 15/16
• Dimension - Stud Size fraction: 1/2
• Dimension - Z (inch): 0.36 in
• Outside Diameter: 0.51 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper Str Size: 1/0 AWG
• Conductor - Copper Str Size Range: 1/0 AWG
• Conductor - Material: COPPER
• Conductor Type: CODE
• Industry Standard(s): UL 486A-486B
• UL Listed: Yes
