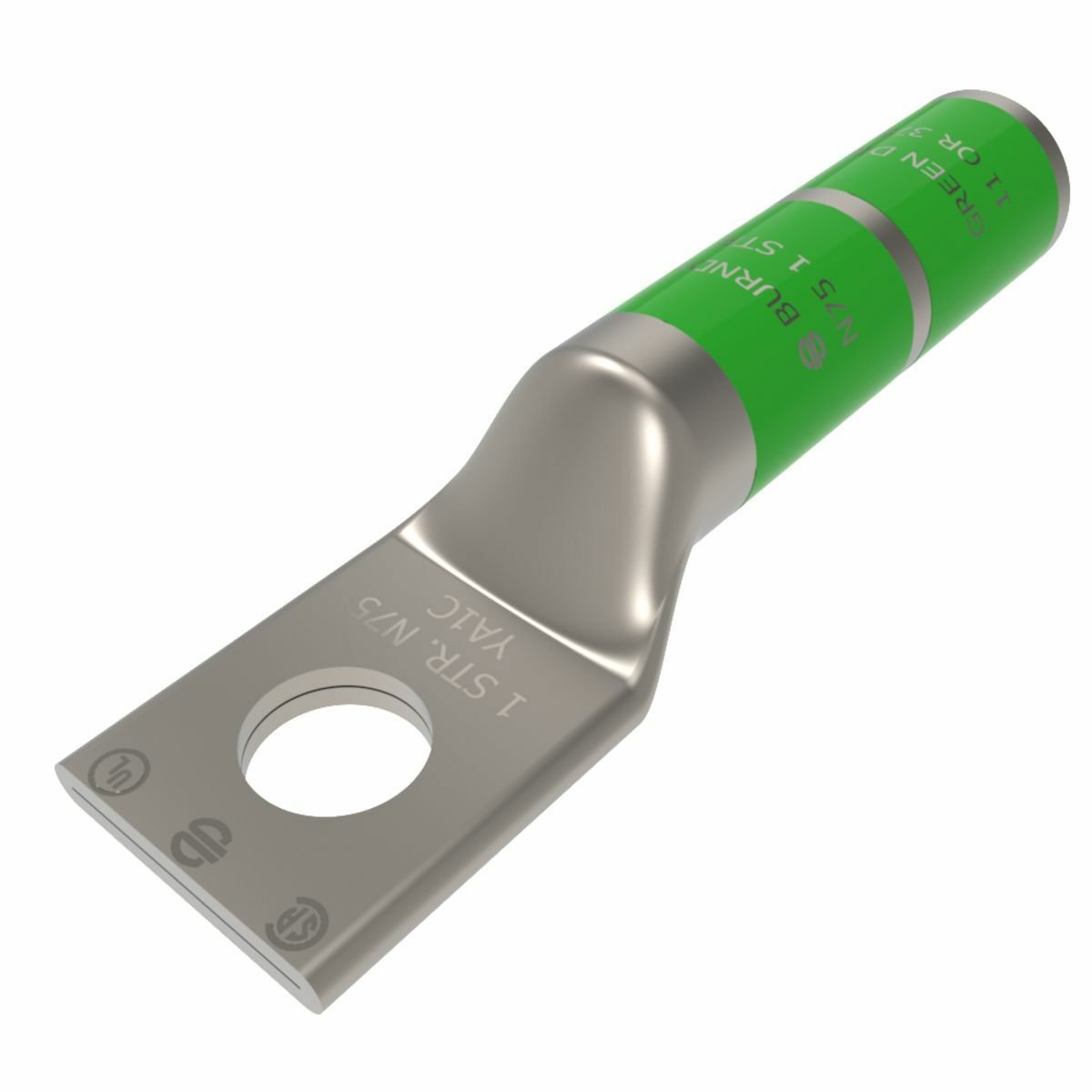

BURNDY YA1CN 1 AWG CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV GREEN Color Code 11 or 375 Die Index

Brand: BURNDY
SKU: YA1CN
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$21.99
$21.99
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The BURNDY YA1CN is a 1 AWG copper compression cable lug designed for secure wire termination in various electrical applications. This lug features a one-hole design with a half-inch stud size, making it suitable for a range of connection needs. Crafted from copper and electro-tin plated, this product meets UL and CSA standards for performance and safety. It operates efficiently under a voltage rating of up to thirty-five kilovolts.

  • Long barrel design for enhanced connection reliability.
  • Temperature rating of ninety degrees Celsius.
  • Green color code with a die index of eleven for easy identification.

Product Highlights

The YA1CN is ideal for use in high-voltage systems, ensuring minimal resistance and maximum conductivity. Its long barrel allows for a wider area of connection, making it perfect for both stranded and solid conductors.

Product Information

Standard Information

  • Manufacturer: Burndy, a Hubbell affiliate
  • Country of Origin: United States

Technical Specifications

  • Catalog Number: YA1CN
  • Application: Wire Termination
  • Material: Copper
  • Voltage Rating: 35 kV
  • Wire Strip Length: 1-7/16 inches
  • Barrel Type: Long, Straight
  • Pad Size: 0.83 inches W x 0.12 inches Thk
  • Stud Size: 1/2 inches
BURNDY YA1CN 1 AWG CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV GREEN Color Code 11 or 375 Die Index

Vendor: BURNDY

BURNDY YA1CN 1 AWG CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV GREEN Color Code 11 or 375 Die Index

$21.99

Vendor: BURNDY

BURNDY YA1CN 1 AWG CU One Hole 1/2 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV GREEN Color Code 11 or 375 Die Index

$21.99
