Burndy YA1CLBOX 1 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV

Product Description

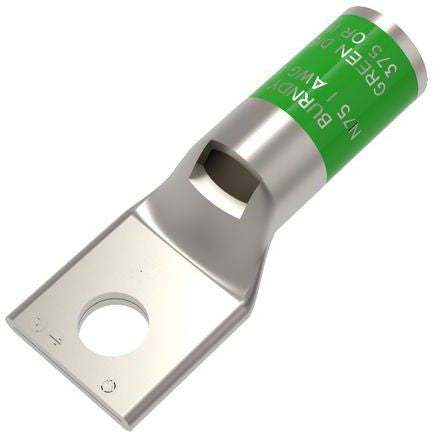

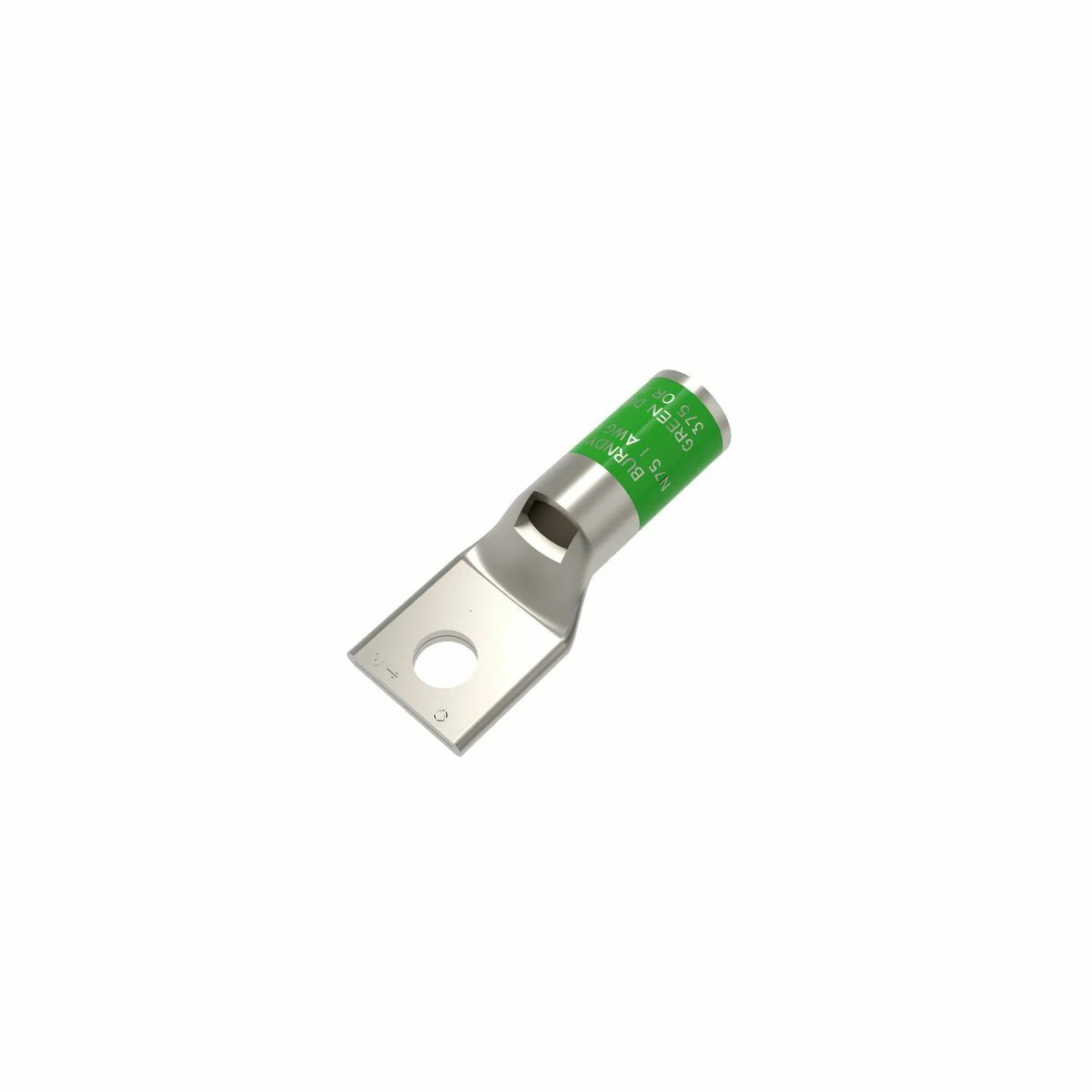

The Burndy YA1CLBOX is a 1 AWG copper cable lug with a one-hole design. This product is suitable for wire termination applications up to thirty-five kilovolts. It includes an inspection window and is ideal for various electrical installations.

• UL Listed for safety compliance
• Made from high-quality copper
• Voltage rating of thirty-five kV

Product Highlights

This lug is built for reliable wire connections in demanding environments. It comes tin plated to enhance conductivity and prevent corrosion.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YA1CLBOX

Technical Specifications

• Material: Copper
• Temperature Rating: 90 Degrees Celsius
• Barrel Type: Standard, Straight, Non-Insulated
• Barrel Length: 0.88 inches
• Pad Size: 0.68 inches width x 0.1 inches thickness
• Stud Size: 5/16 inches
• Die Index: 11/375
• Country of Origin: United States
