BURNDY YA1CL6BOX 1 AWG CU One Hole 1/2 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35KV GREEN Color Code 11 or 375 Die Index

Product Description

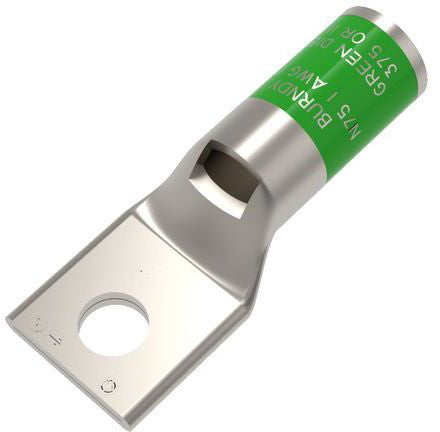

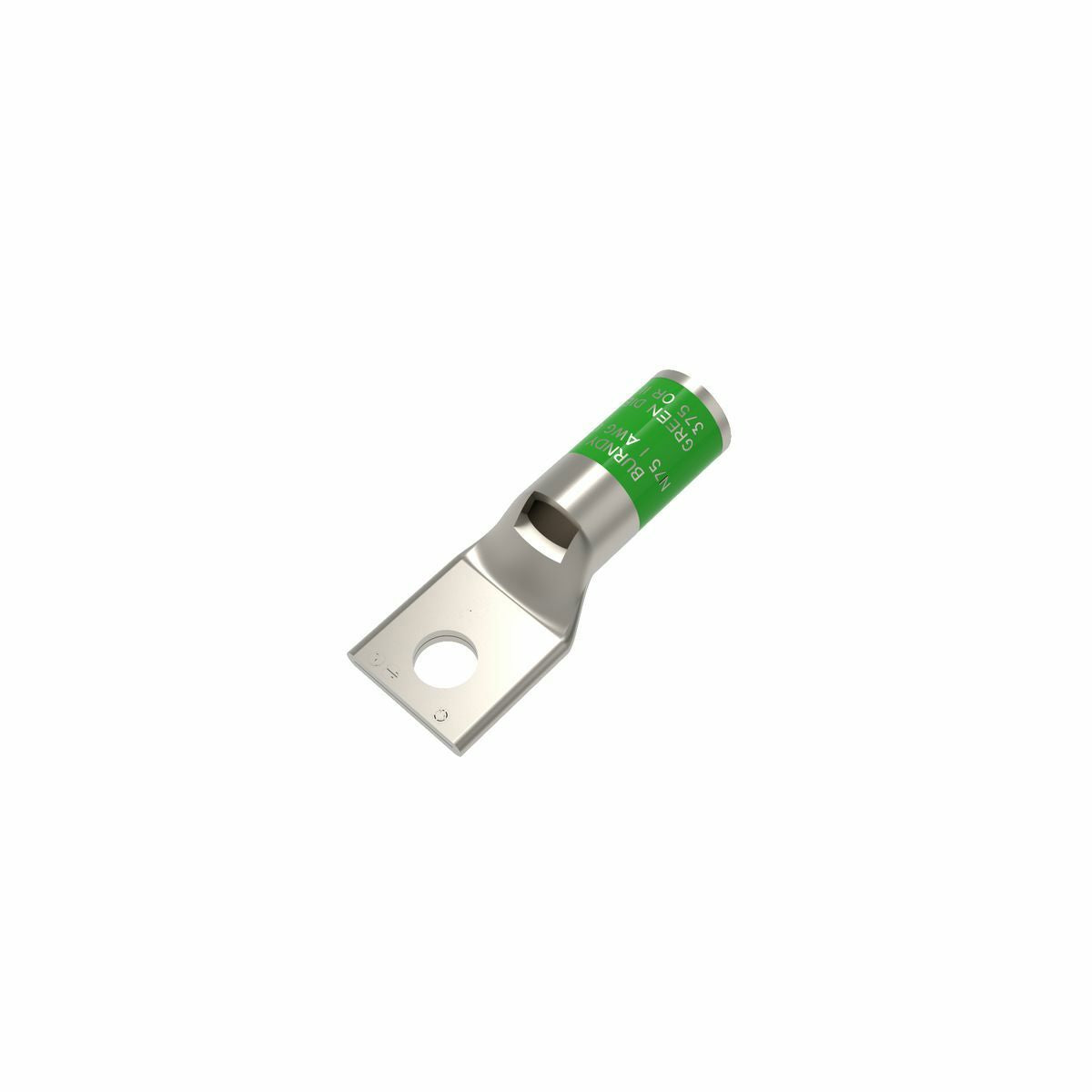

The BURNDY YA1CL6BOX is a compression cable lug designed for effective wire termination. This product features a conductor size of one AWG and is made of high-quality copper. The lug has a standard barrel with an inspection window and internal chamfer for easy installation. It is UL and CSA listed for safety, rated for voltages up to thirty-five kV, and is suitable for commercial stranded copper conductors.

• Compression cable lug for wire termination
• Rated for voltages from 600 V to 35 kV
• Made from copper with tin plating for enhanced conductivity

Product Highlights

The YA1CL6BOX offers reliable performance in electrical connections, making it ideal for various electrical applications where durability and safety are paramount.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810551455

Technical Specifications

• Catalog Number: YA1CL6BOX
• Application: Wire Termination
• Material: Copper
• Voltage Rating: 35 kV
• Country of Origin: United States
• Special Features: UL Listed 90°C, 600 V to 35 kV, with various die sets available
• Die Index: 11
• Overall Length: 2.37 inches
