BURNDY YA1CL4BOX CABLE TERMINALS
BURNDY YA1CL4BOX CABLE TERMINALS
BURNDY YA1CL4BOX 1 AWG CU One Hole 3/8 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

BURNDY YA1CL4BOX 1 AWG CU One Hole 3/8 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Brand: BURNDY
SKU: YA1CL4BOX
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12 pm
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

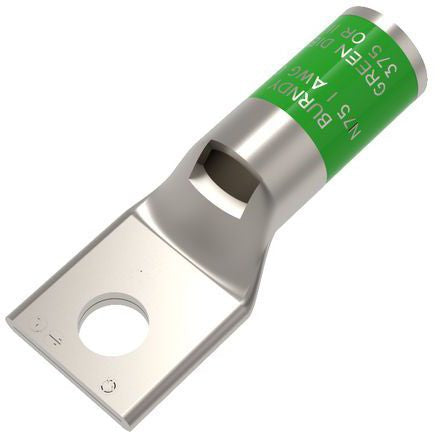

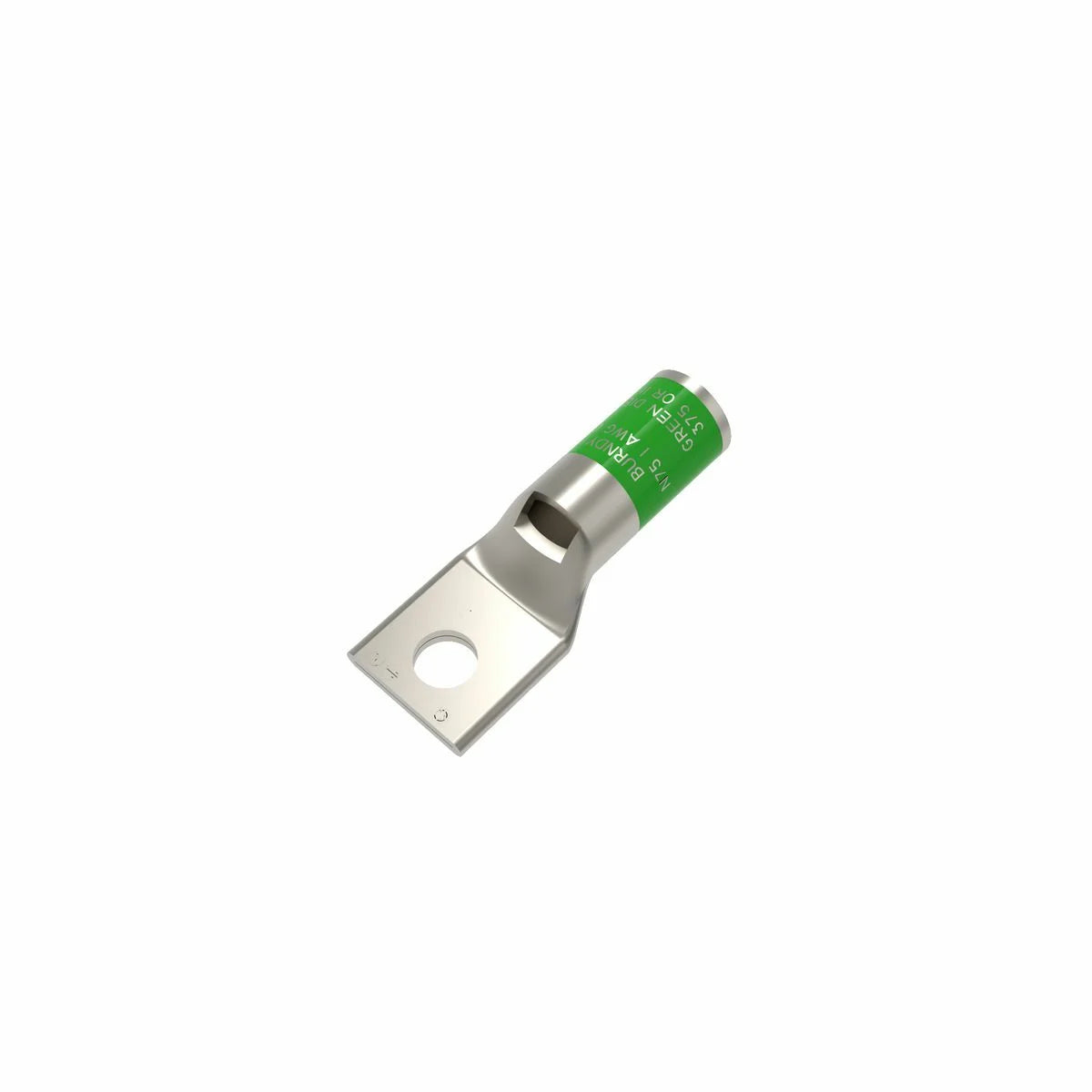

The BURNDY YA1CL4BOX is a compression cable lug designed for reliable wire termination. It features a one hole design with a three-eighths inch stud size. This product is made from copper and is UL and CSA approved for applications up to thirty-five kilovolts.

  • Material: Copper
  • Voltage Rating: Up to 35 kV
  • Country of Origin: United States

Product Highlights

The YA1CL4BOX is ideal for various cable connection tasks, ensuring a secure and efficient electrical connection.

Product Information

Standard Information

  • Catalog Number: YA1CL4BOX
  • Brand: BURNDY

Technical Specifications

  • Conductor Size: 1 AWG
  • Barrel Type: Standard, Non-Insulated
  • Barrel Length: 0.88 inches
  • Pad Size: 0.68 inches x 0.1 inches
  • Die Index: 11/375
  • Temperature Rating: 90 DEG C
  • Wire Strip Length: 15/16 inches
  • Stud Size: 3/8 inches
