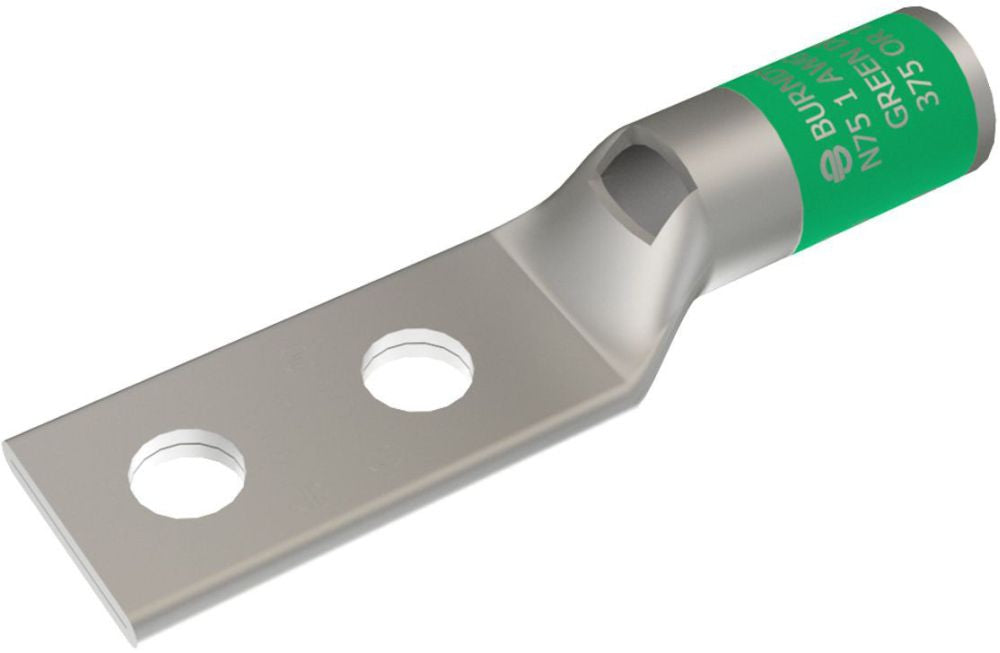

BURNDY YA1C2LN BUR YA1C2LN 1STR 2HL STD LUG 1STR

Product Description

The BURNDY YA1C2LN is a compression cable lug designed for electrical connections. This product has a voltage rating between six hundred volts to thirty-five thousand volts. It is made of copper, which provides excellent conductivity and reliability.

• Conductor size of one AWG stranded code
• Short, standard barrel with a barrel length of point eighty-eight inches
• Includes an inspection window for quality assurance

Product Highlights

This lug is ideal for use in various electrical applications, including connections in industrial and commercial settings.

Product Information

Standard Information

• Manufacturer: BURNDY
• UPC: 78181050042

Technical Specifications

• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 1 AWG Stranded
• Barrel Type: Short, Standard, Straight
• Barrel Length: 0.88 inches
• Pad Size: 0.83 inches W x 0.12 inches Thk
• Number of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 inches
• Stud Size: 1/2 inch
• Die Index: 11/375
• Material: Electro-Tin Plated Copper
• Overall Length: 4.32 inches
• Temperature Rating: 90 °C
• Wire Strip Length: 15/16 inches
• Cable Entry Type: Beveled Entry, Chamfered
