Burndy YA1C2L 1 AWG CU Two Hole Terminal

Product Description

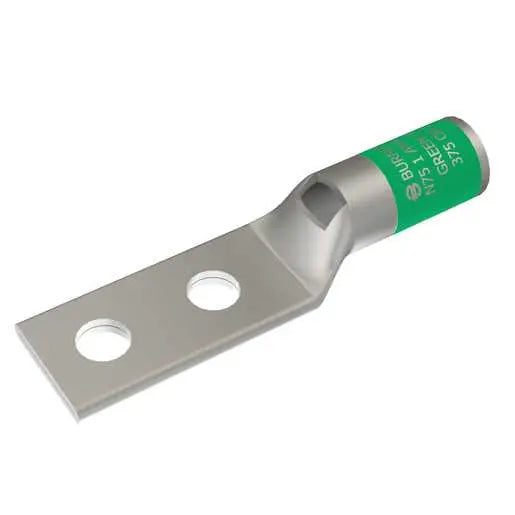

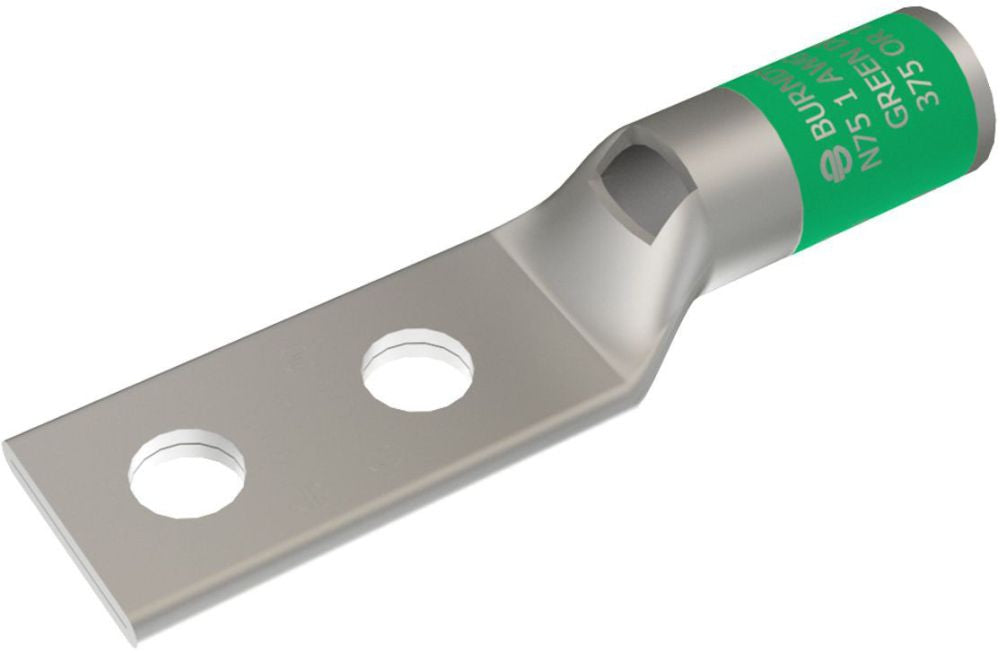

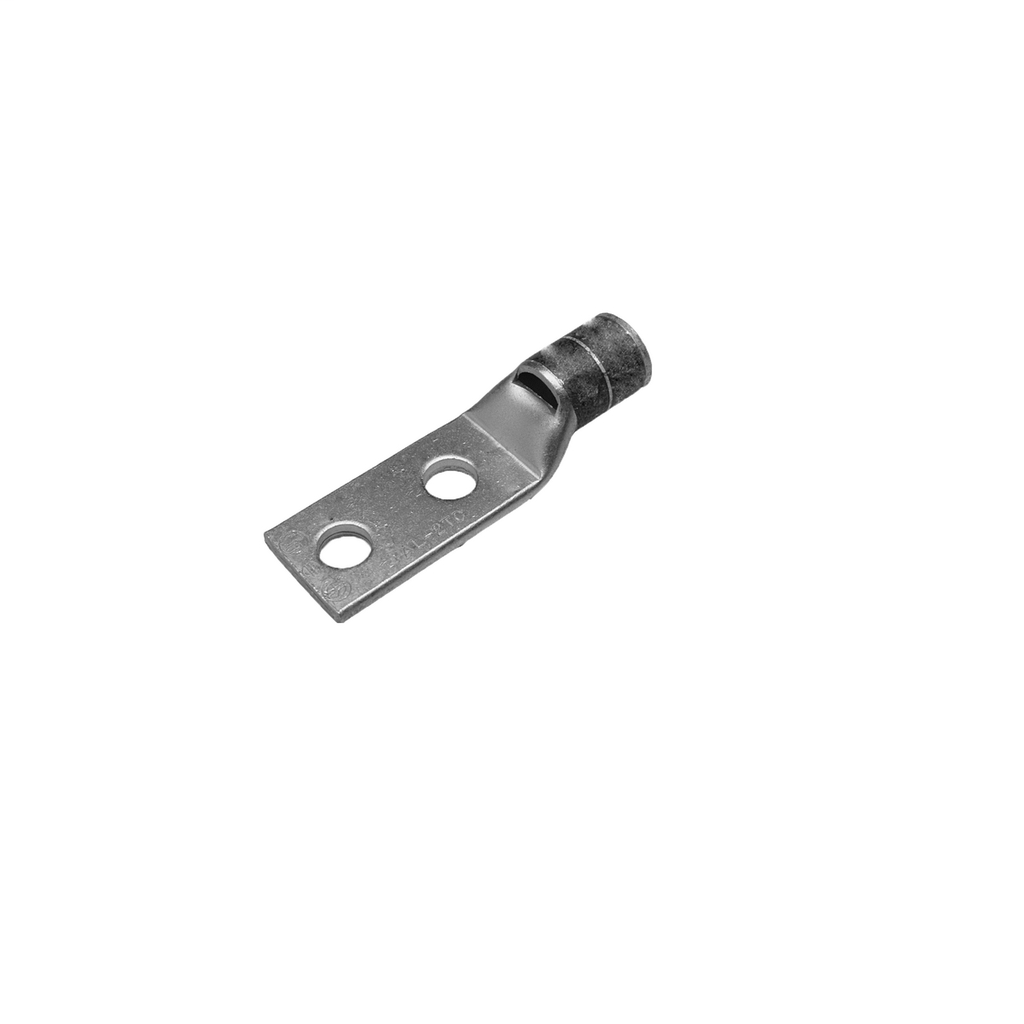

The BURNDY YA1C2L is a copper compression lug with two holes and an inspection window, designed for 1 AWG conductors. This terminal features a short barrel and is tin plated. It is suitable for voltage applications from 600 V to 35 kV. The barrel includes an internal chamfer for smooth wire insertion.

• Features a chamfered and skived barrel design.
• Electro-tin plated to reduce galvanic corrosion.
• Clearly marked with stamping and color coding.

Product Highlights

This copper compression lug ensures secure wire termination with its two-hole design and inspection window.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA1C2L
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Finish: Tin Plated
• Plated?: Yes
• Material: Copper
• Max Voltage: 35000 V
• Product UPC: 78181050040
• 12-Digit UPC: 781810500408
• Color Coding: Green
• Plating Type: Tin - Electro Plated
• Conductor Size: 1 AWG
• Connection Type: Terminal
• Country of Origin: USA
• Conductor Material: Copper
• Voltage Rating: 600 V to 35 kV
• Barrel Type: Short, Skived, Standard, Straight
• Number of Pad Holes: 2
• Stud Size: 5/16 Inch
• Die Index: 11/375
• RoHS Compatible: True
• Includes Inspection Window: True
• Temperature Rating: 90 Deg C
• Cable Entry Type: Beveled Entry, Chamfered
• Application: Wire Termination
• Catalog Number: YA1C2L
• Feature - Barrel Style: Chamfered, Skived
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Angle: Straight
• Conductor Type: CODE
• UL Listed: Yes
• Family Series: Burndy Terminals
• Terminal Type: Barrel - Standard
• Wire Size Range: 1 AWG
• Insulated: Non-Insulated
• Plating Material: Electro-Tin
• Approvals: CSA, UL
