Burndy YA1C 1 AWG CU One Hole 5/16 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV

Product Description

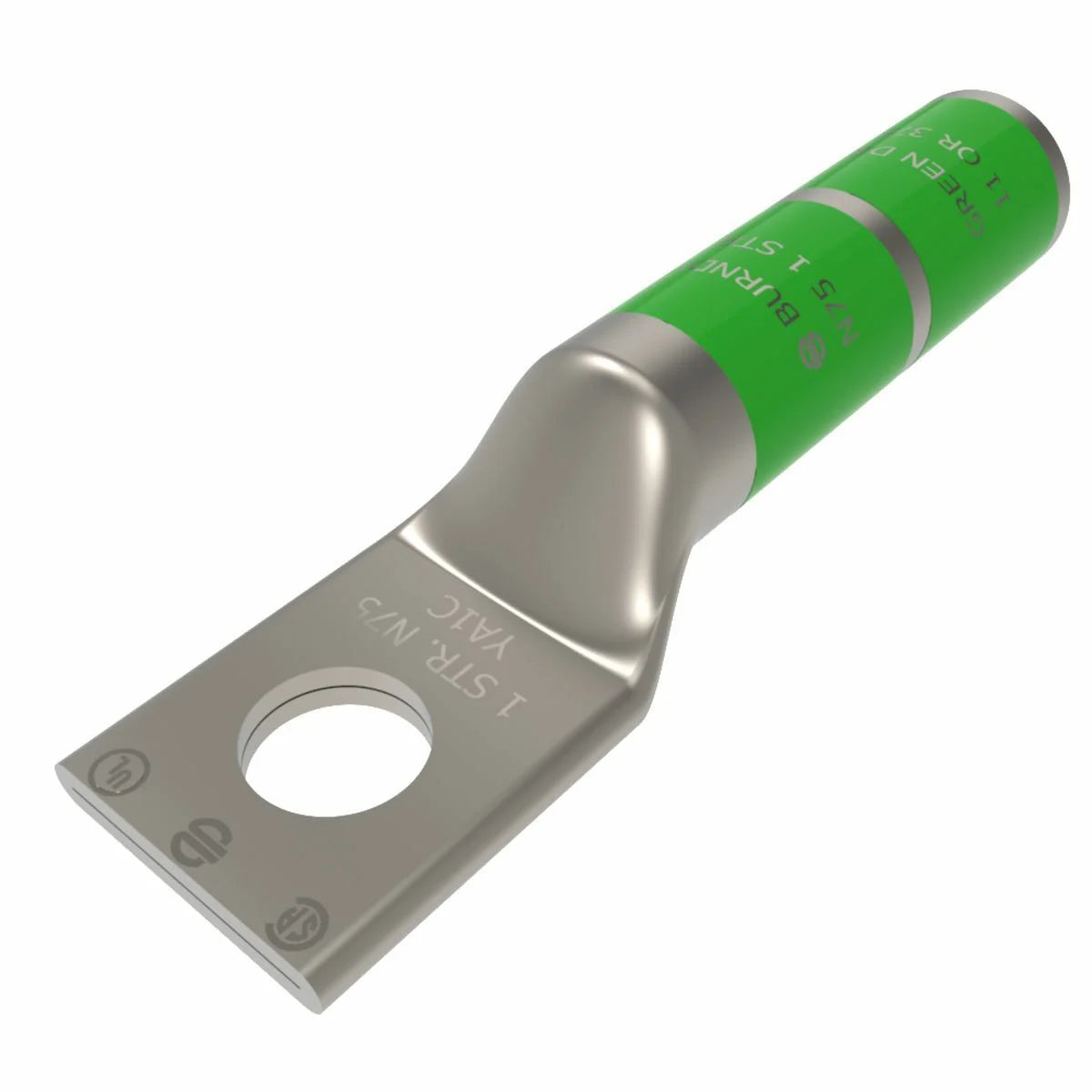

The Burndy YA1C is a compression cable lug designed for wire termination applications. This product features a conductor material of copper and is capable of handling a voltage rating of thirty-five kilovolts. The barrel type is long and straight, with a chamfered entry for ease of installation. It comes with a pad size that accommodates a five-sixteenth inch stud.

• Voltage Rating: 35kV
• Wire Strip Length: 1-7/16 inches
• Special Features: UL Listed for 90°C, electro-tin plated finish

Product Highlights

The YA1C is UL and CSA approved, ensuring compliance with safety standards for electrical connections. It features a die index of 11 and is RoHS compliant, making it suitable for environmentally-conscious projects.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA1C
• Material: Copper
• Application: Wire Termination
• Country of Origin: United States
• Voltage Rating: 35kV
• Die Index: 11
• Finish: Electro-Tin Plated
