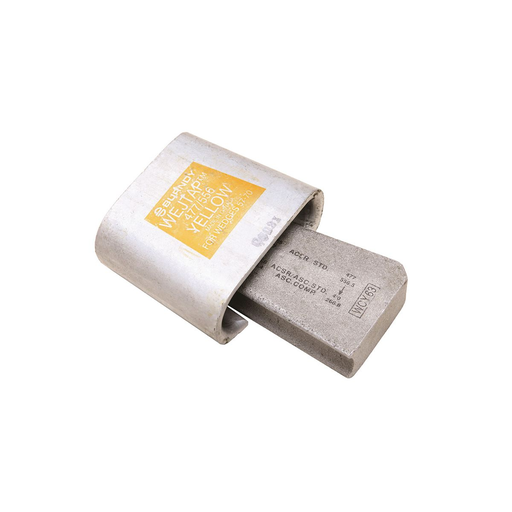

Burndy WCY64 Wejtap Assembly With Yellow Booster

Product Description

The Burndy WCY64 Wejtap Assembly is designed for effective tap applications using large run and tap conductor sizes. This connector is installed with a yellow booster to enhance performance. The assembly has a maximum diameter of one point four two one inches and a minimum diameter of one point two one six inches.

• Installed with a yellow power booster
• For large run and tap conductor sizes
• Max diameter: 1.421 inches, Min diameter: 1.216 inches

Product Highlights

This product facilitates reliable connections in electrical systems and is suitable for various large conductor sizes.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Hubbell-Burndy

Technical Specifications

• Applications: For use in tap applications using large run and tap conductor sizes
• Conductor Size: 18 AWG - 397.5 AWG / 18 AWG - 477 kcmil / 18 AWG - 556.5 kcmil
• Connection Type: Tap
• Material: Aluminum
• Tap Size: 2/0 - 6 (1), 3/0 - 6 (1), 3/0, 4/0 - 6 (1), 4/0 AWG
• Type: Wedge
