Burndy WCY56 YELLOW WEJTAP CONN ANSI

Product Description

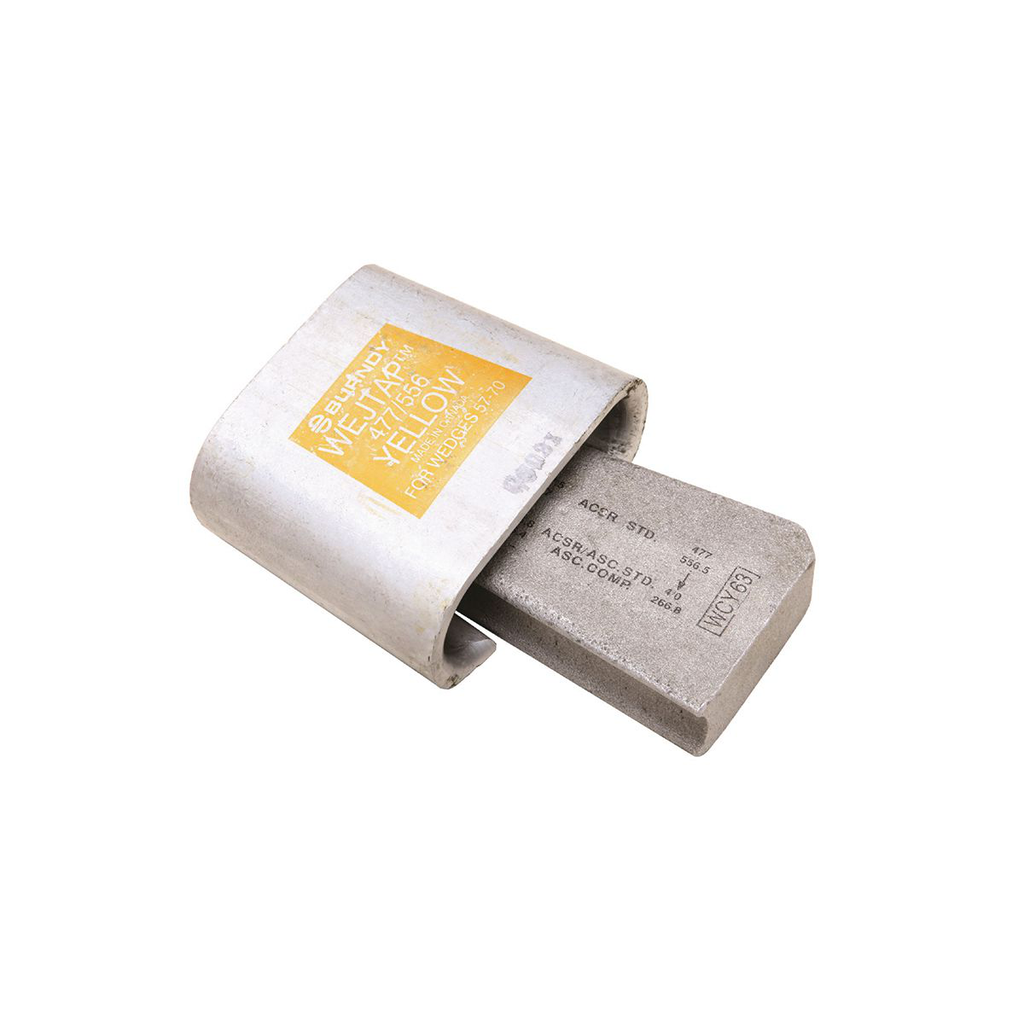

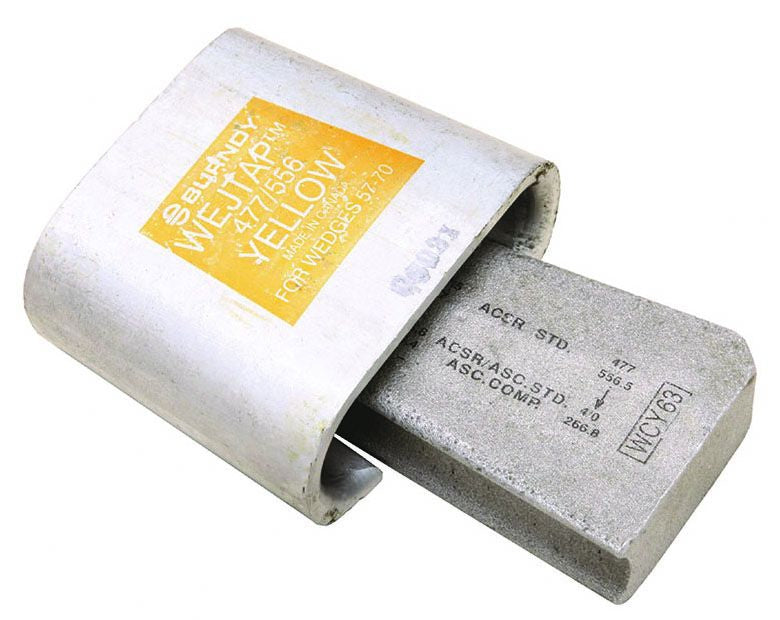

The Burndy WCY56 is a wedge tap connector designed for efficient electrical connections. This model supports copper and AAC conductors. It connects conductors with an outer diameter ranging from zero point five three seven to zero point seven five inches. With a color-coded yellow body, this connector complies with ANSI C119.4 and other relevant standards.

• Designed for copper and AAC conductors
• Supports outer diameters from zero point five three seven inches to zero point seven five inches
• Meets ANSI and ASTM standards for reliability

Product Highlights

The Burndy WCY56 wedge tap connector is essential for electrical professionals looking to maintain secure and compliant connections.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181087420

Technical Specifications

• Conductor Material: Copper/AAC
• Run Outer Diameter: 0.537 to 0.75 inches
• Tap Outer Diameter: 0.524 to 0.75 inches
• Maximum CU/AAC Run to Tap Size: 397.5 KCMIL
• Maximum AAC Run to Tap Size: 397.5 KCMIL
• Body Material: Aluminum Alloy
• RoHS Compatible: Yes
• Country of Origin: Mexico
