Product Description

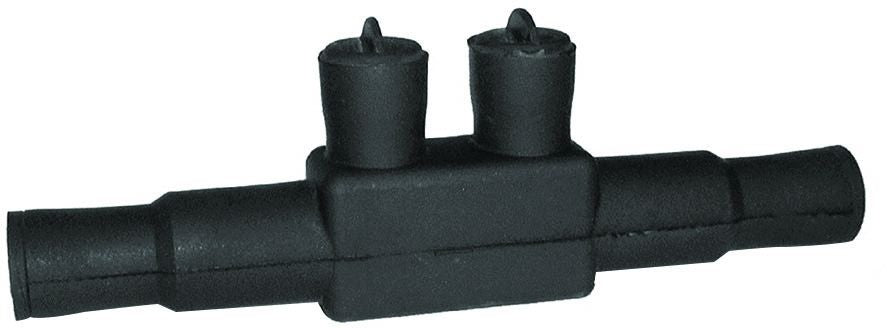

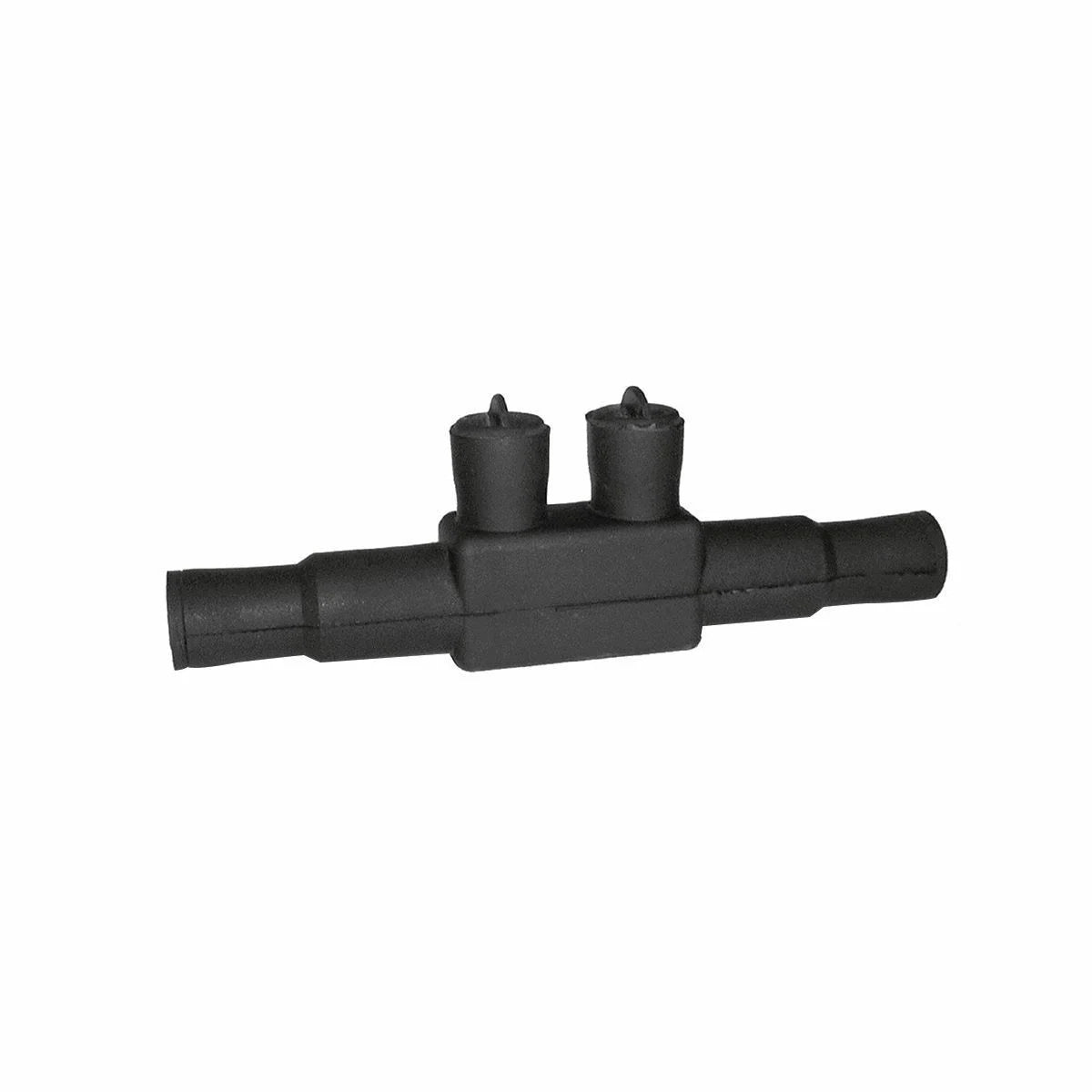

The BURNDY UGS350ULDB is an in-line splice/reducer designed for direct burial applications. It accommodates wire sizes from twelve AWG up to three hundred fifty KCMIL. This connector is dual rated for aluminum and copper conductors, allowing flexibility for various electrical projects.
- Direct burial rated for both copper and aluminum.
- Installation torque of three hundred fifty inch-pounds.
- UL listed and CSA certified for safety and reliability.
Product Highlights
Built to withstand harsh environments, the UGS350ULDB ensures secure connections for outdoor applications. Its EPDM rubber insulation provides added protection against moisture for long-lasting performance.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Catalog Number: UGS350ULDB
-
Material: Brass
-
Application: For Direct Burial
-
Insulation: Y
-
Temperature Rating: 194 Degrees Fahrenheit
-
Country of Origin: United States
-
Standard: UL486D
-
Number of Screws: 2
-
Hex Size: 5/16 Inches
-
Installation Torque: 350 IN-LB
-
Special Features: EPDM Rubber Covered 6061-T6 Aluminum Connector, Dual Rated AL9CU for Copper or Aluminum Conductor, Broad Range Taking Capability
-
Cross Reference Products: USPA-350SS-DB, ISPBS350
