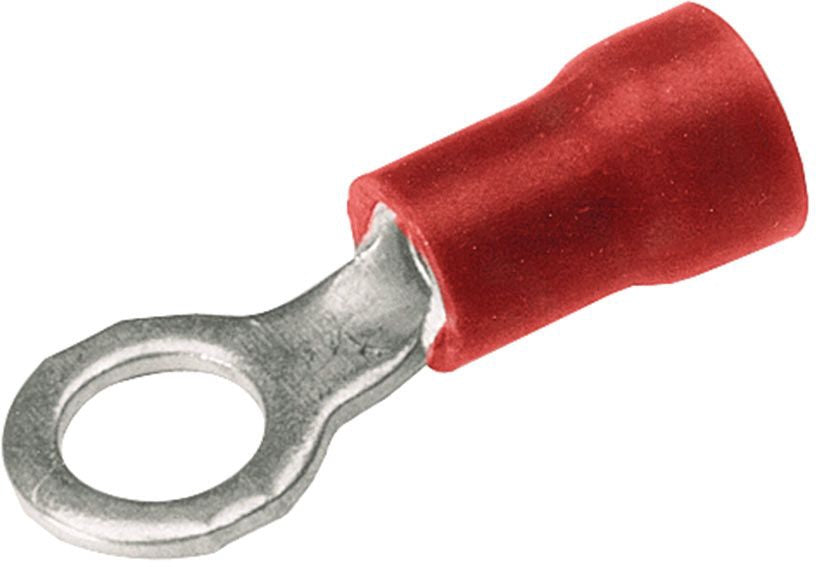

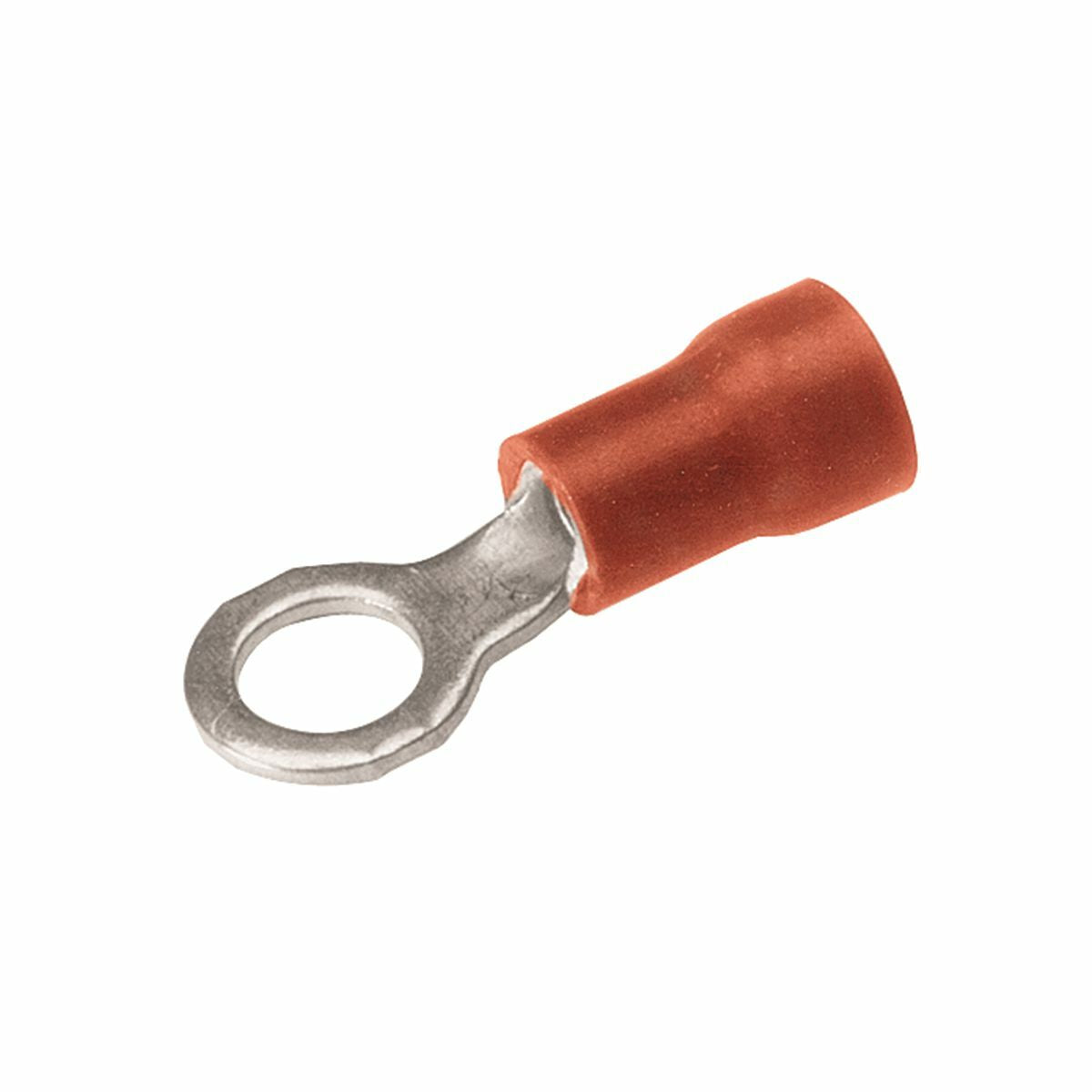

BURNDY TP1614 Terminal-Polyvinylchloride Insulated Ring Tongue 22-16 Max Insul.Dia. Accom.: .145 Color Code:Red

Product Description

The BURNDY TP1614 is a terminal that features a polyvinylchloride (PVC) insulation designed for reliable connections in various electrical applications. This ring tongue terminal supports conductor sizes ranging from twenty-two AWG to sixteen AWG. Ideal for commercial and light-duty industrial control as well as power circuit applications, it meets UL467 standards.

• Insulation diameter maximum of zero point one four five inches
• Made of pure electrolytic copper for optimal conductivity
• Temperature rating of one hundred five degrees Celsius

Product Highlights

This terminal is designed with versatility in mind, equipped with a funnel entry for ease of wire insertion. Its deep V groove serrations enhance conductivity and holding strength. The deep barrel design supports a variety of wire sizes to adjust to job requirements.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Country of Origin: United States

Technical Specifications

• Catalog Number: TP1614
• Application: For commercial and light duty industrial control and power circuit applications
• Material: Copper
• Insulation: Y
• Item Type: Ring Tongue
• Special Features: Supplied with an expanded PVC insulation shroud, rated for 600 V
• UPC: 781810715048
• Temperature Rating: 105 degrees Celsius maximum
