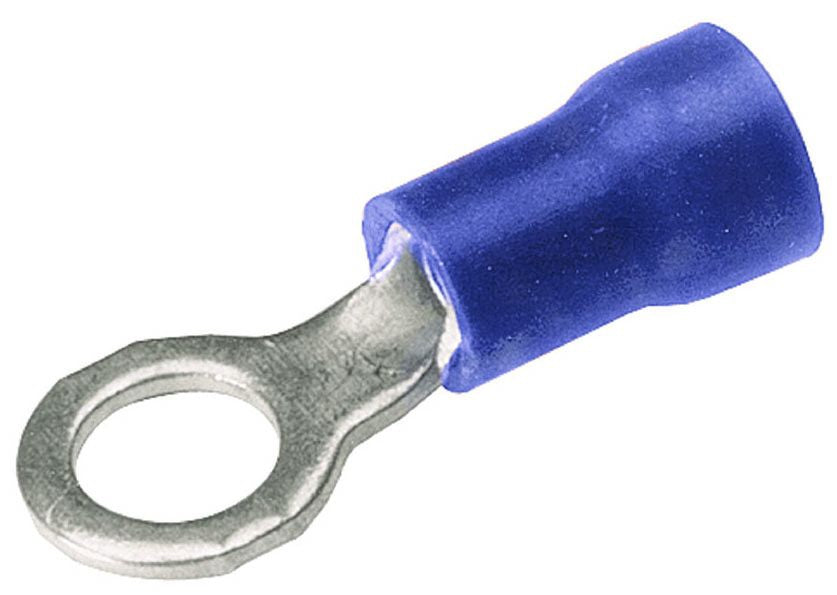

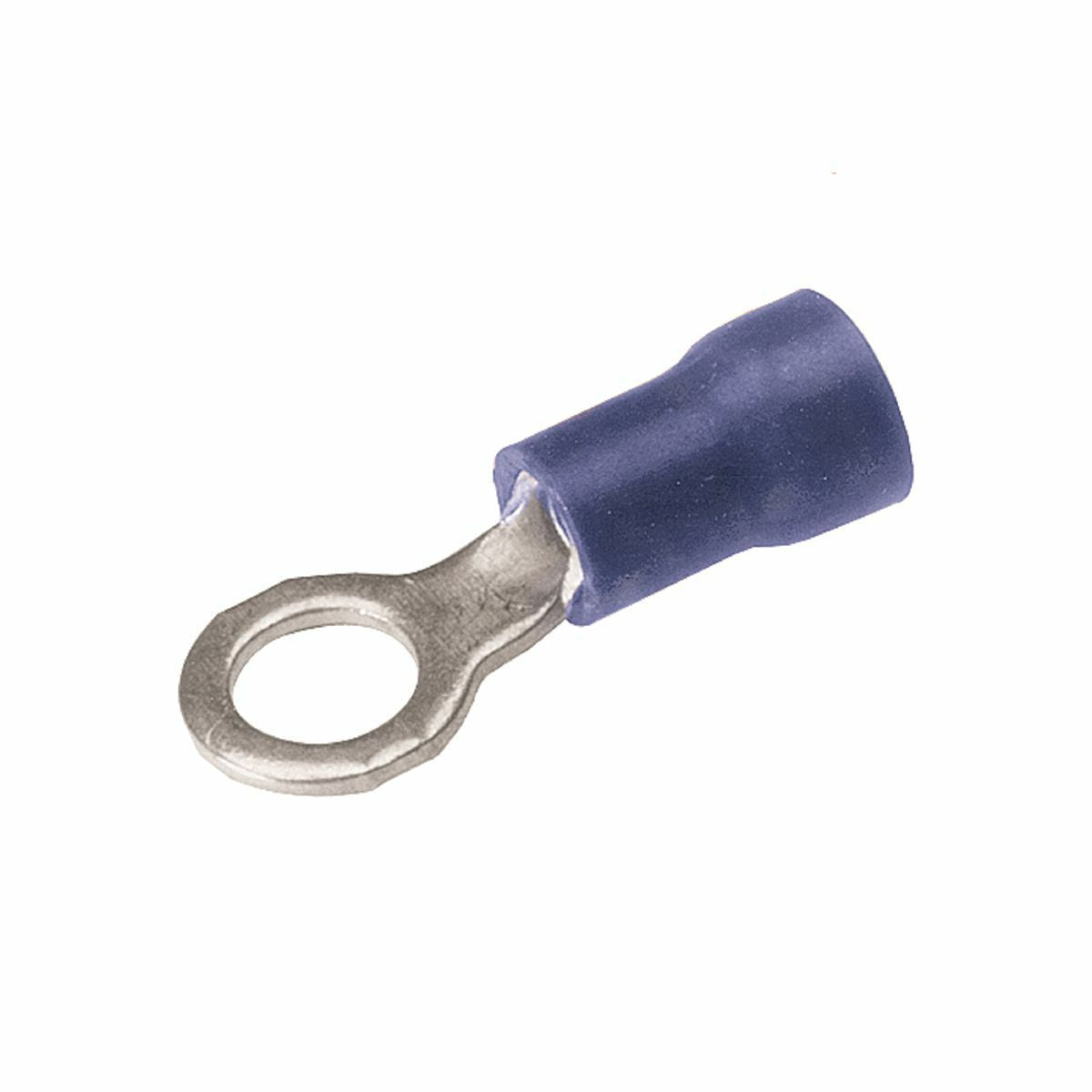

BURNDY TP148 Copper Terminal, Ring Tongue, 16-14 AWG, #6-#8 Stud, Vinyl Insulated, Tin Plated, Wire Strip Length: 13/64

Product Description

The BURNDY TP148 is a copper terminal designed for various electrical applications. It is suitable for wires sized 16 to 14 AWG and can accommodate stud sizes of #6 to #8. The terminal features vinyl insulation and is tin-plated for corrosion resistance.

• Designed for commercial and light-duty industrial circuits
• Insulation type: PVC, with maximum temperature rating of one hundred five degrees Celsius
• Wire strip length required is thirteen sixty-fourths of an inch

Product Highlights

This terminal supports easy wire insertion with its funnel entry design. It is manufactured from pure electrolytic copper for maximum conductivity and durability.

Product Information

Standard Information

• Catalog Number: TP148
• Brand: BURNDY

Technical Specifications

• Material: Copper
• Insulation: PVC
• Application: Suitable for commercial and light-duty industrial control
• Voltage Rating: 600 V
• Temperature Rating: 105 degrees Celsius
• Wire Strip Length: 13/64 inches
• Max Insulation Diameter: 0.18 inches
• Standards: UL467
