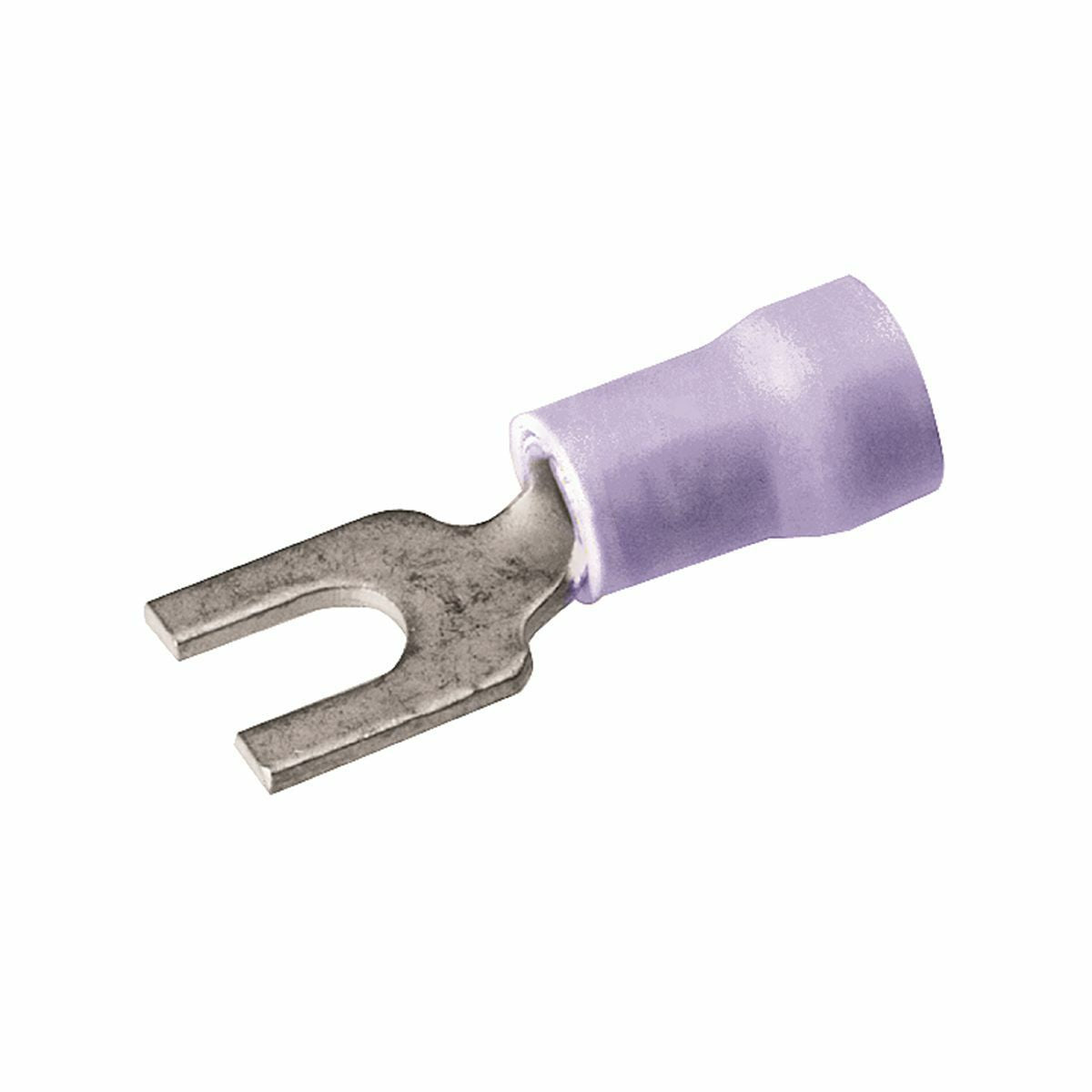

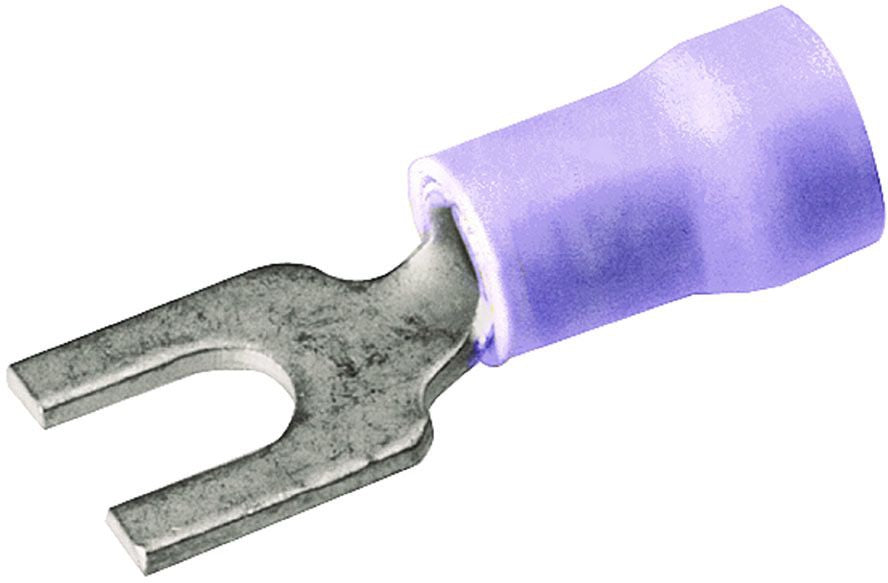

BURNDY TP146F Insulated Brazed Fork Terminal 600V #16-#14 #3-#6 Stud

Product Description

The BURNDY TP146F is an insulated brazed fork terminal designed for effective electrical connections. It is suitable for commercial and light-duty industrial control and power circuit applications. This terminal offers a smooth entry for easy installation and is compatible with wires from #16 to #14 AWG. The terminal is built to endure a maximum voltage of 600 volts.

• Insulated fork terminal for secure connections
• Temperature rated up to one hundred five degrees Celsius
• Electro-tin plated copper provides excellent conductivity

Product Highlights

The BURNDY TP146F features a fork tongue design which allows for quicker installations by loosening screws without completely removing them. This product is ideal for both professional electricians and DIYers looking for reliable performance in their wiring tasks.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: TP146F
• Material: Copper
• Insulation: Yes
• Application: For commercial and light-duty industrial applications
• Insulation Diameter (maximum): zero point eighteen inches
• Wire Strip Length: thirteen sixty-fourths inches
• Special Features: Fork tongue design, maximum voltage six hundred volts, temperature rating one hundred five degrees Celsius
• Country of Origin: United States
