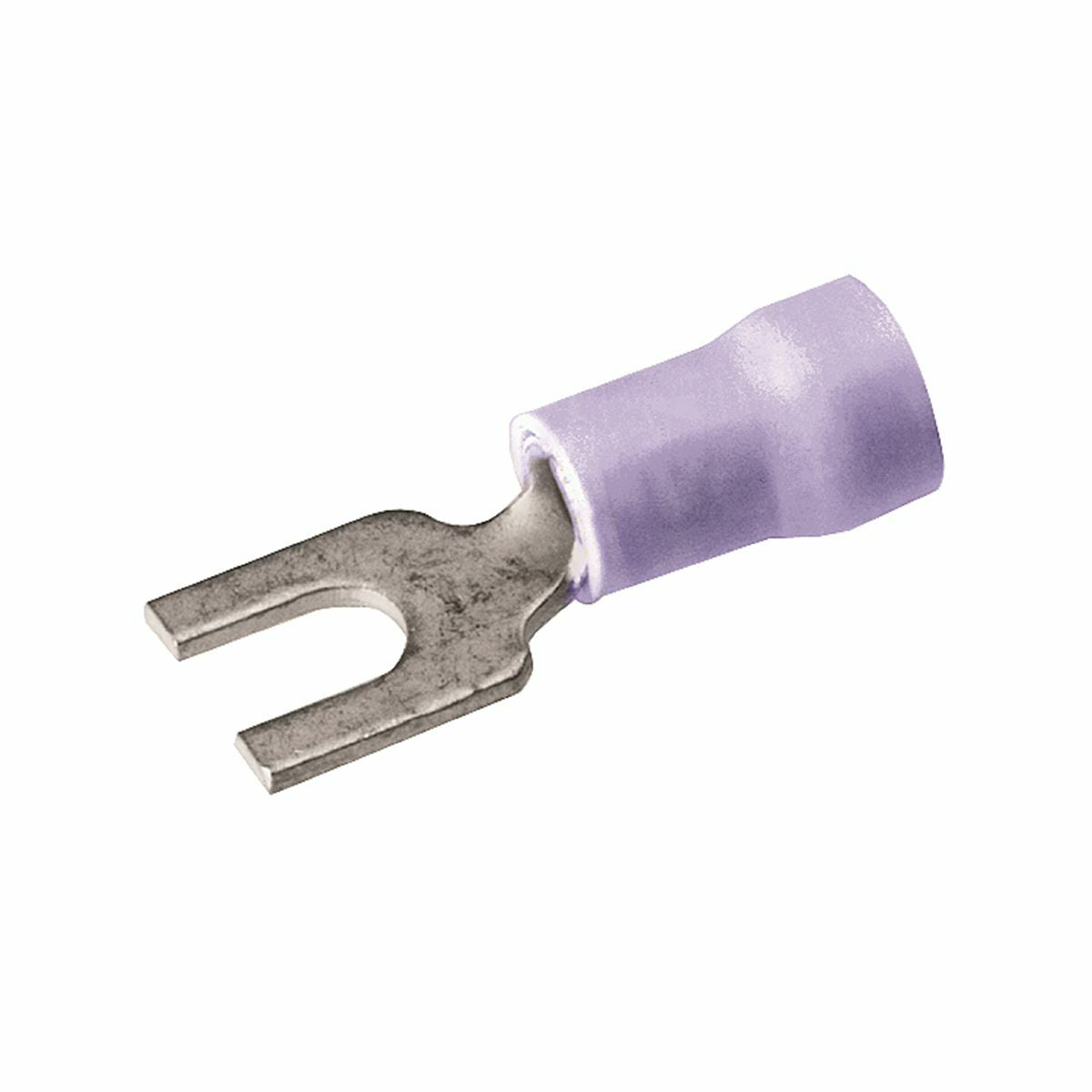

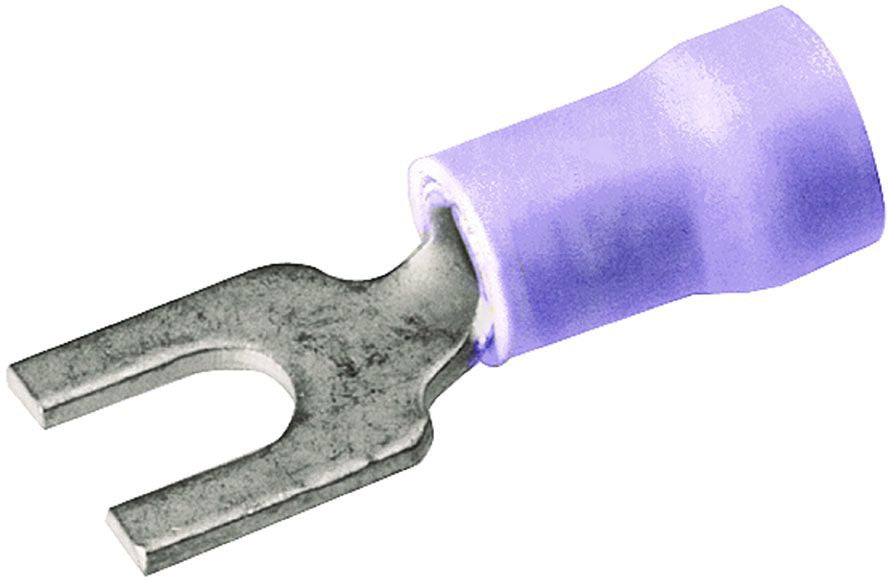

BURNDY TP14-10F Copper Terminal, Fork Tongue, 16-14 AWG, #8-#10 Stud, Vinyl Insulated, Tin Plated

Product Description

The BURNDY TP14-10F is a copper terminal designed for efficient electrical connections. This terminal features a fork tongue design that simplifies installation. The terminal accommodates wire sizes from sixteen to fourteen AWG, making it suitable for various applications.

• Copper construction for reliable conductivity.
• Rated for 600 volts and a maximum temperature of 105 degrees Celsius.
• Easy installation with a fork tongue design that requires only loosening of screws for termination.

Product Highlights

This terminal is ideal for commercial and light-duty industrial control applications. Its durable construction ensures long-lasting performance.

Product Information

Standard Information

• Catalog Number: TP1410F
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Wire Size: 16-14 AWG
• Stud Size: #8 to #10
• Material: Copper
• Insulation: PVC insulated
• Voltage Rating: 600 V
• Temperature Rating: 105 degrees Celsius
• Wire Strip Length: 13/64 inches
• Maximum Insulation Diameter: 0.18 inches
