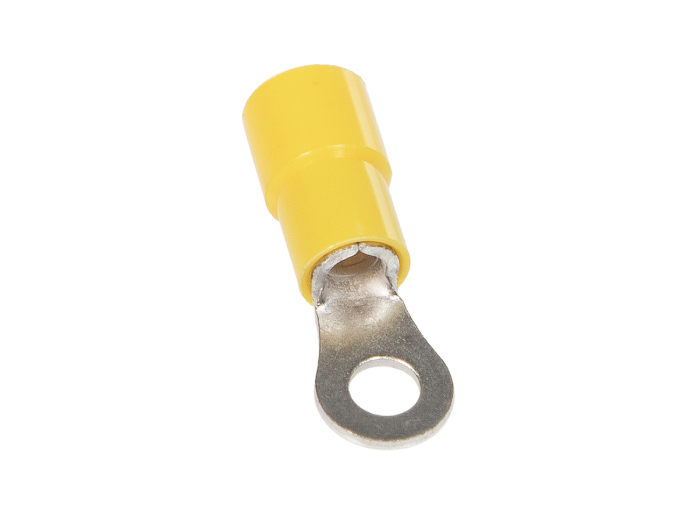

Burndy TP108RBG25 Vinyl Ring Terminal For 12 - 10 AWG

Product Description

The BURNDY TP108RBG25 is a vinyl ring terminal designed for 12 - 10 AWG wires. It features expanded insulation support that accepts standard and large wire diameters, reducing inventory needs and increasing flexibility. Manufactured from pure electrolytic copper, it offers maximum conductivity, low resistance, and excellent crimp forming properties. The funnel entry ensures easy wire insertion.

• Expanded insulation support accepts standard and large wire diameters providing lower inventory requirements and greater flexibility
• Funnel entry for easy wire insertion
• Manufactured of pure electrolytic copper to provide maximum conductivity, low resistance and ductility for excellent crimp forming properties

Product Highlights

The BURNDY TP108RBG25 ring terminal ensures secure and efficient connections for 12-10 AWG wires, featuring a vinyl insulated barrel and tin plating for enhanced conductivity and corrosion resistance.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: TP108RBG25
• Country of Origin: USA

Technical Specifications

• Catalog Number: TP108RBG25
• Connector Type: Ring Terminal
• Feature - Barrel Style: Shrouded
• Insulation: Y
• Insulation Type: Vinyl
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Plated: Y
• Plating Type: Tin
• Trade Name: HYDENT
• Type: Ring Tongue
• Dimension - B Length fraction: 17/50 in
• Dimension - B Length inch: 0.34 in
• Dimension - Bolt Size fraction: #6 - #8
• Dimension - Hole Size fraction: 8/47
• Dimension - Hole Size inch: 0.17 in
• Dimension - Length Overall inch: 0.98 in
• Dimension - Pad Width inch: 0.31 in
• Dimension - Stud Size inch: #6;#8
• Dimension - Z (inch): 0.26 in
• Conductor - Copper Str Size: 12 AWG;10 AWG
• Conductor - Copper Str Size Range: 12 AWG-10 AWG
• Conductor Size: 12 - 10 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Length: 0.98 Inch
• Overall Length: 0.98 in
• Brand: Burndy
• Terminal Type: Ring
• Insulated: Insulated
• Insulation Material: Vinyl
• Stud Size: #6, #8
• Approvals: CSA, UL
• Net Weight: 0.005 lbs
• Gross Weight: 0.09 lbs
• CSA: No
