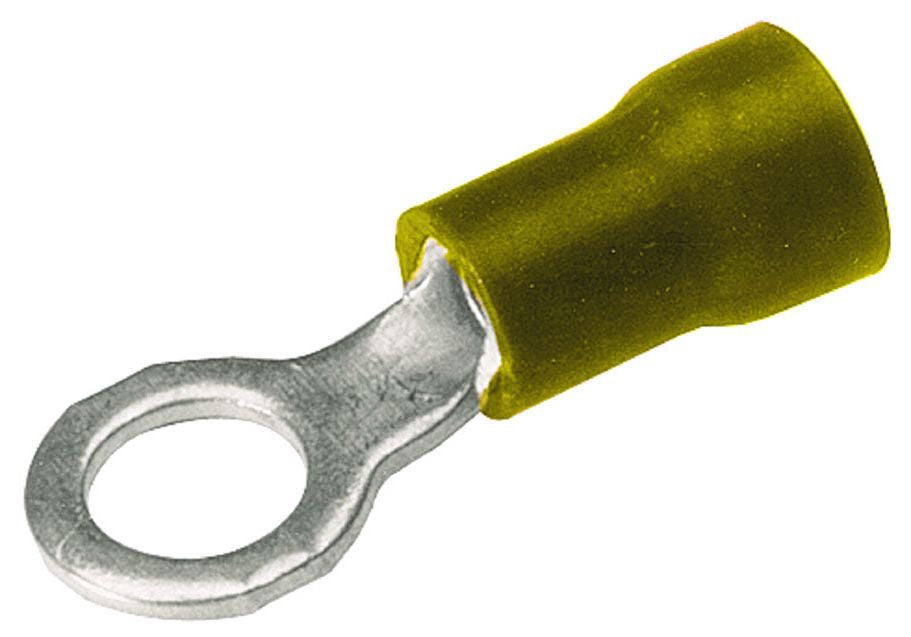

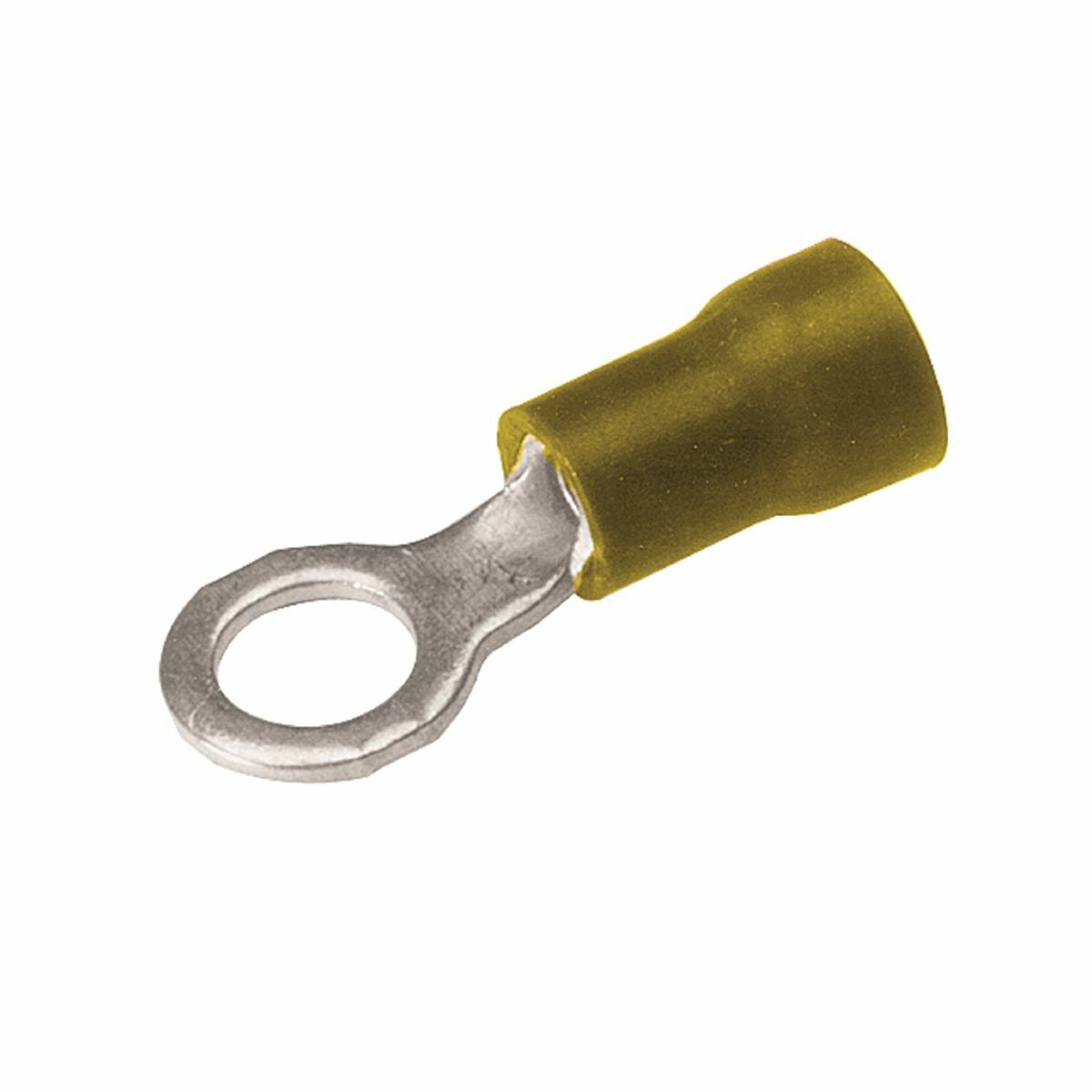

BURNDY TP108 Copper Terminal, Ring Tongue, 12-10 AWG, #6-#8 Stud, Vinyl Insulated

Product Description

The BURNDY TP108 is a copper terminal designed for use with wire sizes 12-10 AWG. This ring tongue connector features a connection suitable for #6 to #8 stud sizes. The terminal is insulated with vinyl for safety and reliability.

• Compatible with 12-10 AWG wire sizes.
• Made from high-quality electrolytic copper.
• Funnel entry design for easy wire insertion.

Product Highlights

The BURNDY TP108 is ideal for commercial and light-duty industrial control and power circuit applications. With its robust construction and design, it ensures reliable connectivity and is easy to install.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: TP108
• Material: Copper
• Insulation Type: Vinyl
• Maximum Conductor Size: 10 AWG
• Minimum Conductor Size: 12 AWG
• Voltage Rating: 600 V
• Temperature Rating: 105 DEG C Maximum
• Approval: UL, CSA, RoHS Compatible
