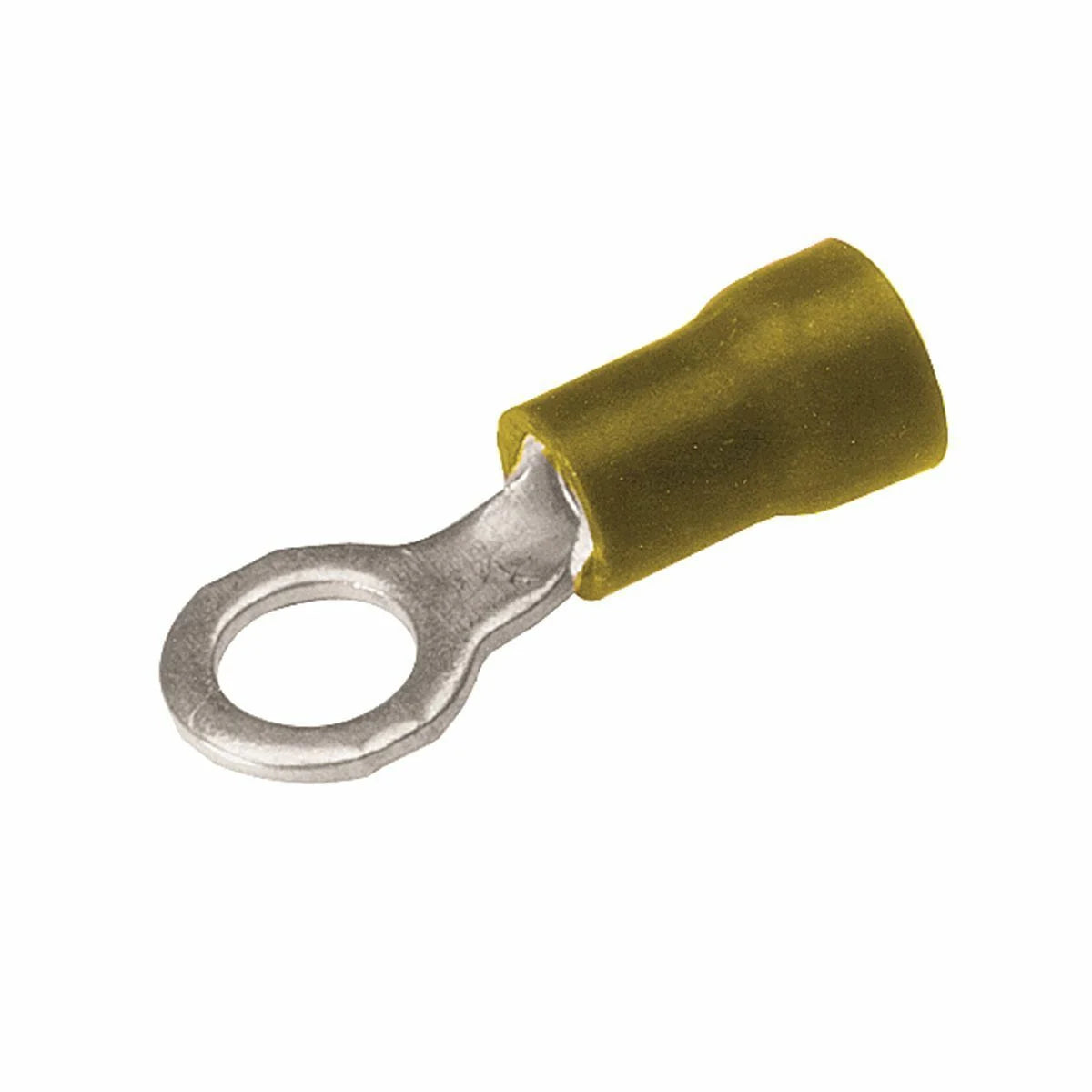

BURNDY TP1014 Copper Terminal, Ring Tongue, 12-10 AWG, 1/4 Stud, Vinyl Insulated, Tin Plated, Wire Strip Length: 19/64

Product Description

The BURNDY TP1014 is a copper terminal designed for ring tongue connections. It supports wire sizes from twelve AWG to ten AWG and has a stud size of one-quarter inch. This terminal features a vinyl insulation and is tin plated for corrosion resistance.

• Compatible with wire sizes from twelve to ten AWG
• Stud size: one-quarter inch
• Insulation type: PVC

Product Highlights

This terminal is ideal for use in commercial and light-duty industrial control and power circuit applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: TP1014
• Material: Copper
• Insulation: Yes (PVC)
• Country of Origin: United States
• Application: For commercial and light-duty industrial control and power circuit applications
• Temperature Rating: 105 degrees Celsius maximum
• Voltage Rating: 600 volts
• UPC: 781810711040
• Cross Reference Products: 10RC-14
