BURNDY TP1010FBG25 Cu Fork Tongue Terminal 600 V (10-12 AWG) Replacement MPN

Product Description

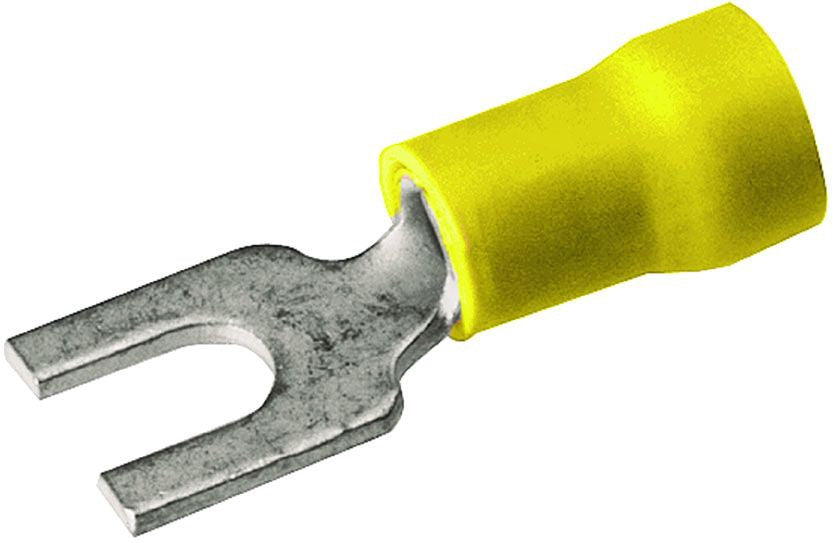

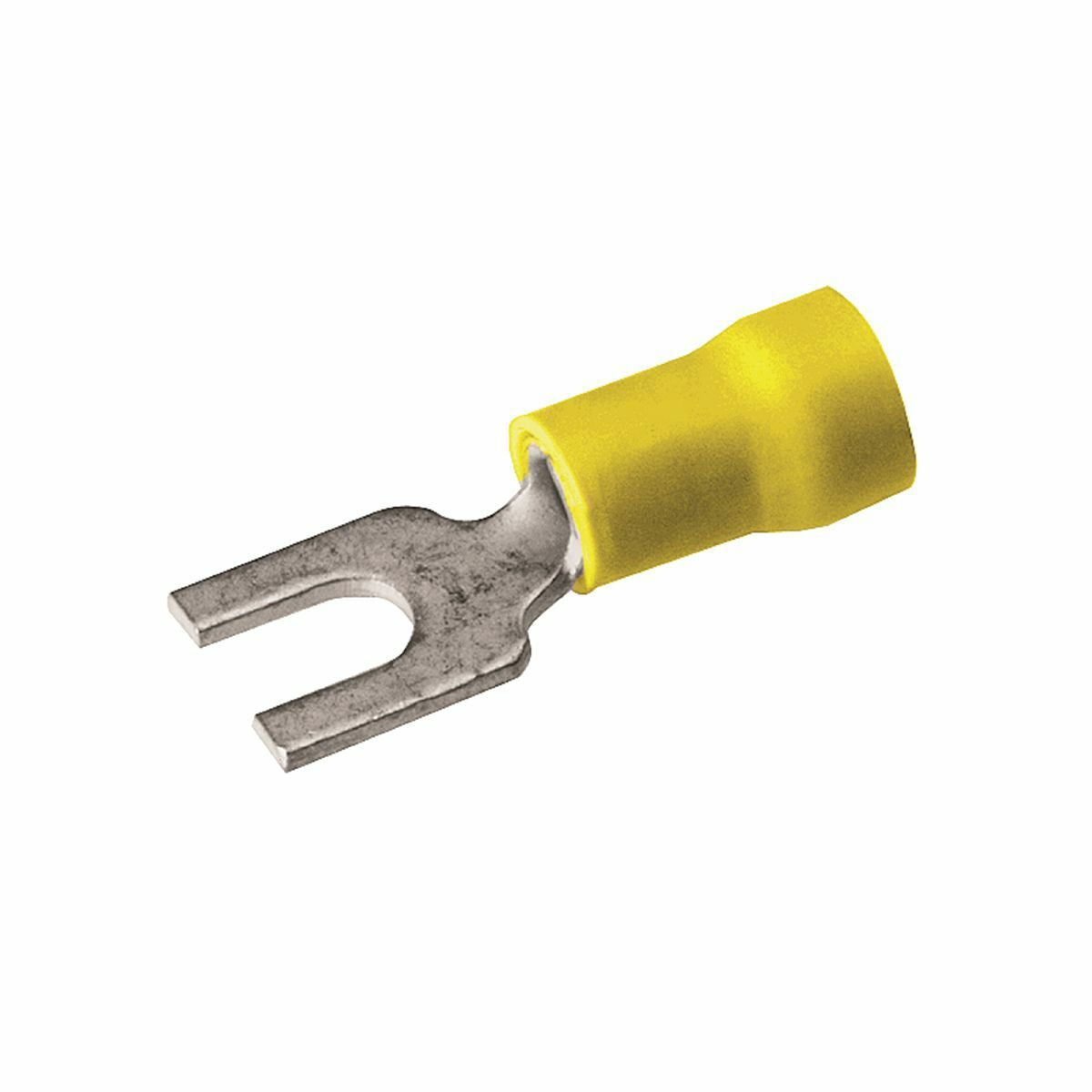

Burndy TP1010FBG25 is a fork tongue terminal designed for use with conductors sized ten to twelve AWG. This terminal features a smooth entry design, providing ease of installation. The product is rated for six hundred volts and is made of high-quality copper with electro-tin plating for durability.

• Compatible with ten to twelve AWG conductors
• Six hundred volts maximum rating
• Packaged in twenty-five units per bag

Product Highlights

The Burndy TP1010FBG25 provides reliable electrical connections across various applications in electrical and wiring management.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: TP1010FBG25
• Material: Copper
• Insulation Type: Vinyl Insulated
• Voltage Rating: 600 V
• Temperature Rating: 105 DEG C Maximum
• Insulation Diameter: 0.26 inches maximum
• Wire Strip Length: 19/64 inches
• Color Code: Yellow
• Standard: UL467
• Cross Reference Products: VSBR-10-10-P25, S12-10V-P, S12-8V-P
