Burndy TN10516 Nylon Ring Terminal For 12 - 10 AWG 5/16

Product Description

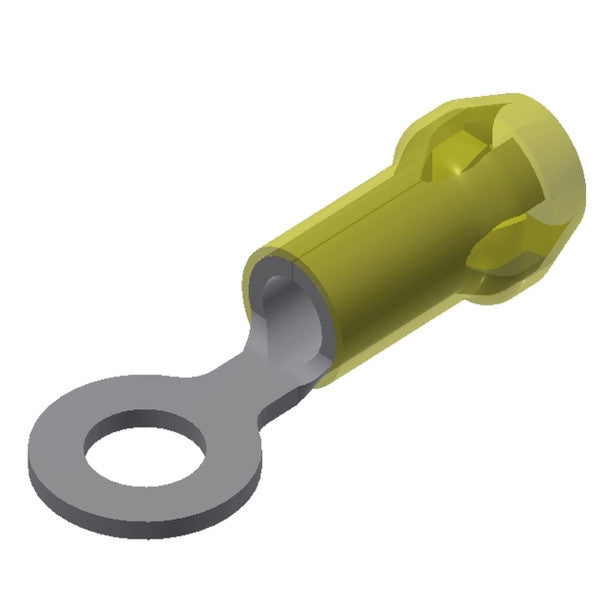

The BURNDY TN10516 is a nylon ring terminal designed for 12 - 10 AWG wires. It features an integral one-piece copper barrel/insulation grip and wire strain relief for improved physical strength. Pure electrolytic copper provides maximum conductivity and excellent crimp forming properties. Color-coded for easy wire size identification.

• For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
• Nylon Insulated
• Funnel Entry

Product Highlights

Nylon insulated ring terminal for secure wire connections in industrial, utility, and military applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: TN10516
• Country of Origin: US - United States

Technical Specifications

• Application: For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
• Catalog Number: TN10516
• Color Code: Yellow
• Connector Type: Ring Terminal
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Shrouded
• Insulation: Y
• Insulation Type: Nylon
• Material: Copper
• Military Specification: MS25036
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: INSULUG
• Trade Name: INSULUG
• Type: Ring Tongue
• Cable Insulation Diameter Maximum: 0.21 in
• Dimension - Bolt Size fraction: 5/16
• Dimension - L Length Overall inch: 1.32 in
• Dimension - Pad Width inch: 0.53 in
• Dimension - Strip Length inch: 11/32
• Dimension - Stud Size inch: 5/16
• Dimension - Z (inch): 0.37 in
• Voltage - Maximum: 600 V
• Conductor - Copper Solid Size: 12 AWG;11 AWG;10 AWG
• Conductor - Copper Solid Size Range: 12 AWG-10 AWG
• Conductor - Copper Str Size: 12 AWG;10 AWG
• Conductor - Copper Str Size Range: 12 AWG-10 AWG
• Conductor Range: #12 AWG to #10 AWG
• Conductor Size: 12 - 10 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL486
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121405
• Finish: Tin-Plated
• Standard: UL486
• Cable Diameter: 0.210 in.
• No. of Holes: 1
• Stud Size: 5/16 in.
• Color Family: Yellow
• Width: 0.53 in.
• Maximum Operating Temperature: 221 Degrees F
• Minimum Wire Size: 12 AWG
• Maximum Wire Size: 10 AWG
• Tongue Width: 0.53 in
• Contact Finish: Tin
• Contact Material: Copper
• Barrel Length: 0.95 in
• Barrel Outside Diameter: 0.21 in
• Barrel Style: Brazed Funnel Entry
• Hole Diameter: 0.34 in
• Hole Spacing: 0.27 in
