BURNDY SP18BG25 Copper Butt Splice 22 - 18 AWG 600 V

Product Description

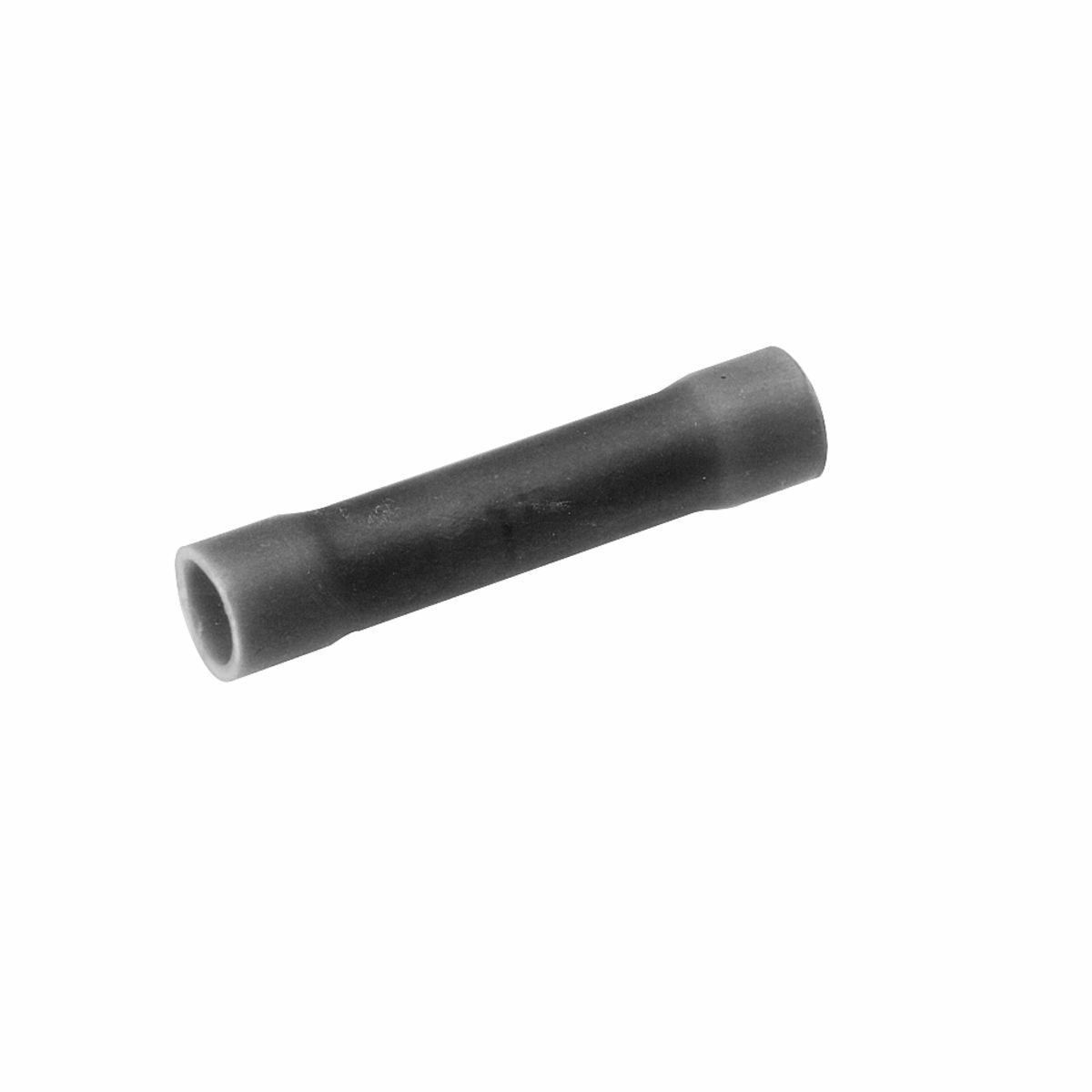

The BURNDY SP18BG25 is a copper butt splice designed for use with wire sizes ranging from twenty-two to eighteen AWG. This product is rated for six hundred volts and is tin plated for enhanced conductivity. It is suitable for heavy-duty applications, ensuring a secure and reliable connection.

• Compatible with 22 - 18 AWG wire sizes
• Rated for six hundred volts
• Tin plated copper for maximum conductivity

Product Highlights

The BURNDY SP18BG25 features an integral barrel insulation grip to provide maximum tensile strength and strain relief, preventing failures due to vibration. The product includes a smooth funnel entry for easy wire insertion and a window position locator that aids in correct crimping using a cycle ratchet tool.

Product Information

Standard Information

• Catalog Number: SP18BG25
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Sub Brand: INSULINK
• Country of Origin: United States
• Made in USA: Yes
• Application: For Heavy Duty Application Requirements
• Material: Copper
• Special Features: One-Piece Tin-Plated Copper Tubing, Integral Barrel/Insulation Grip, Smooth Funnel Entry, Provides Proper Tool/Connector Alignment, High Dielectric Strength Nylon Insulation
• Standard: UL467
• UPC: 781810486313
• GTIN: 00781810486313
• Item Type: SN
