Product Description

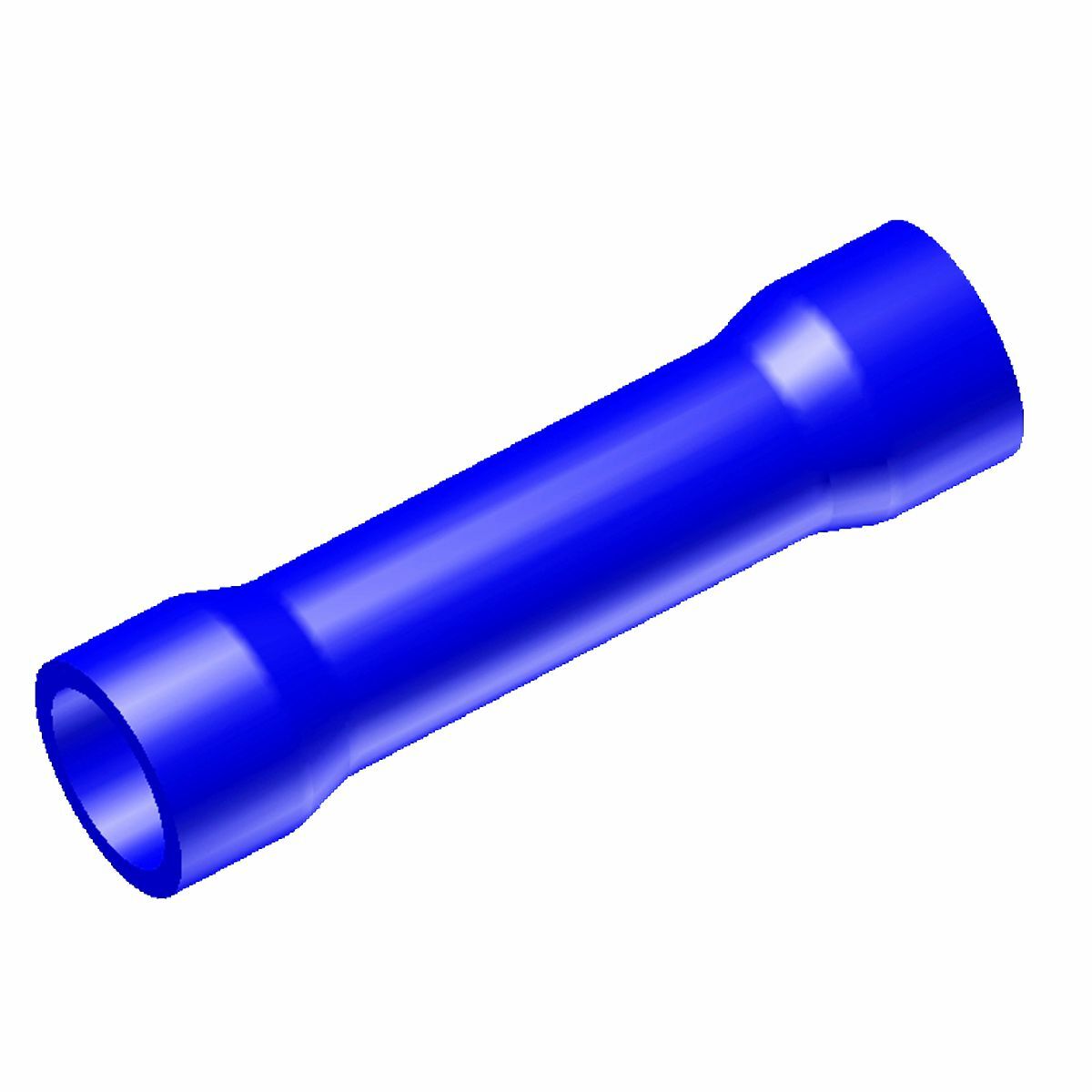

The BURNDY SP14 is a copper splice designed for electrical connections. It accommodates wires sized from sixteen to fourteen American Wire Gauge (AWG). This splice has a length of one inch and is insulated with vinyl for added safety.
- Compatible with 600 Volt cables
- Made of seamless electrolytic copper
- Features easy wire insertion through funnel entry
Product Highlights
The BURNDY SP14 splice ensures reliable connections in various applications. It is well-suited for both commercial and aircraft stranded copper uses and is ideal for maintaining high conductivity.
Product Information
Standard Information
-
Brand: BURNDY
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: SP14
-
Insulation Type: Polyvinyl Chloride (PVC)
-
Max Voltage Rating: 600 V
-
Temperature Rating: 105 Degrees C
-
Material: Copper
-
Wire Strip Length: 1/4 inch
-
UPC: 781810712016
-
Special Features: PVC Insulated, Funnel Entry for Easy Insertion, Electro-Tin Plated for Corrosion Resistance
