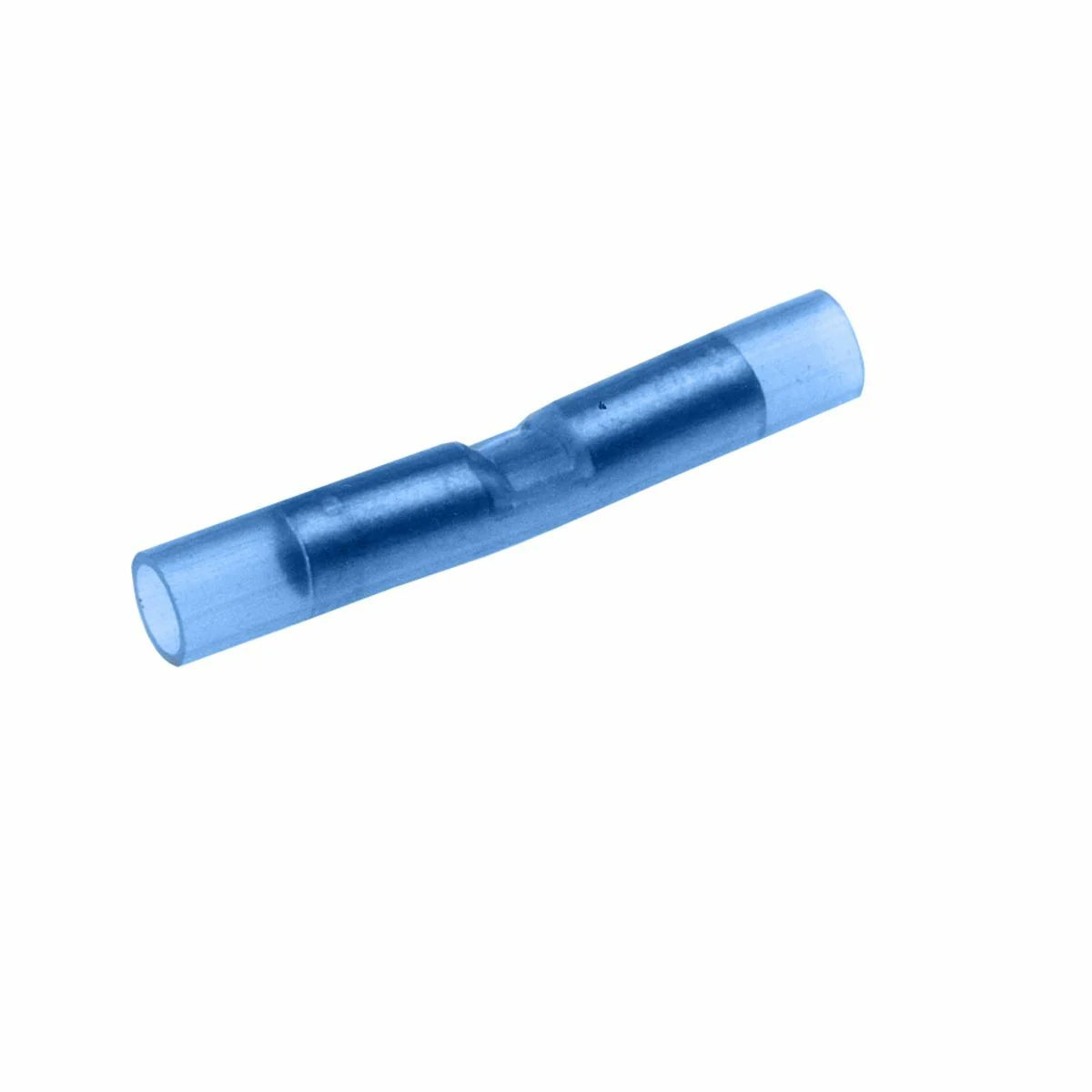

BURNDY SN14 Copper Butt Splice 16-14 AWG 1.25 Splice Length

Product Description

The BURNDY SN14 is a copper butt splice connector designed for wire termination. With a splice length of one and a quarter inches, it is suitable for use with stranded copper wire sizes from sixteen to fourteen AWG. This product features nylon insulation and can handle up to six hundred volts.

• Material: Copper
• Voltage Rating: 600 Volts
• Temperature Rating: 105 Degrees Celsius

Product Highlights

This connector is made from one-piece tin-plated seamless copper tubing that provides maximum tensile strength. The nylon insulation supports high dielectric strength and durability under oily conditions, promoting reliable performance in heavy-duty applications.

Product Information

Standard Information

• Catalog Number: SN14
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Cross Reference Products: B16-N, 2RB14
• Insulation Type: Nylon
• Wire Strip Length: 7/32 inches
• UPC: 781810736982
• Country of Origin: United States
• Application: For heavy-duty application requirements
• Special Features: Designed to support minimum vibration and strain relief
