Product Description

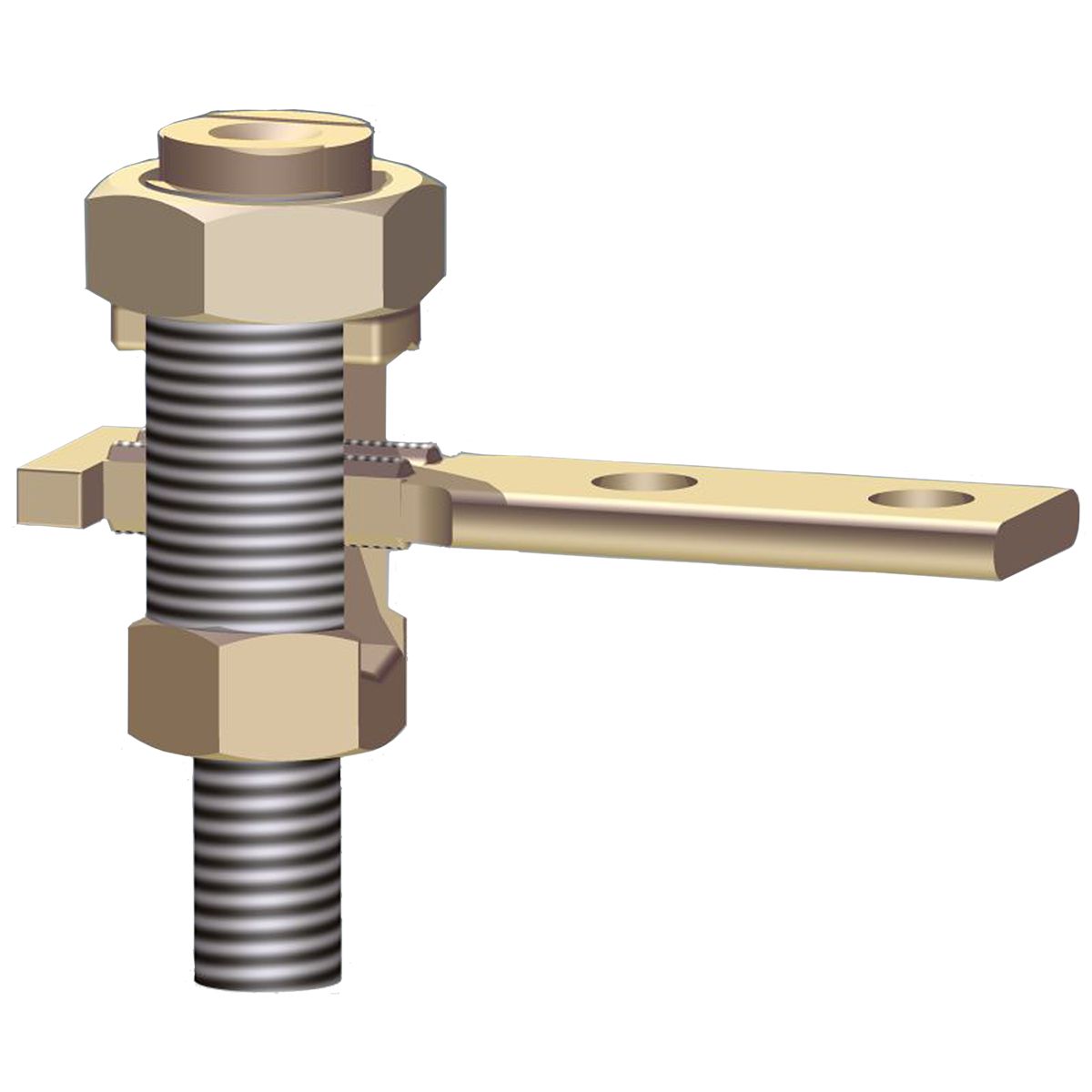

The Burndy SB252TC14 Handybug is a mechanical connector designed for efficient electrical connections. It accommodates a minimum conductor size of two AWG solid wire and a maximum of one AWG stranded wire. The construction utilizes tin-plated copper alloy, ensuring durability and effective conductivity. The connector’s pad size measures 0.87 inches in width, fitting various installation requirements. Each unit comes with a stud size of half an inch, making it compatible with standard installations.
- Minimum Conductor Size: 2 AWG Solid
- Maximum Conductor Size: 1 AWG Stranded
- Approval: UL Listed and RoHS Compliant
Product Highlights
The SB252TC14 Handybug simplifies the process of connecting conductors in various electrical applications. Its robust design adheres to industry standards for safety and reliability.
Product Information
Standard Information
-
Brand: Burndy
-
UPC: 78181067742
-
Status: NonStock
-
Minimum Order Quantity: 25 units
Technical Specifications
-
Material: Tin-Plated Copper Alloy
-
Installation Torque Rating: 480 Inch-Pound
-
Pad Size: 0.87 Inch Width
-
Stud Size: 1/2 Inch
