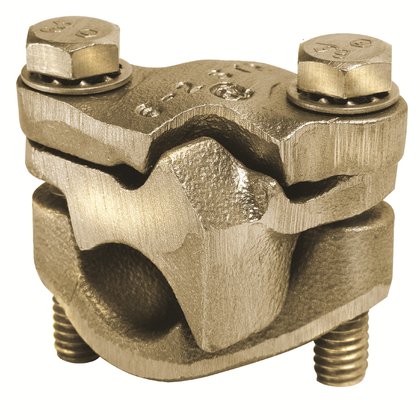

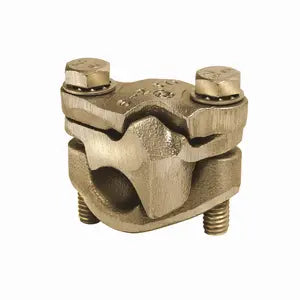

Burndy QPX2828Y Mech. Parallel Clamp Cu/Al, Mult. Configurations

Brand: BURNDY
SKU: QPX2828Y
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$165.90
$165.90
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY QPX2828Y is a VERSITAP™ mechanical parallel clamp for copper or aluminum cables, capable of Tee, Cross, Parallel, Butt, and Tap configurations. Only 10 connectors are required to accommodate conductor sizes from #6 Stranded to 1000 kcmil. Edges are rounded for easy taping.

  • For Use With Copper Or Aluminum Cable
  • Range-taking, only 10 connectors are required to accommodate conductor sizes from #6 Stranded to 1000 kcmil
  • Edges are rounded for easy taping

Product Highlights

The QPX2828Y universal clamp is suitable for various configurations and conductor sizes, ensuring versatile and reliable connections.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: QPX2828Y
  • Country of Origin: USA

Technical Specifications

  • Application: For Use With Copper Or Aluminum Cable
  • Catalog Number: QPX2828Y
  • Connector Type: Universal Clamp
  • EU RoHS Indicator: Yes
  • Installation Torque Recommended in-lb: 250 LBS/in
  • Material: Copper Alloy
  • Material - Hardware: DURIUM™ Silicon Bronze
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: VERSITAP
  • Trade Name: VERSITAP™
  • Type: QPX-Y, Universal
  • UPC: 781810342404
  • UPC 14 Digit GTIN: 00781810342404
  • Dimension - Height inch: 2.00 in
  • Dimension - L Length Overall inch: 2.00 in
  • Dimension - Width inch: 2.14 in
  • Conductor - AL Str Run: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - AL Str Run Range: 1/0 AWG-4/0 AWG
  • Conductor - AL Str Tap: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - AL Str Tap Range: 1/0 AWG-4/0 AWG
  • Conductor - Copper Str Run: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Run Range: 1/0 -4/0 AWG
  • Conductor - Copper Str Tap: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Tap Range: 1/0 -4/0 AWG
  • Conductor Type: AL C Str-Run CU C Str-Run AL C Str-Tap CU C Str-Tap
  • Stud Size: 3/8 in
  • Part Number: QPX2828Y
  • Brand: Burndy
  • Pack Size: 1.0000
  • UOM: E
  • UNSPSC Code: 39120000
  • Manufacturer Part Number: QPX2828Y
  • Unit of Measure: EA
