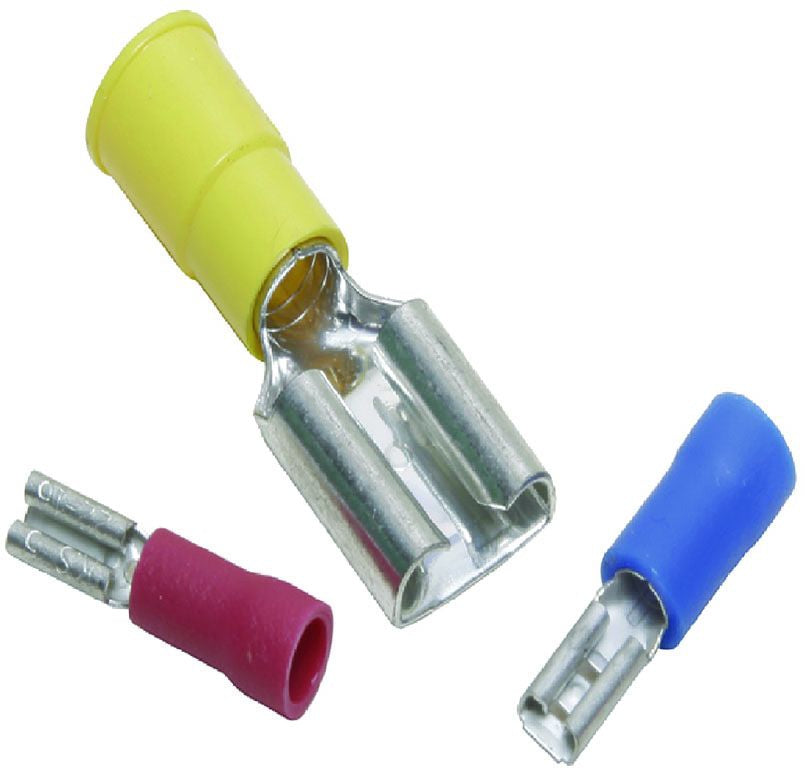

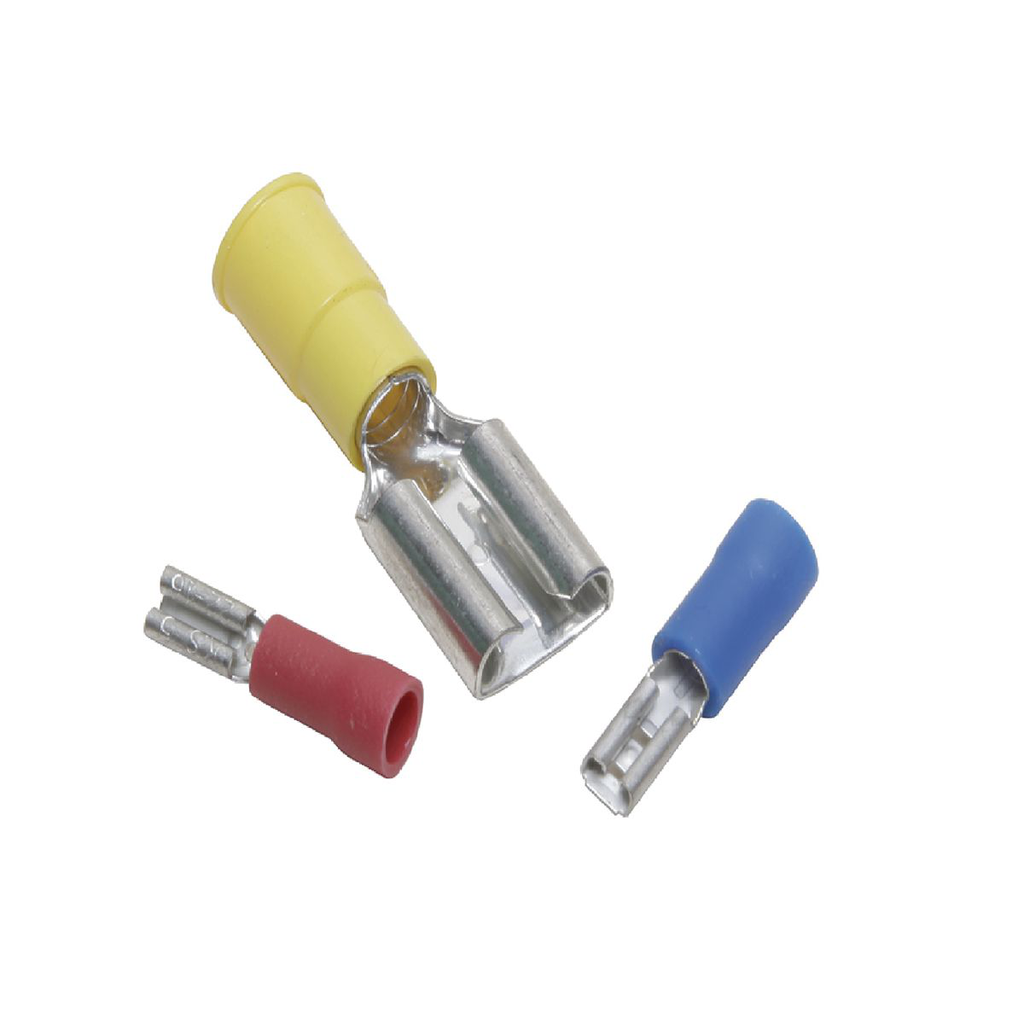

BURNDY QP14F25X03D PVC PLASTIC INSUL FEMALE DISCONNECT 16-14

Product Description

The BURNDY QP14F25X03D is a PVC plastic insulated female disconnect terminal designed for electrical connections. It is suitable for use with conductors ranging from 14 to 16 AWG. This connector features a butted seam construction, ensuring durability under various conditions.

• Compatible with 14 to 16 AWG wire.
• Insulated design for safe electrical connections.
• Easy to install with a funnel entry barrel for quick wire insertion.

Product Highlights

This disconnect terminal is made of brass material with a vinyl insulation type. It is designed for quick and easy connections, ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: BURNDY
• Part Number: QP14F25X03D

Technical Specifications

• Type: Female Disconnect
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Insulation: Vinyl
• Temperature Rating: 105°C
• Material: Tin Plated Brass
• Tab Size: 0.25 x 0.032 inches
• Catalog Number: QP14F25X03D
