Burndy QGFL39B1 Substation - Copper Bar Tap 350-750 kcmil

Product Description

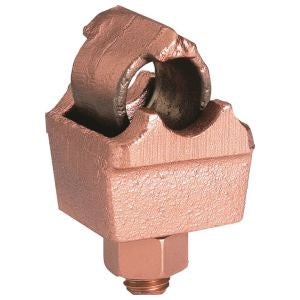

The BURNDY QGFL39B1 is a high copper alloy BARTAP™ designed for joining a range of cable to bar or pad. This bartap accommodates cable sizes from 350 to 750 kcmil and is designed for one-wrench installation, simplifying the setup process in substation applications.

• High copper alloy BARTAP™ for joining a range of cable to bar or pad
• 1-wrench installation
• Suitable for substation applications

Product Highlights

The BURNDY QGFL39B1 BARTAP™ ensures secure and efficient connections in substation environments.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: QGFL39B1
• Country of Origin: MX - Mexico

Technical Specifications

• Application: Substation
• Catalog Number: QGFL39B1
• Connector Type: Bus Bar Clamp and Accessories
• EU RoHS Indicator: Yes
• Material: Copper Alloy
• Material - Hardware: DURIUM Silicon Bronze
• Plated: N
• Plating Type: Unplated
• Sub Brand: BARTAP
• Trade Name: BARTAP
• Type: QGFL
• UPC: 781810005880
• UPC 14 Digit GTIN: 00781810005880
• Dimension - B Length fraction: 2-1/4 in
• Dimension - B Length inch: 2.25 in
• Dimension - Height fraction: 3-1/4 in
• Dimension - Height inch: 3.25 in
• Dimension - Height mm: 82.6 mm
• Dimension - Width fraction: 1-3/4 in
• Dimension - Width inch: 1.75 in
• Dimension - Width mm: 44 mm
• Conductor - Copper Str Size: 350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
• Conductor - Copper Str Size Range: 350 kcmil-750 kcmil
• Conductor Type: CU C Str-Size CU C Solid-Size
• Certification - CSA Approved: No
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: Yes
• Certification - UL Recognized: No
• Standards - RoHS Compliance Status: EX
• UL Listed: No
• ECCN: EAR99
• Series: QGFL
• UNSPSC: 39121456
• Standards: California Proposition 65
