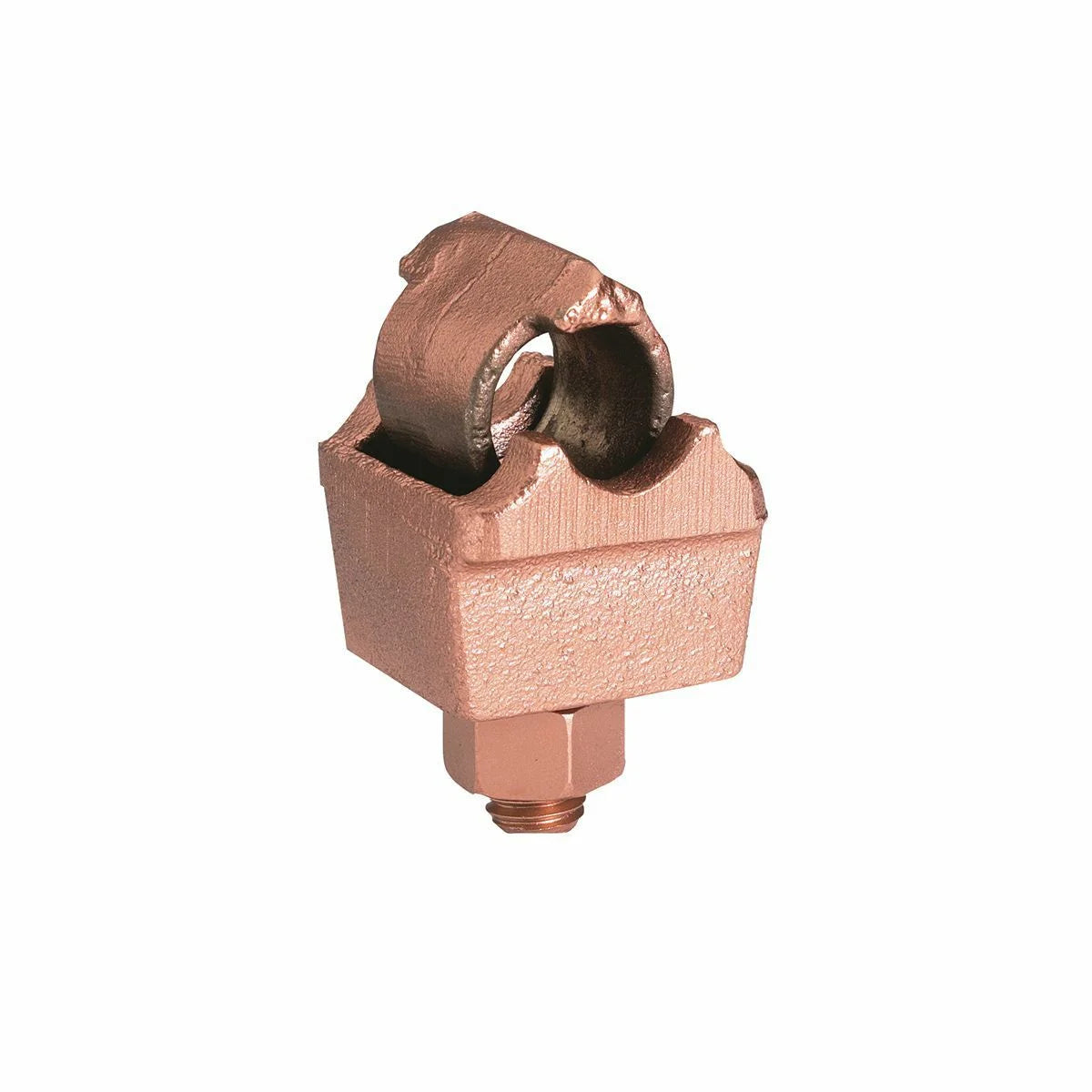

BURNDY QGFL29B1 Bartap 6 Str. - 250 Kcmil Cable To Flat 1/4 IN Thickness

Product Description

The BURNDY QGFL29B1 is a cable tap designed for effective electrical connections. It is suitable for use with copper cables needing to join to a flat bar or pad. This product is known for its durability and simple installation process.

• Features high copper alloy for superior conductivity.
• Can be installed side by side or in line on NEMA drilled bar.
• One-wrench installation simplifies the setup process.

Product Highlights

Designed for reliable connections in substations, the BURNDY QGFL29B1 offers both high performance and ease of use.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810325124
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: QGFL29B1
• Material: Copper Alloy
• Application: Substation
• Wire Type: Copper
• Conductor Clamping Hardware: 1/2 IN
• Installation Torque: 480 IN-LB
• Bar Thickness: 1/4 IN
• Dimensions: 2-5/8 inches L x 1-3/8 inches W x 1-1/2 inches D
