Burndy QA8CB QIKLUG Heavy Duty Copper Terminal #10

Product Description

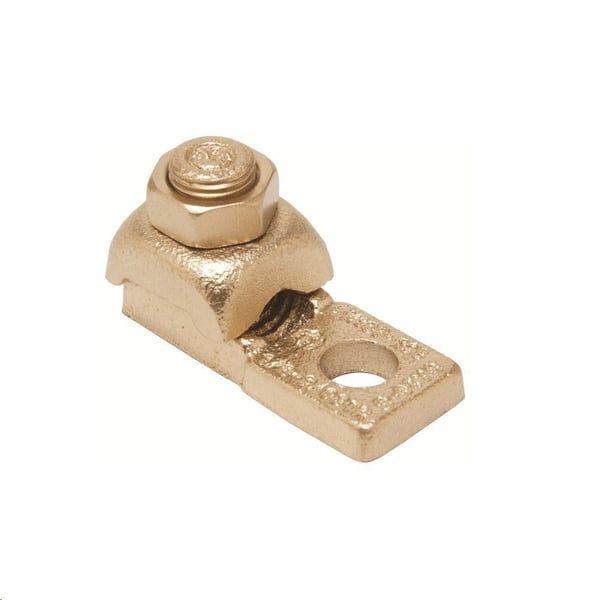

The BURNDY QA8CB QIKLUG is a heavy-duty copper lug with a single hole and #10 stud. This terminal is designed for joining cables to equipment pads or bars. Each element accommodates a wide range of cable sizes and features one-wrench installation. It is suitable for 14 AWG Sol to 8 AWG Str copper conductors.

• Compact size
• High copper alloy terminal
• One-wrench installation

Product Highlights

The BURNDY QA8CB is a reliable choice for connecting copper cables to equipment, offering ease of installation and a durable copper alloy construction.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: QA8CB

Technical Specifications

• Catalog Number: QA8CB
• Connector Type: Single Clamp
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Hexagonal Bolt
• Plated: N
• Plating Type: Unplated
• Sub Brand: QIKLUG
• Trade Name: QIKLUG
• Type: Bolted Lugs & Terminals
• Dimension - Bolt Size fraction: #10
• Dimension - D inch: 0.56 in
• Dimension - Height fraction: 11/16
• Dimension - Height inch: 0.69 in
• Dimension - Height mm: 17.5 mm
• Dimension - Hole Size fraction: 7/32
• Dimension - Hole Size inch: 0.22 in
• Dimension - Hole Size mm: 6 mm
• Dimension - L Length Overall mm: 35 mm
• Dimension - Length Overall inch: 1.38 in
• Dimension - N inch: 0.28 in
• Dimension - Pad Width inch: 0.56 in
• Dimension - Stud Size inch: #10
• Dimension - Width mm: 14 mm
• Weight: 0.08 lb
• Conductor - Copper Solid Size: 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG
• Conductor - Copper Solid Size Range: 14 AWG-8 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
• Conductor - Copper Str Size Range: 14 AWG-8 AWG
• Conductor Size: 14-8 AWG
• Conductor Type: CU C Str-Size CU C Str Navy-Size
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• UL Listed: Yes
• Brand: BURNDY
• MFG #: QA8CB
• Number of Bolt Holes: 1
• Stud Size: #10
• Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
• Series: QA Series
• Hole Size: 7/32 in
• Contact Gender: Female
• Wire/Cable Gauge: 8 AWG
