Burndy QA40-B 1-Hole Heavy Duty Copper Terminal 600-800 kcmil (QA40B)

Product Description

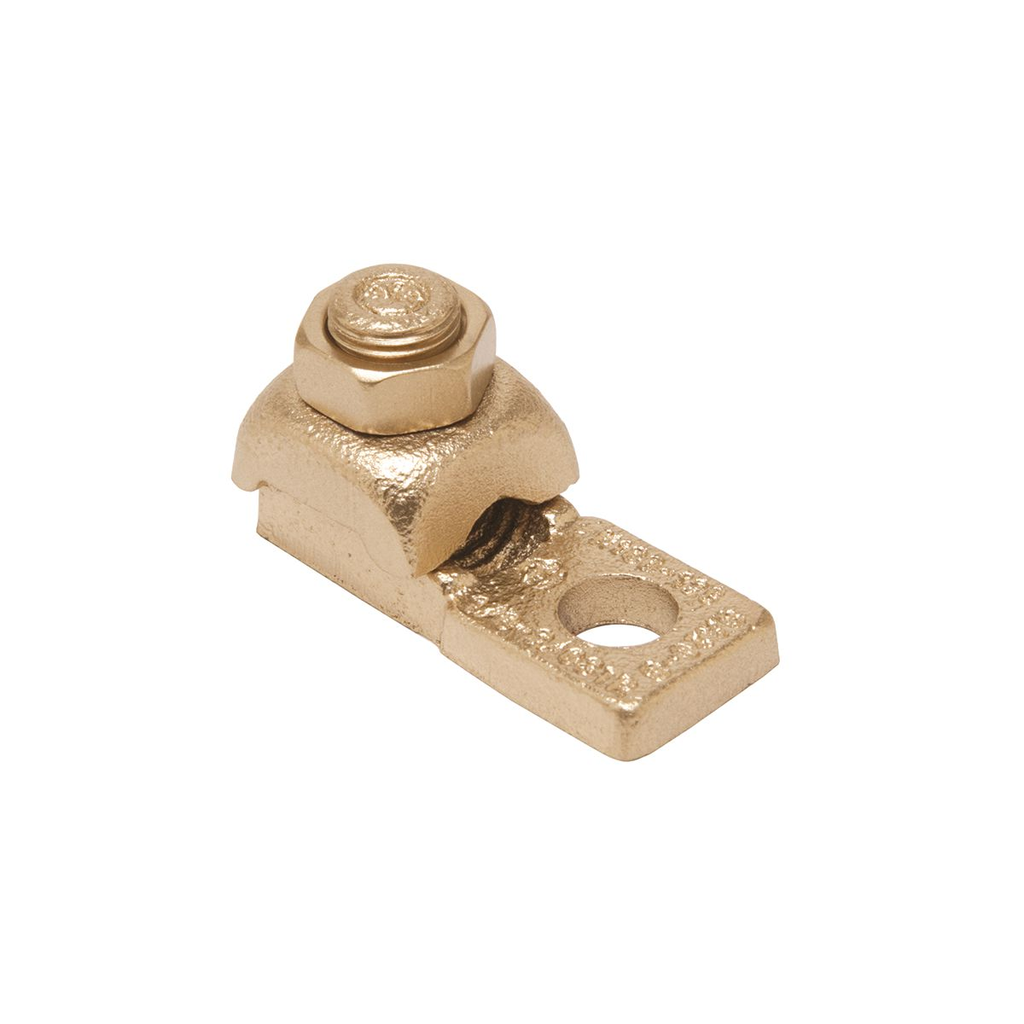

Burndy QA40-B is a heavy-duty copper mechanical terminal (QIKLUG) designed to join 600–800 kcmil copper conductors to equipment pads or bars using a 5/8-inch stud. The single-hole lug uses a single clamping element for one-wrench installation, is unplated copper, UL 486A-486B listed, and has a recommended installation torque of 500 in-lb and a temperature rating of 194°F.

• Accommodates 600–800 kcmil copper conductors with a 5/8-inch stud and single clamping element
• Unplated copper construction, QIKLUG series; UL 486A-486B listed and RoHS exempt
• Recommended installation torque 500 in-lb; straight tongue with standard saddle conductor entry for single conductor

Product Highlights

Heavy-duty unplated copper lug for 600–800 kcmil conductors, 5/8-inch stud, UL 486A-486B listed

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: QA40-B
• Country of Origin: US

Technical Specifications

• Brand: Burndy
• Manufacturer Part Number: QA40-B
• Catalog Number: QA40B
• Trade Name: QIKLUG
• Type: Bolted lugs & terminals
• Material: Copper (unplated)
• Connector Type: Single clamp
• Number of Holes: 1
• Conductor Count: 1
• Conductor Size: 600-800 kcmil
• Conductor Type: Copper stranded
• Stud Size: 5/8 in
• Bolt Size: 5/8 in
• Screw Type: Hexagonal bolt / Stud hex nut
• Conductor Entry: Standard (saddle)
• Tongue Type: Straight
• Installation Torque (in-lb): 500
• Temperature Rating (°F): 194
• Voltage Rating (V): 600
• UL Listed: Yes
• Industry Standards: UL 486A-486B
• RoHS Status: Exempt
• Length Overall (in): 3.69 in (94 mm)
• Pad Width (in): 1.62 in
• Height (in): 2.31 in (58.7 mm)
• Hole Size (in): 0.69 in (11/16 in)
• Hole Size (mm): 18 mm
• UPC: 781810316924
• GTIN (14 digit): 00781810316924
• Package Quantity: 1
