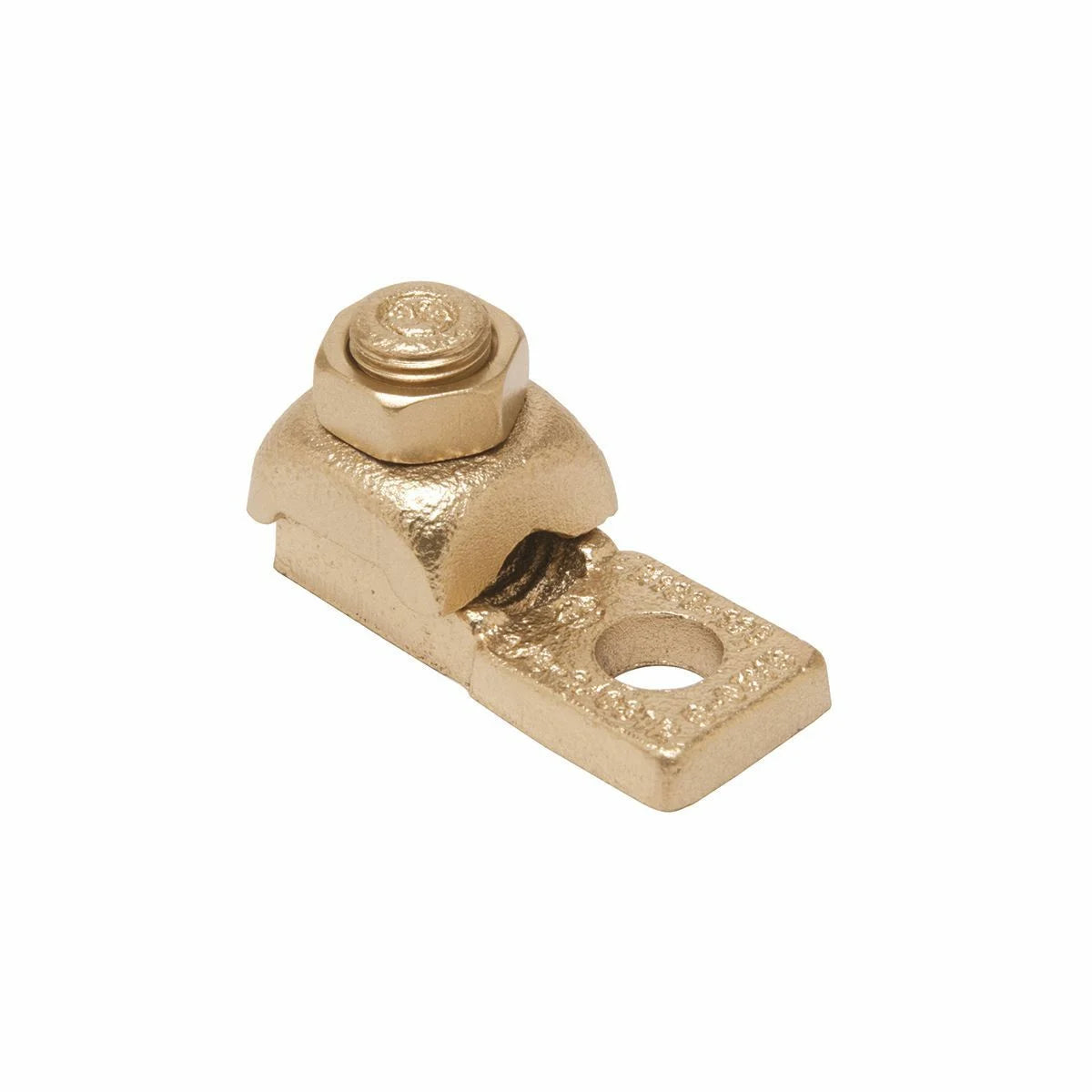

BURNDY QA26B Copper Terminal Heavy Duty 1 Hole 1/0-2/0 AWG Str 3/8 Stud 1 Screw

Product Description

The BURNDY QA26B is a heavy-duty copper terminal used to connect cables to equipment pads or bars. This terminal accommodates conductors between 1/0 and 2/0 AWG (stranded copper) and has a stud/bolt hole size of three-eighths inches.

• Heavy-duty design for reliable connections
• Fast one-wrench installation
• UL listed for safety and compliance

Product Highlights

This terminal is suitable for a variety of applications that require strong and reliable cable connections, especially in electrical installations.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: QA26B
• Material: Copper
• Application: For joining a wide range of cable to equipment pads or bars
• Standard: UL 486A-486B
• Temperature Rating: 194 degrees
• Stud/Bolt Hole Size: 3/8 inches
• Length: 2 inches
• Installation Torque: 180 IN-LB
• Dimensions: Width 13/16 inches, Height 1-3/16 inches
• Country of Origin: Mexico
• UPC: 781810314128
