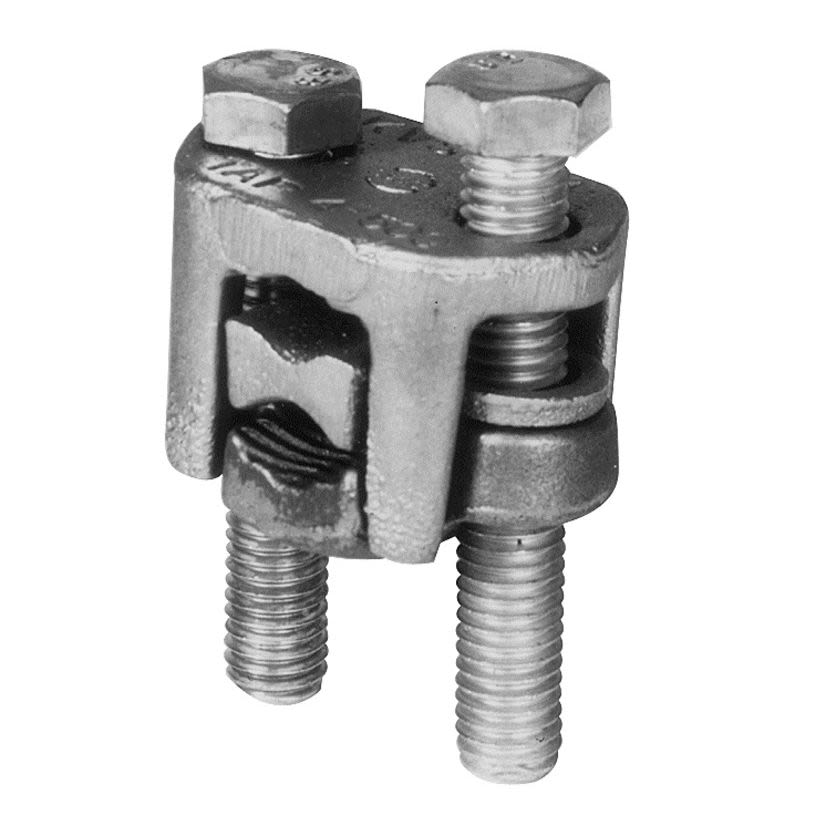

Burndy KVSW28 Mechanical Connector with Spacer Bar

Brand: BURNDY
SKU: KVSW28
Availability: In Stock

Ships same day if ordered by 12 pm
$99.78
$99.78
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY KVSW28 is a mechanical connector with a CU alloy spacer that separates run and tap conductors. Recommended torque is 250 LBS. This compact, 2-piece connector is made from high strength, high copper alloy, making it suitable for heavy-duty connections. It provides high contact pressure, confines conductor strands, and assures a vibration-proof connection.

  • High copper alloy spacer bar separates run and tap conductors
  • Provides high contact pressure, confines conductor strands and assures vibration-proof connection
  • Longer peened bolt permits swivel action for easier installation

Product Highlights

The KVSW28 mechanical connector is ideal for copper and copperweld conductors, ensuring secure and reliable electrical connections.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: KVSW28
  • Country of Origin: MX - Mexico
Technical Specifications
Application
For Copper And Copperweld Conductors
Catalog Number
KVSW28
EU RoHS Indicator
Yes
Material
Copper
Plated
N
Plating Type
Unplated
Sub Brand
OKLIP
Trade Name
OKLIP
Type
2-Piece Mechanical Grounding Connector
UPC
781810066553
UPC 14 Digit GTIN
00781810066553
Dimension - Height inch
2.50 in
Dimension - Height mm
63.50 mm
Dimension - Length Overall inch
1.04 in
Dimension - Stud Size inch
3/8 in
Dimension - Width inch
1.67 in
Conductor - Copper Solid Tap
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Tap Range
6 AWG-4/0 AWG
Conductor - Copper Str Run
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Run Range
1/0 str. - 4/0 str.
Conductor - Copper Str Tap
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Tap Range
6 sol. - 4/0 str.
Conductor Type
CU C Str-Size
Use With
Copper Conductors, Copper Weld Conductors
Accommodates
Run and Tap Conductors
UNSPSC
39121408
Part Number
KVSW28
Manufacturer
Burndy
Brand
Burndy
Mechanical Connector with Spacer Bar
Mechanical Connector with Spacer Bar
Conductor Size Range
1/0 to 4/0 AWG
High Strength Copper Alloy
High Strength Copper Alloy
Spacer Material
Copper Alloy
Pieces
2-Piece Design
Recommended Torque
250 lbs
Heavy Duty Electrical Connections
Heavy Duty Electrical Connections
Mounting
Mechanical Compression
MPN
KVSW28
Model
115655
Series
KVSW
Conductor
Copper/Solid Conductor
Conductor Size
1/0 to 4/0, 6 to 4/0 AWG
Plating
Plain Copper Plated
